P-2812HNU-51c
802.11n VDSL2/ADSL2+
VoIP IAD
P-2812HNU-51c
802.11n VDSL2/ADSL2+
VoIP IAD
System Specifications
VDSL Compliant
• ITU-T G.993.1 (VDSL1)
• ITU-T G.993.2 (VDSL2)
• ITU-T G.994.1 (G.hs)
• ITU-T G.997.1
• Support VDSL band plan, Annex A, Annex B, 997, 998
• Support VDSL profiles, 8a/b/c/d, 12a/b and 17a
ADSL Compliant
• G.992.1 (G.dmt) Annex A compliant
• G.992.2 (G.lite), Annex A compliant
• ANSI T1.413 compliant
• G.992.3 (ADSL2) compliant, Annex A, L and M
• G.992.5 (ADSL2+) compliant, Annex A and M
(Annex M support 2 Mbps for upstream)
Wireless
• IEEE 802.11n compliance
• Frequency: 2.4 GHz
• Data rate: 300 Mbps
• Backward compatible to 802.11b/g
• Static and dynamic WEP key (64/128 bit)
• WPA/WPA-PSK
• WPA2/WPA2-PSK
• MAC address filter (up to 32)
• Auto channel selection
• Multiple SSID (up to 4)
• WDS (Wireless Distribution System)
• Multicast traffic pass-through
• WPS (Wireless Protected Setup)
Voice Functionality
• SIP (RFC 3261) version 2
• SDP (RFC 2327)
• RTP (RFC1889)
• RTCP (RFC1890)
• Codec: G.711 (PCM A-law or µ-law selectable), G.729a/b
• Echo cancellation: G.168, VAD, silence suppression, CNG,
dynamic jitter buffer
• DTMF detection and generation
• DTMF: in-band and out-of-band (RFC 2833), (SIP INFO)
• Modem and fax tone detection and pass-through
• DNS SRV
• Flexible dial plan (RFC3525 section 7.1.14)
• Session timers (Draft-IETF-SIP-Session-Timer)
• Wideband voice (G.722)*
Phone Features
• Message waiting indicator (RFC 3842)
• Caller ID
• T.38 fax relay
• FAX relay: transparent fax relay over G.711
• IVR (Interactive Voice Response)
• Call waiting
• Call hold
• Early media
• Flash hook timer
• Call transferring (blind and attended transfer)
• Call forwarding
• Three way conference
• Abbreviated dialing (speed dialing)
• Shuttle enquiry call (second call)
• DND (Do NOT Disturb)
• Call block
• CLIP (Calling Line Identification Presentation)
• CLIR (Calling Line Identification Restriction)
• COLP (Connected Line Identification Presentation)
• COLR (Connected Line Identification Restriction)
• Conference call w/media server
• Caller ID generation/detection w/DTMF & FSK format
• Internal call
• Speed dial (phone book)
VLAN/QoS
• Support 802.1Q port/tag based VLAN
• Support 802.1P priority bit
• Support flexible traffic classification by LAN, Eth Type,
source IP, and …etc.
• Support 4 priority queue w/strict priority scheme
• Freely assign the classified traffic to queues, VLAN, or
PVC
• Per VLAN IPR (IP Routing), (Max 4)
• Per VLAN PPPoE, (Max 4)
• FXS has given highest priority
• Application bind with dedicated PVC
• IP layer QoS (media bandwidth management) for 3-play
• TOS/DiffServ
• VLAN on Ethernet WAN
Management
• Web
• CLI (Command Line Interpreter)
• SSH (Secure Shell function)
• Remote management for Web/Telnet/FTP
• Access control for remote management
• Firmware upgrade via Web/FTP/TFTP
• Text based configuration
• DSL forum TR-069
• DSL forum TR-064*
• 802.1ag (Connectivity fault management)*
Hardware Specifications
• WAN:
- one RJ-11 connector for P-2812HNU-51c over
POTS
- one RJ-45 connector for Giga-Ethernet WAN port
• LAN: four 10/100/1000M Auto MDI/MDI-X RJ-45
interfaces
• Wireless: one external 2 dBi antenna and one 2 dBi
internal antenna
• Button: Reset, WPS/WLAN on/off
• A hardware switch for DSL/Ethernet WAN
• 2 FXS POTS interface
• 2 USB 2.0 host interface (for file sharing/3G backup*/
printer server*)
• Status LEDs indicators: POWER, ETHERNET, DSL,
INTERNET, WLAN, WAN, USB, Phone
• Power: 12 V DC 1.5A
Physical Specifications
• Item weight: 555 g (1.23 lb)
• Item dimensions
165 (W) x 65 (D) x 242 (H) mm
(6.49 (W) x 2.56 (D) x 9.53 (H) inches)
• Item and package weight: 1,177 g (2.6 lb)
• Package dimensions:
356 (W) x 197 (D) x 107 (H) mm
(14.01 (W) x 7.75 (D) x 4.21 (H) inches)
Environmental Specifications
Operating Environment
• Temperature: 0°C ~ 40°C
• Humidity: 20% ~ 85% RH (non-condensing)
Storage Environment
• Temperature: -20°C ~ 60°C
• Humidity: 20% ~ 90% RH (non-condensing)
Certification
EMC
• EN55022 Class B
• EN61000-3-2: 2000
• EN61000-3-3: 1995 + A1: 2001
Safety
• EN 60950-1: 2001 + A11
• IEC 60950-1: 2001
* Firmware upgradeable for future enhancement.
Rear Panel
Specifications

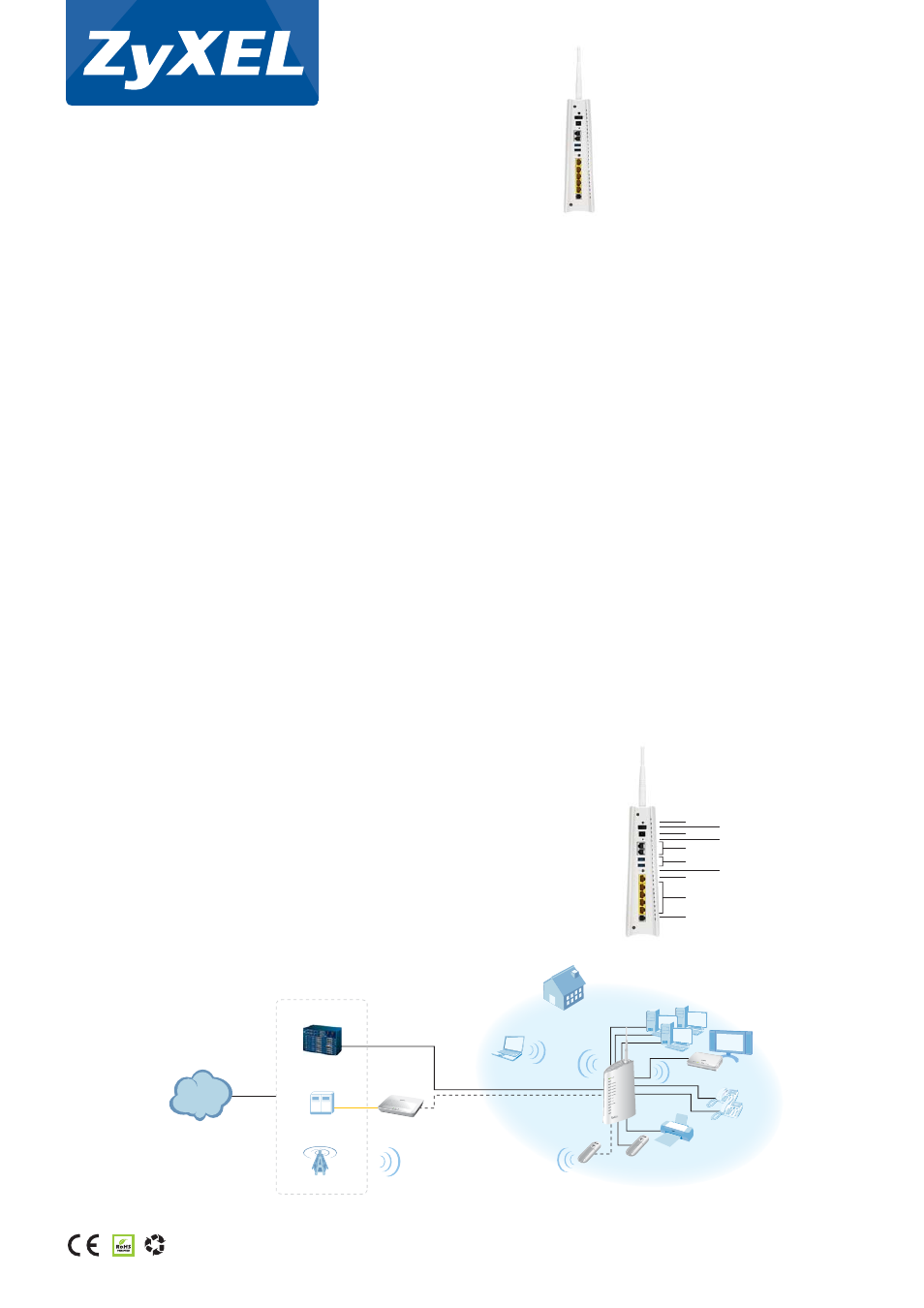

Application Diagram
DSL
USB
WAN
PHONE
RESET
DSL/WAN
ON/OFF
POWER
WPS
ETHERNET
