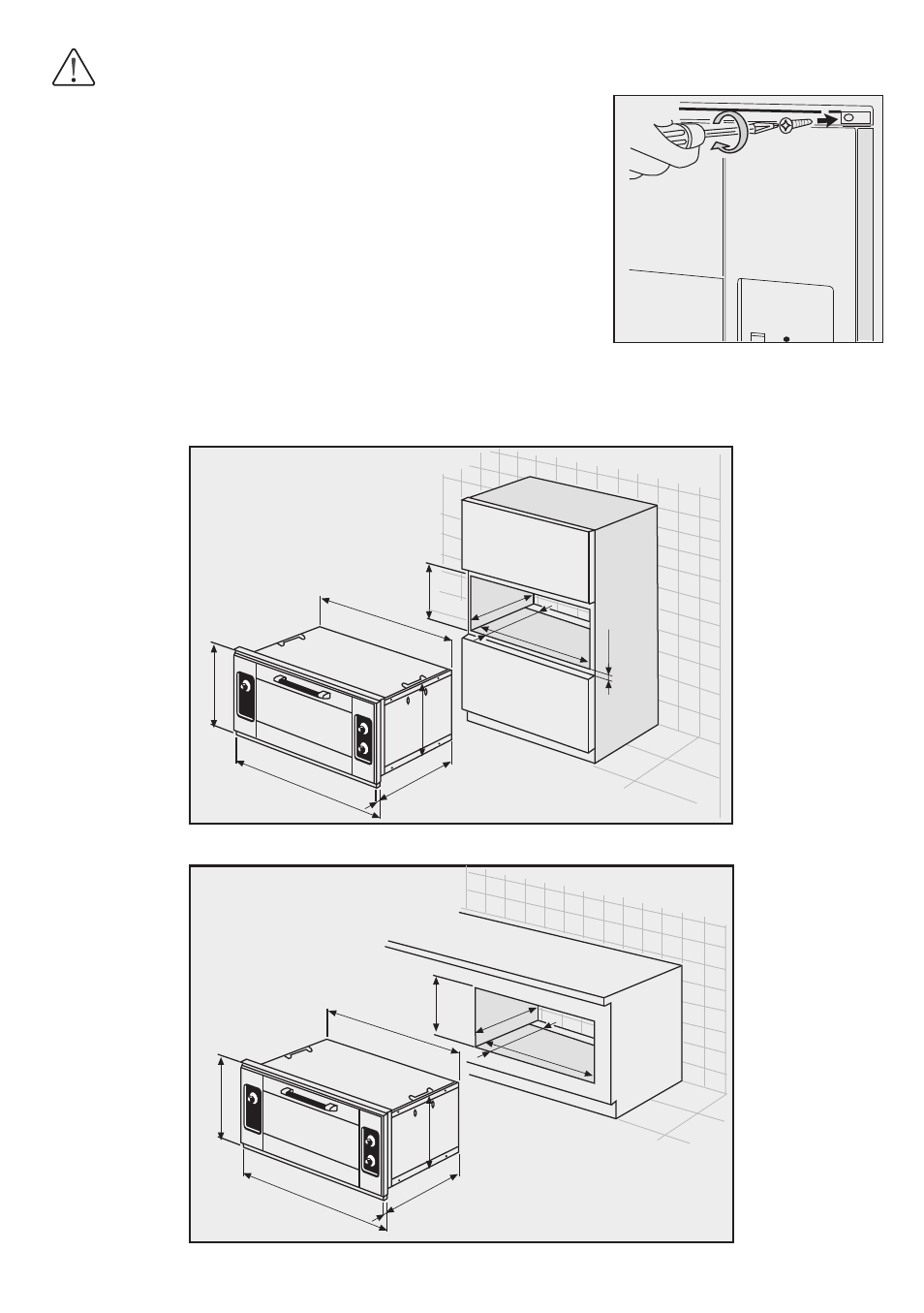

Fig. 10
Important
The housing should not be free standing, but secured to the wall
or/and adjacent fittings and housing, do not lift it by the door
handle. Do not force the oven into the housing using the open
door as a lev and never exercise excessive pressure on the open
door. The oven should be secured to the housing by nº 4 fitting
screws in holes of the frame as shown in fig. 10.
Preparation of the cabinet
No specific openings are necessary for ventilation in the cabinet
because this appliance is equipped with a cooling fan drawing
air across the slots in the top and bottom of the unit.
It is enough to respect the dimensions of the housing as in the
fig. 11 and 12.
Fig. 11
460 min
550 min.
860 min
855
455
894 545
474
20
450
15min
Building-in
Fig. 12
460 min 855
455
894 545
474
20
860 min
550 min.
450
Building under
10
