ENGLISH

3

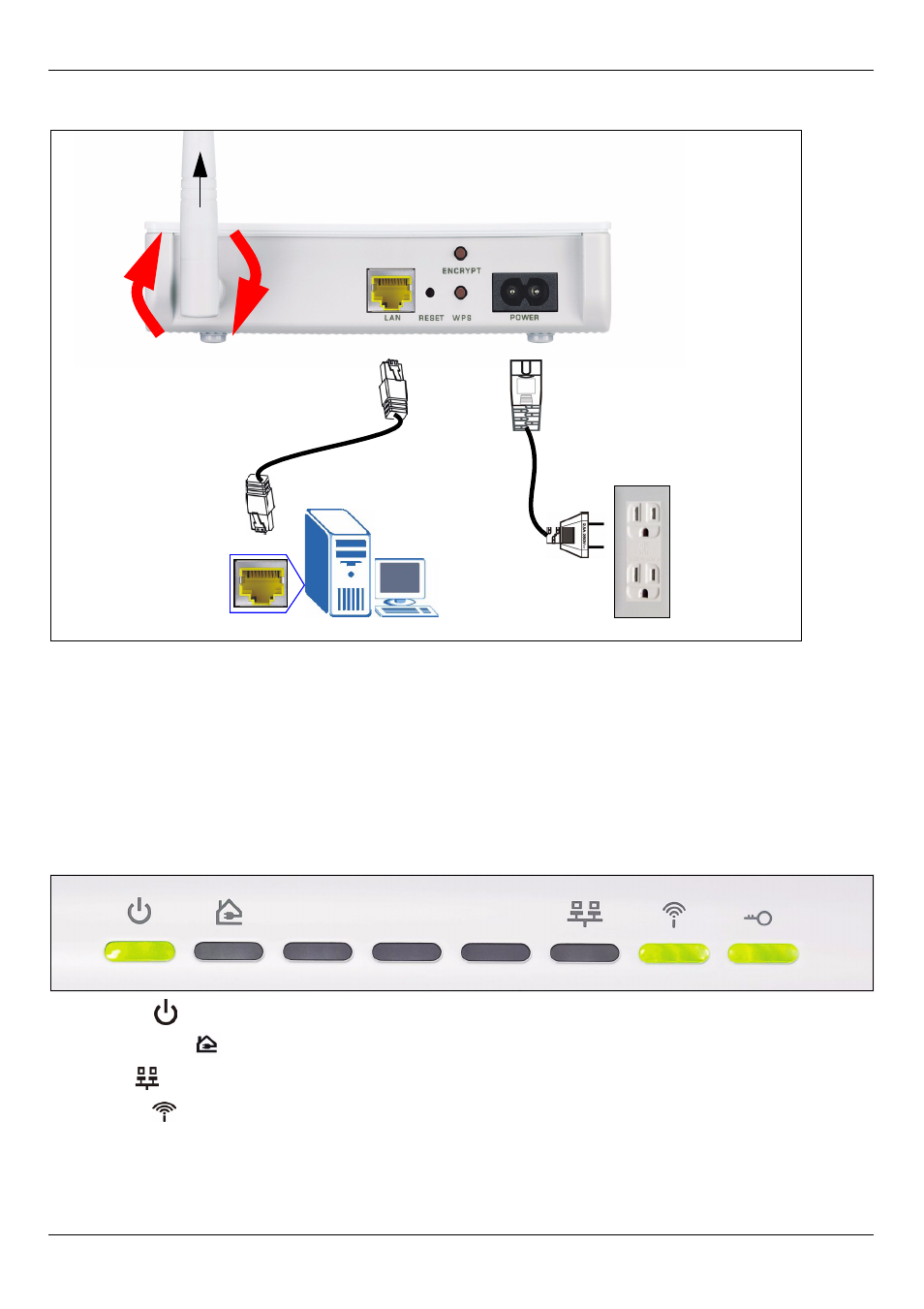

1 Initial Hardware Connections

1 Screw the antenna clockwise onto the antenna connector. Make sure it is securely

attached. Point the antenna up (perpendicular to the ground).

2 Use the yellow (Ethernet) cable to connect the PLA450’s LAN port to the Ethernet port

on your computer.

3 Use the included power cord to connect the POWER socket to an appropriate power

source. This is also your powerline connection.

1.1 Look at the LEDs (lights)

• Power (

): Blinks until the device is ready.

• HomePlug (

): Turns on when connected to other HomePlug AV device(s).

• LAN (

): Turns on if the LAN connection to your computer is OK.

• WLAN (

): Turns on if the wireless LAN feature is on.

1

2

3
