Overview of EMS

The following diagram illustrates the main elements in EMS. EMS contains the
four main functions.
Menu Shortcut Bar: The buttons execute common commands
Device Panel: This is a graphical device display.
Device List Panel: View devices in a tree structure. The colors of the

device indicate the status of the devices. Green is working and Rd is no
response from the device.

System message Panel: View the alarm Status and port status of the

selected switch.

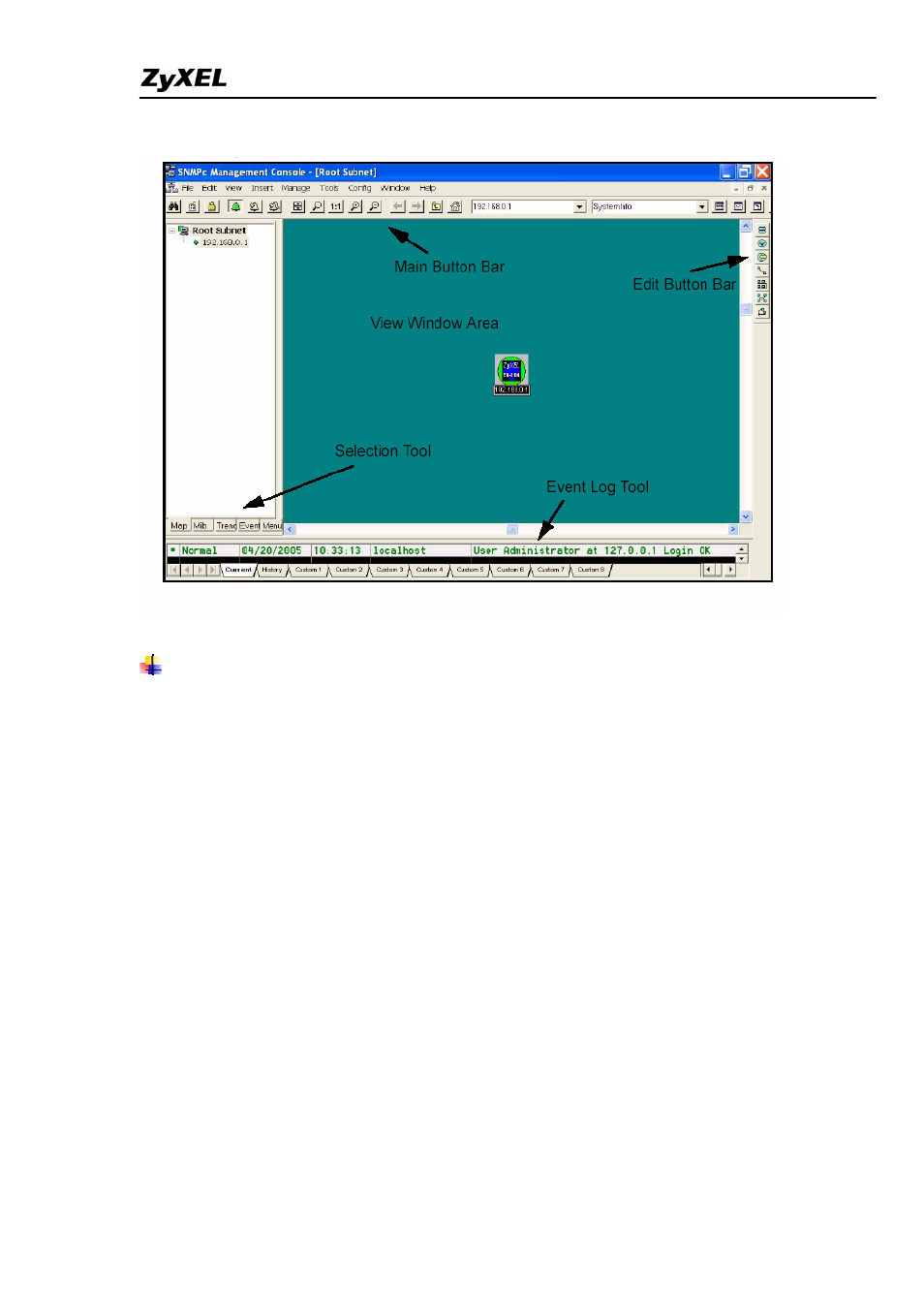

Figure 3 Overview of EMS
