SECTION 4: UNPACKING
To removing unit from carton
1. Remove staples, break glue on top flaps, or cut
tape at carton end and peel along top flap to
open carton.
2. Remove loose parts if included with unit (i.e.,
owner's manual, etc.).
3. Make sure the cables are straight and not
crimped while removing loose parts or the unit
from the carton.
4. Cut along dotted lines and lay carton down flat.
5. Remove packing material.
6. Roll or slide unit out of carton. Check carton
thoroughly for loose parts.
TOOLS REQUIRED
Pair of Pliers (Not necessary, but helpful).
DISCONNECT SPARK PLUG WIRE
Before setting up your lawn mower, disconnect the
spark plug wire from the spark plug, and ground it
against the engine. See Figure 3.
NOTE: On engines with a rubber boot, attach
rubber boot to a bolt on the engine to ground.

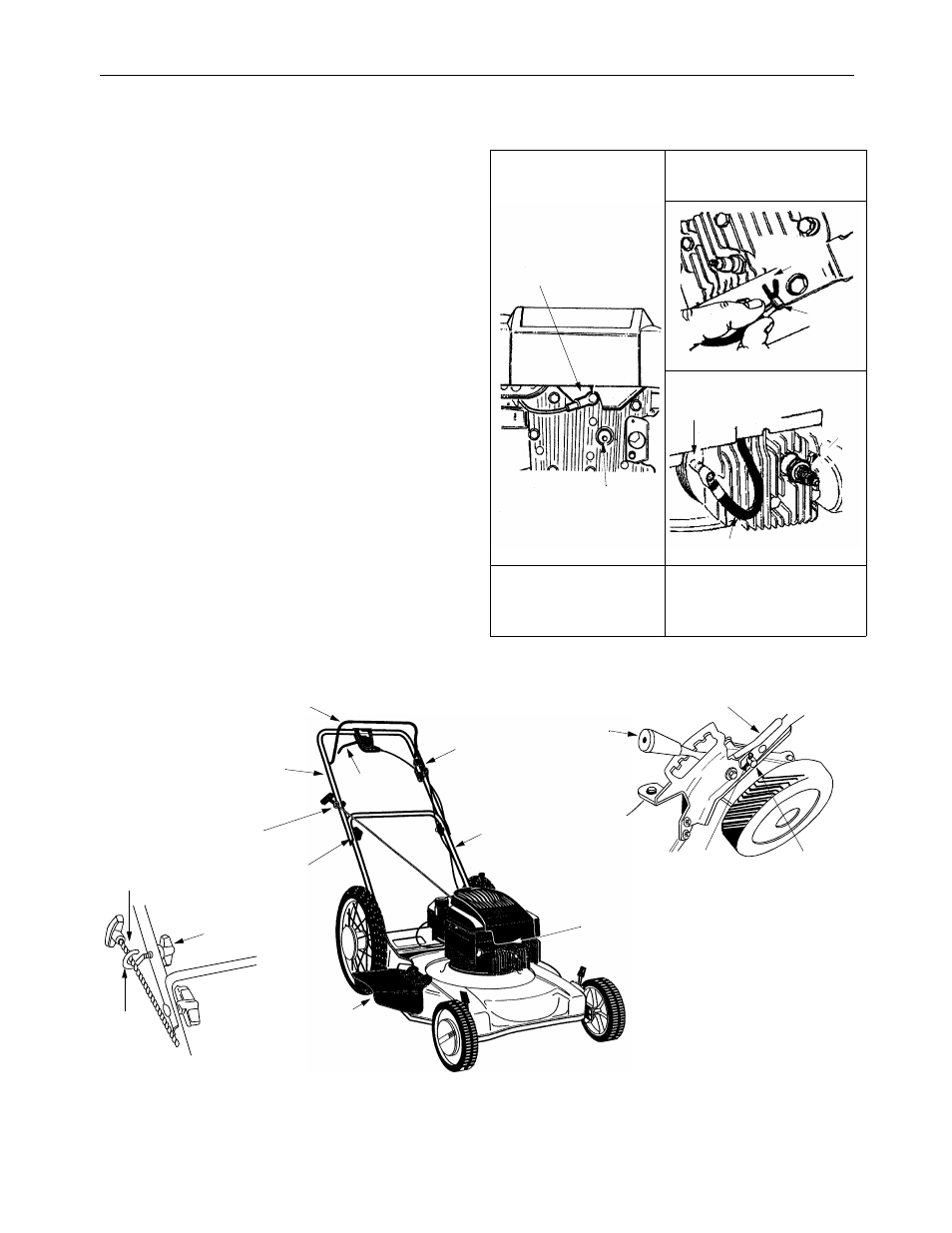

Figure 3
Figure 4
Briggs & Stratton
Engines
Spark Plug Wire
With Rubber Boot
Spark
Plug
Wire
Spark
Plug
Retaining
Post
Spark Plug Wire
Spark Plug
All Engines
Boot
With Rubber
Tecumseh
Engines
Height
Adjuster
Lever
Handle Mounting
Bracket
Hairpin Clip
in Inner Hole
Weld
Pin
Wing
Rope
Guide
Starter
Rope
Nut
Upper
Handle
Rope
Guide
Discharge
Chute
Plug
Spark
Lower
Handle
Hand
Knob
Drive
Control
Handle
Throttle
Control
Blade Control Handle
