Hardware Description and Installation
The switch is suitable for an office environment where it can be
placed on a desktop.
Desktop Installation
Step 1. Make sure the switch is clean and dry.
Step 2. Set the switch on a smooth, leveled and sturdy flat space
strong enough to support the weight of the switch and the
connected cables. Make sure there is a power outlet
nearby.
Step 3. Make sure there is enough clearance around the switch to
allow air circulation and the attachment of cables and the
power cord.
Do not block the ventilation holes. Leave
space between switches when stacking.
Rear Panel Connection
The RJ-45 ports and the power port are located on the rear panel of
the switch.

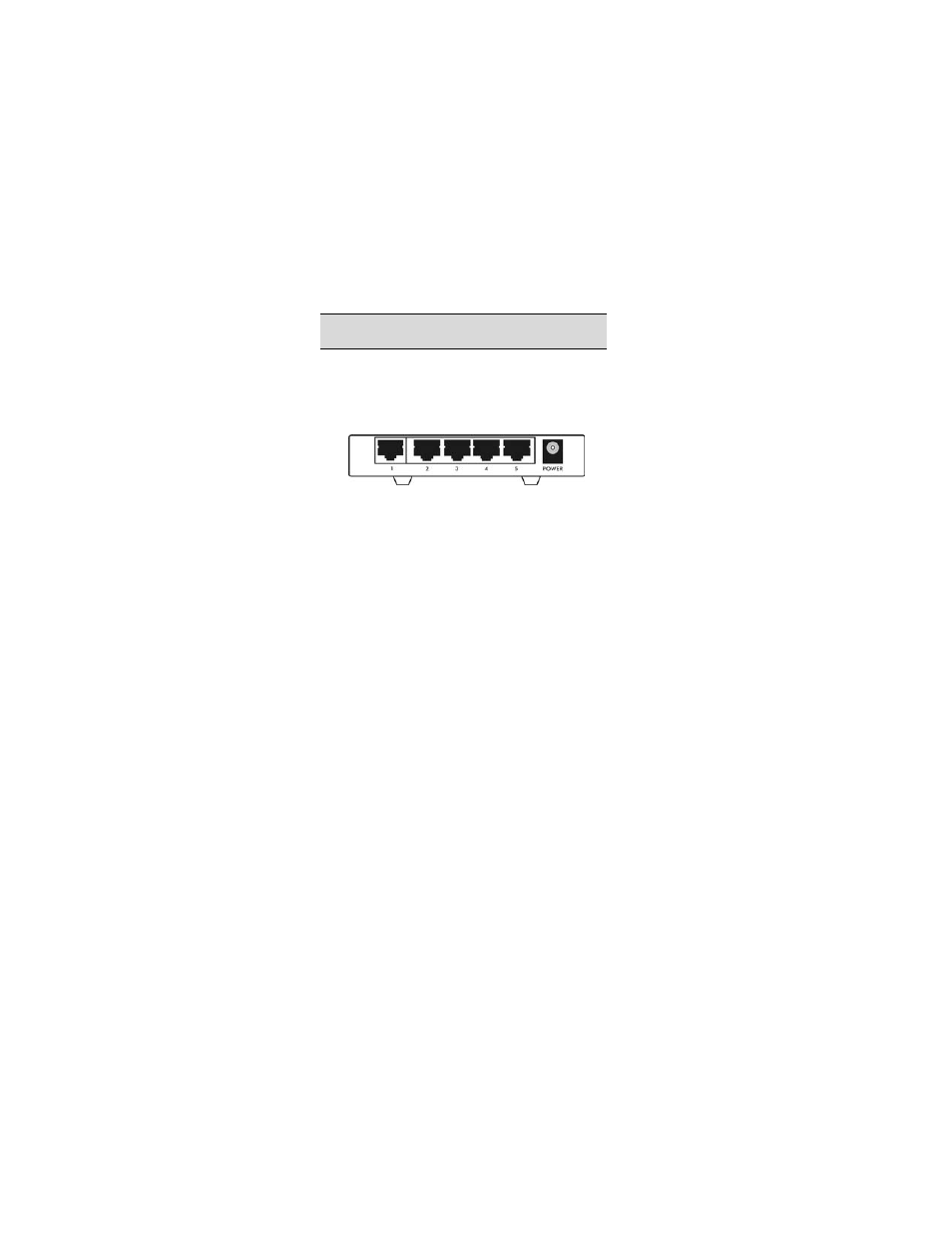

Figure 2 Rear Panel of the ES-105
