AUXILIARY LOCKS
Page 15 Condensed Catalog

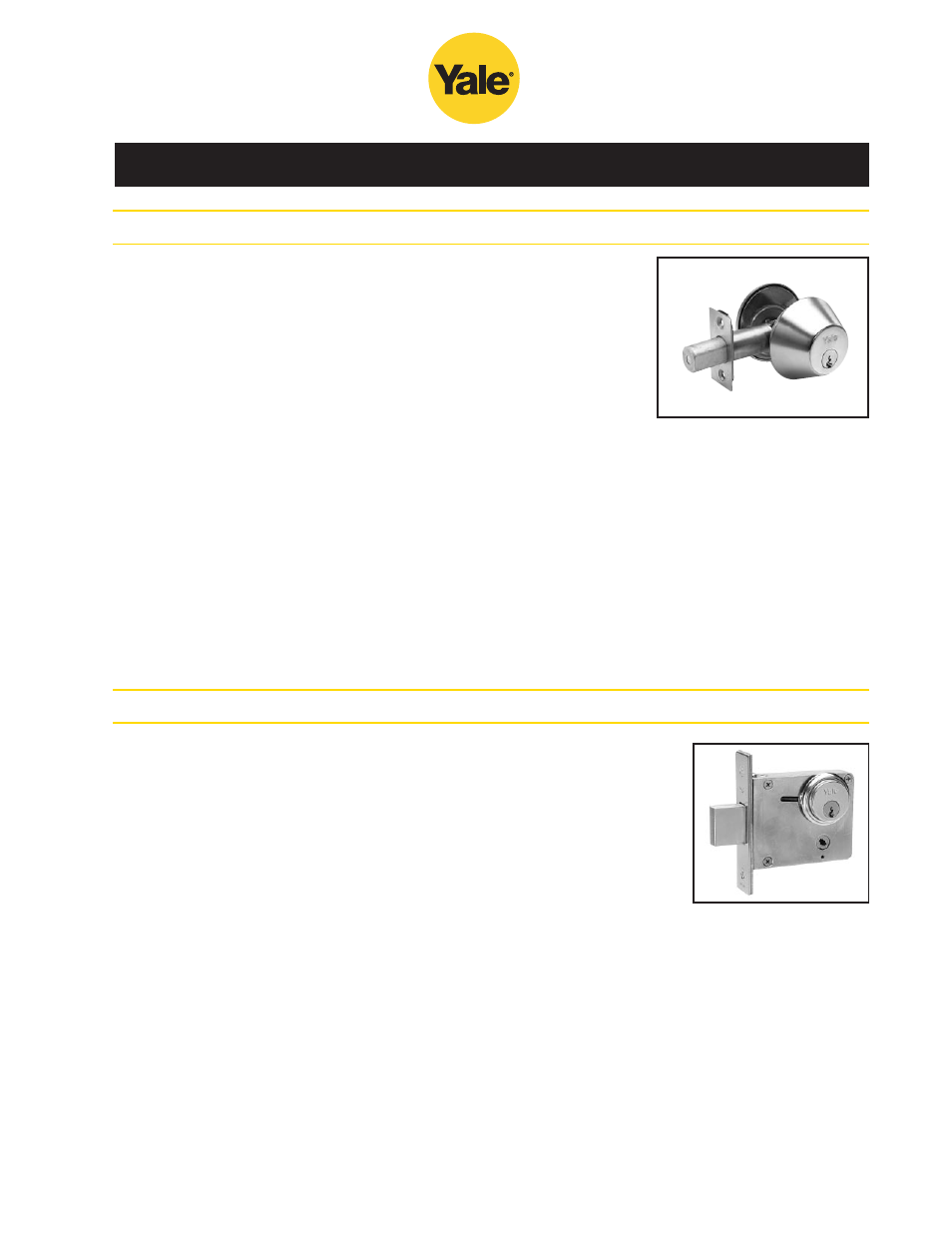

3500/3600/3700 SERIES AUXILIARY BORED DEADBOLTS
UL: UL fire-rated up to 3 hours when used with
Listed hardware
Backset: 2-3/4" or 2-3/8" available to order
Door Preparation: Can be installed on metal doors pre pared to
ANSI A115.13 Specifications
Cross Bore Wood Doors: Standard - 2-1/8" diameter
Edge Bore: 1" diameter
Deadbolt: 1" throw, 5/8" wide x 3/4" high.
3500: extruded brass with 3/8" diameter
hardened armor pin to resist sawing
3600/3700: stainless steel with 3/8"diameter hardened armor pin to resist sawing
Door Thickness: 1-3/4" to 2-1/4", must be specified
Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin
available to order. 3500/3600: fixed core. 3700: interchangeable core. For other
cylinder and keying options, see page 27.
Reversibility: Non-handed
Strikes: #541 standard; #542 or 545 available to order
Finishes: Available in 7 finishes
Warranty: 1-year mechanical
300 SERIES AUXILIARY MORTISE DEADLOCK
UL: UL fire-rated up to 3 hours when used with Listed hardware
Case: Heavy wrought steel, zinc-plated and dichromated
Backset: 2-3/4"
Deadbolt: 1" throw, 1-1/4" high x 1/2" thick. Two hard ened steel free-
rotating pins make sawing through bolt vir tu al ly impossible.
Resists end pressure when thrown.
Door Thickness: 1-3/8" to 3" maximum, must be specified
Front: Universal for both flat and beveled door edges
Thumbturn: Brass, bronze or stainless steel. Thumbturn attaches directly to
lock case for added security.
Cylinder: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to
order. For other cylinder and keying options, see page 27.
Reversibility: Non-handed
Finishes: Available in 14 finishes
Warranty: 1-year mechanical
