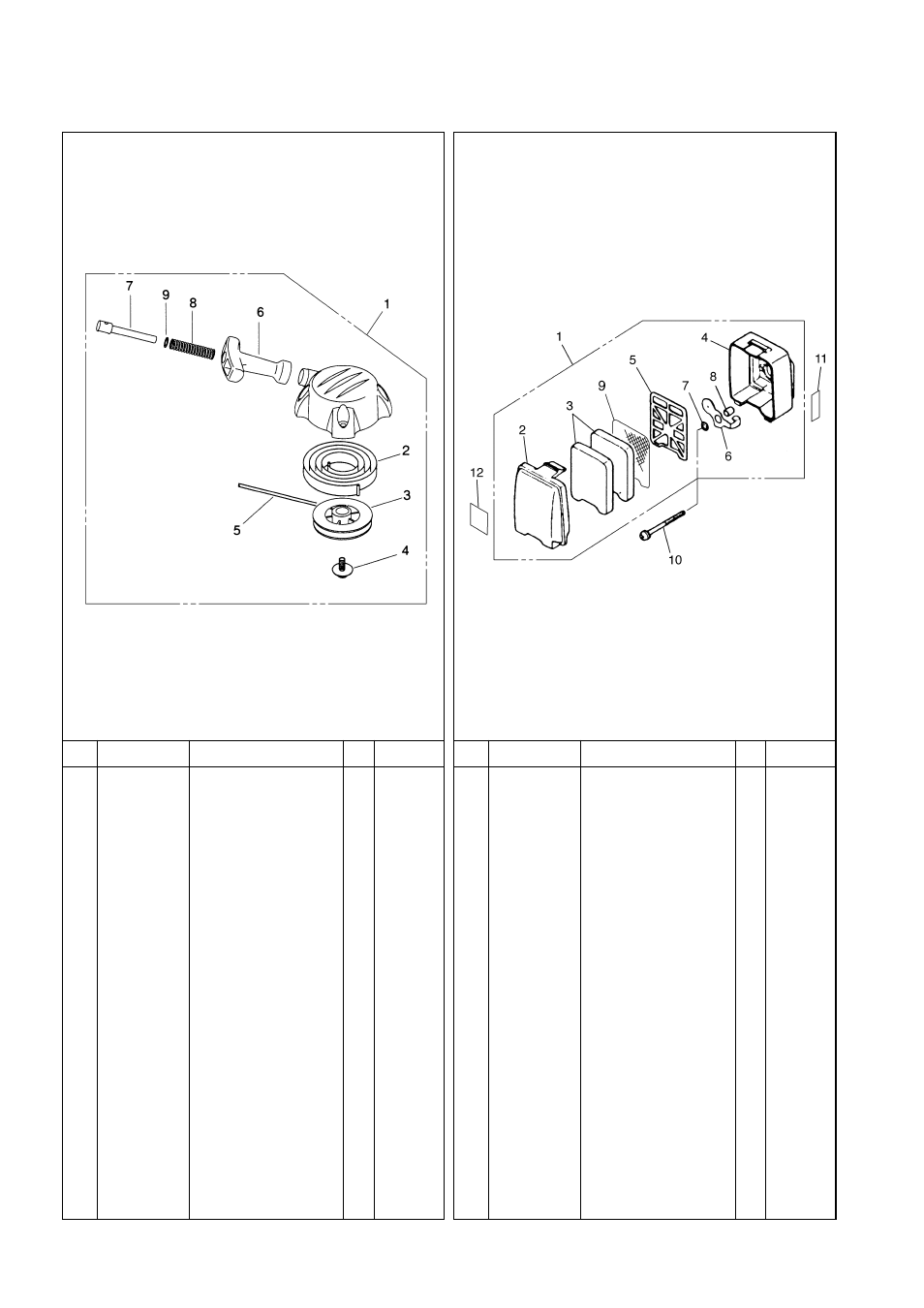

Fig.5 RECOIL STARTER

Fig.6 AIR CLEANER (for China)

eHT750S / eHT600D

Q’TY

Key# PART NUMBER

DESCRIPTION

NOTE

/UNIT

1

T1650-75100 RECOIL ASS'Y

1

2

T1600-75130 • SPRING, spiral

1

3

1850-75120 • REEL

1

4

1850-75151 • SCREW

1

5

T1600-75160 • ROPE

1

6

T1600-75310 • KNOB

1

7

T1600-75321 • COLLAR

1

8

T1600-75330 • SPRING

1

9

T1600-75210 • WASHER

1

Q’TY

Key# PART NUMBER

DESCRIPTION

NOTE

/UNIT

1

1918-82001 AIR CLEANER ASS'Y

1

2

1918-82110 • COVER

1

3

1918-82120 • FILTER

2

4

1918-82130 • HOUSING

1

5

1918-82140 • PLATE

1

6

1918-82150 • CHOKE VALVE

1

7

1918-82160 • WASHER

1

8

1918-82170 • SLEEVE

2

9

1918-82180 • SCREEN

1

10

0263-90555 SCREW

2

11

5630-91170 LABEL

1

12

5630-91180 LABEL

1
