PLA-401 v3
Powerline Ethernet Adapter
PLA-401 v3
Powerline Ethernet Adapter
System Specifications
• Speed: HomePlug AV 200 Mbps data rate
• Access methods: CSMA/CA channel-access
schemes
• HomePlug modulation:
- OFDM symbol modulation
- QAM 1024/256/64/16
- QPSK, BPSK, ROBO carrier modulation schemes
• Nodes:
- Up to 63 slaves with 1 master, 64 total devices
- 4 overlapping networks for neighbor networks
with CCo failover
- Up to 4 masters with up to 252 slaves
• Power saving mode: Stand-by mode if link has
been lost for a period
• Power consumption:
- 240 VAC: Full operation 3.8 W, standby mode
1.8 W
- 110 VAC: Full operation 2.9 W, standby mode
0.9 W
• IGMP: IGMP snooping for multicast to multiple
uncast mapping
• Security:
- 128-bit AES encryption
- Push button security
• Quality of Service (QoS)
- ToS
- Support up to 4-level type QoS
- Support up to 8-level VLAN priority field
• Frequency band: 2 MHz ~ 30 MHz
Hardware Specifications
• Ethernet interface: RJ-45 connector, 1-port
10/100M
- EU version - US version - UK version
• Power rating: 100-240 VAC, 50/60 Hz
• LED indicators: 3 LEDs
- Power on/off
- Powerline activity
- Ethernet link/activity
• Encryption button
• Reset button
Physical Specifications
• Item weight: 160 g (0.35 lb)
• Item dimensions:
71 (W) x 65 (D) x 95 (H) mm
(2.79 (W) x 2.56 (D) x 3.74 (H) inch)
• Packing weight: 430 g (0.95 lb)
• Packing dimensions:
134 (W) x 94 (D) x 178 (H) mm
(5.27 (W) x 3.7 (D) x 7.01 (H) inch)
Environmental Specifications
• Operating environmental:
- Temperature: 0ºC ~ 45ºC
- Humidity: 20% ~ 90% RH
• Storage environmental:
- Temperature: -20ºC ~ 70ºC
- Humidity: 20% ~ 95% RH
Certification
• EMI certification: FCC, CE
• Safety certification: UL, cUL
• RoHS
Specifications

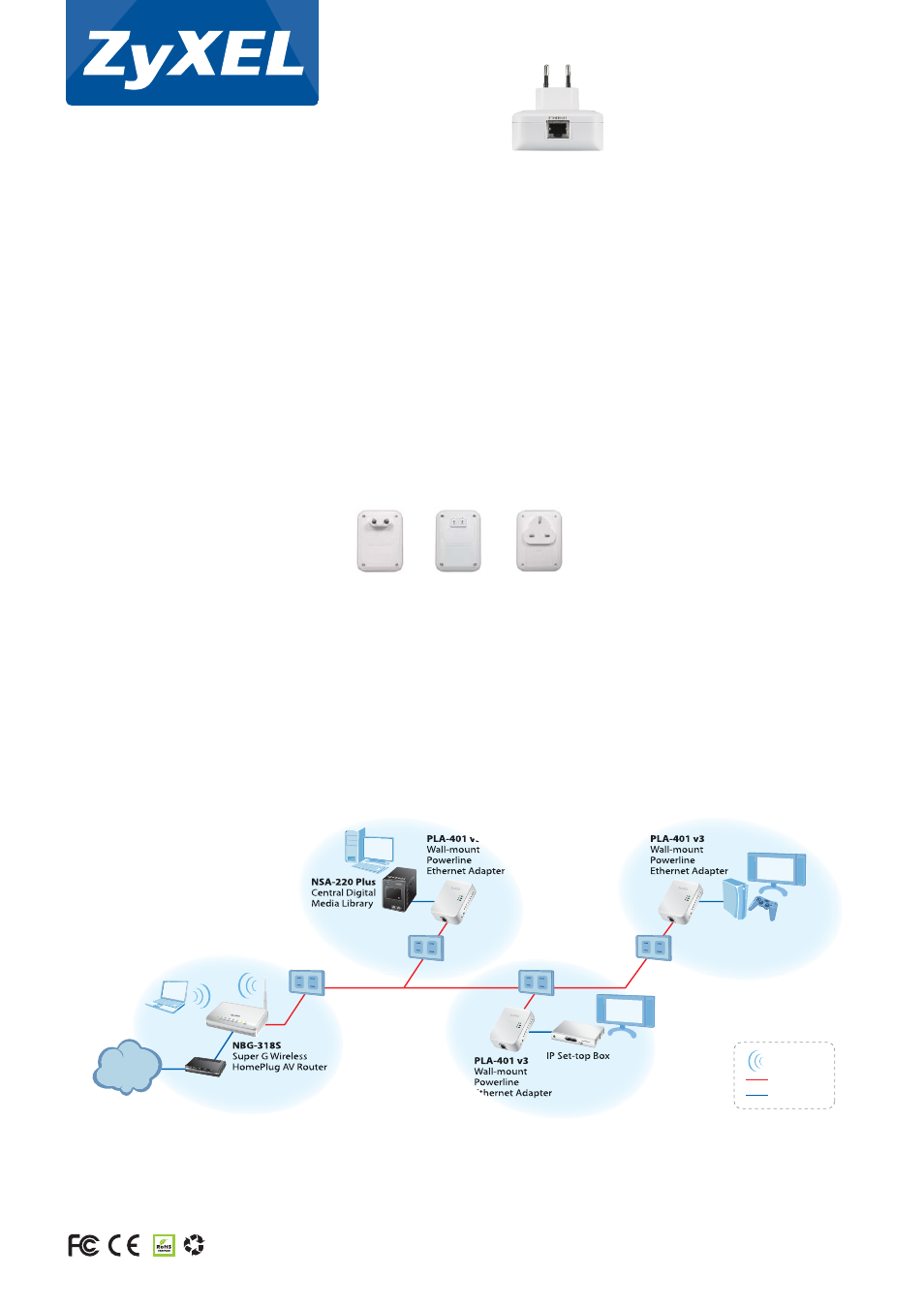

Application Diagram
xDSL/Cable
Modem
Internet
Eth
v3
Wireless
Powerline
Ethernet
Game Console
Online Gaming
Networking
HD Video
Streaming
65-100-040103B 03/09
