1. Remove all debris from pit before installation.
2. Use a deep cycle battery only. Refer to battery de scrip -
tions on page 6.
3. Be sure the pump is on a fi rm, level surface.
4. Install a serviceable check valve in the discharge
line.
5. Test the unit immediately after installation. Refer to
STEP 6.
1. DO read all installation material with the pump and
charger.
2. DO inspect unit for any visible damage caused by ship-
ping. Contact dealer if unit appears to be damaged.
3. DO clean all debris from the pit.
4. DO always disconnect pump from power source before
han dling. DO always connect to a separately protected
and prop er ly grounded ground fault protected circuit.
DO NOT ever cut, splice or damage power cord. DO
Ten Helpful Hints For Easy Installation
Do’s And Don’t’s For Installing A Unit
NOT carry or lift pump by its power cord. DO NOT use
an extension cord with the
Aquanot
®
. DO NOT lengthen
battery/pump leads.
5. DO install union check valve (see step 3) in the dis-
charge line. DO NOT use a dis charge pipe smaller
than the rec om mend ed pump discharge sizes.
6. DO test pump immediately after installation to be sure
that the system is working properly.
7. DO review all applicable local and national codes and
verify that the installation conforms to each of them.
Performance Characteristics
6. The battery & charger should be placed on a shelf.
7. Check fl oat On/Off levels per STEP 2 of instructions.
8. Apply grease to the Positive and Negative terminals
of the battery to prevent corrosion.
9. Check the battery water level once a month and add
distilled water as necessary.
10. Obtain model number, date code and in stal la tion in-
struc tions be fore calling factory.
011922
Note:
Aquanot
®
II (Model 585) data was de vel oped with the charger supplying DC power to the pump.
5
10
15
20
25
30
35
0
0
5
10
FLOW PER MINUTE
TO
TA
L DYNAMIC HEAD
15
20
GALLONS
LITERS
METERS
FEET
80
2
4
6
60
40
20
100
120
40
50
45
140
160
180
25
8
55
200
585
580

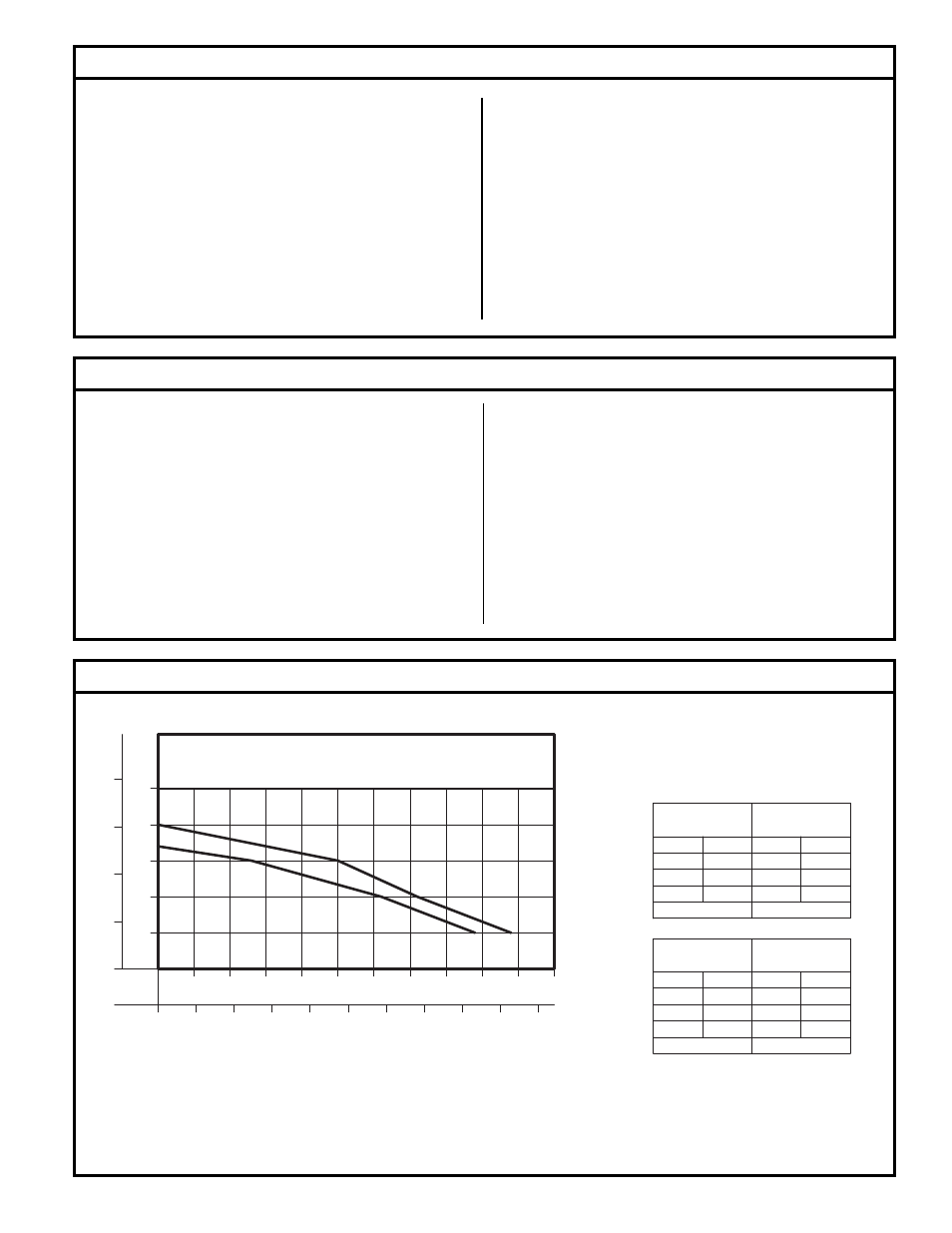

PUMP PERFORMANCE CURVE
MODEL 580/585
TOTAL DYNAMIC HEAD/FLOW
PER MINUTE
EFFLUENT AND DEWATERING
MODEL
Feet
Shut-off Head:
585
Meters
Gal.
Liters
5
1.5
49
186
10
3.0
36
136
15
4.6
25
95
20 ft.(6.1m)
Shut-off Head:
MODEL
15
10
5
Feet
17 ft.(5.2m)
Gal.
4.6
3.0
Meters
1.5
13
31
49
117
44
167
Liters
580
