WLAN PCI Card User’s Manual
1. Turn off the computer‚ unplug the power cord and remove the computer's
cover.
2. Pick a free PCI expansion slot and remover the protective bracket.
3. Insert the Card into the slot until it is fully seated.
4. Secure the Card bracket with the screw from step 2.
5. Replace the computer’s cover.
6. Reconnect the power cord and turn on the computer.
LED Indicators
POWER
SMA Connector
LINK

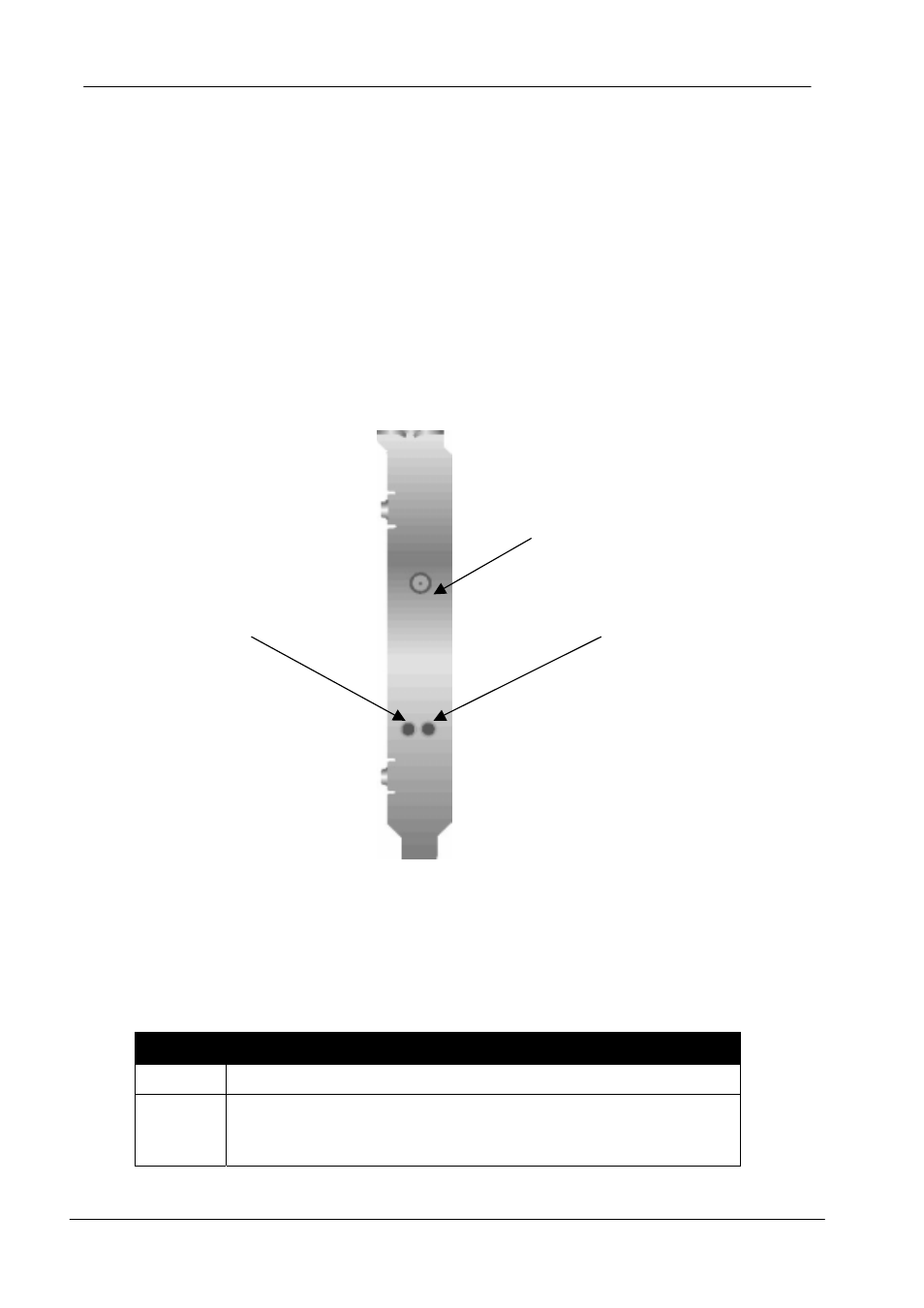

Side view of the PCI Card from bracket.
The following table describes the meaning of LED indicators:
LED MEANING
POWER Indicates that the Card is powered on (solid green).
LINK Indicates link status. The LED lights up (solid green) while
the wireless connection is linked. The LED is blinking green
while wireless data transmitting / receiving.
