5
Making Connections
Connection Notes
• Turn off the RP-U100 and all equip-
ment to be connected before making
any connections.
• Refer to the owner’s manuals supplied
with your other equipment for more
information.

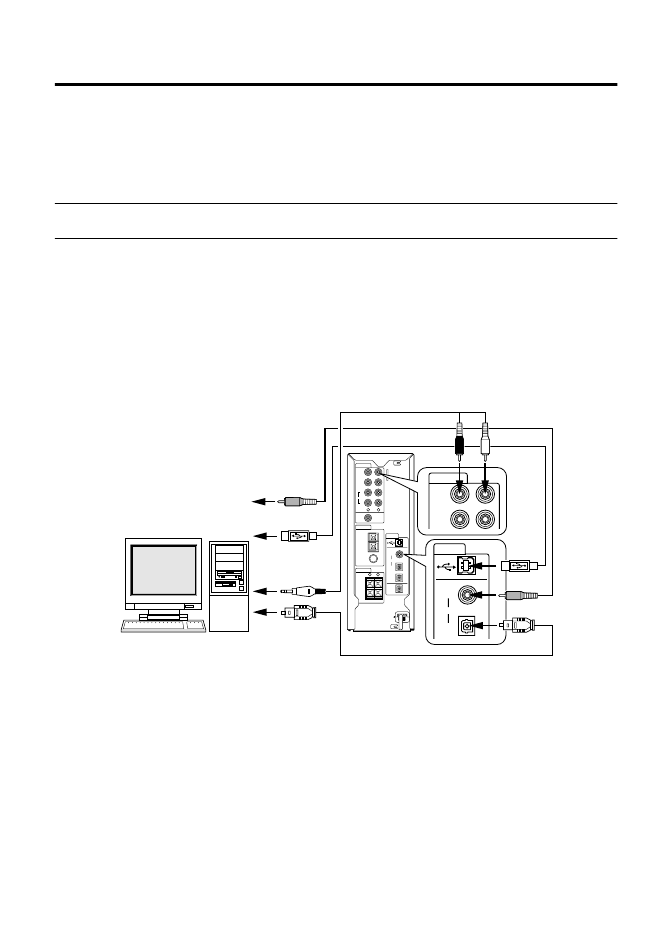

Connecting your PC
If your PC has a USB port, connect it to the RP-U100’s USB port using the supplied USB
cable, as shown below. A single USB connection is all that’s required to listen to audio
from your PC on the RP-U100, feed audio from an external source connected to the
RP-U100 to your PC, and control the RP-U100 remotely from your PC, using the sup-
plied RP-U100 Application Software.
If your PC doesn’t have a USB port, you can still connect it to the RP-U100 using the ana-
log and digital inputs and outputs, but cannot use the RP-U100 Application Software.
Audio from your PC can be fed to the RP-U100 using any of following connectors: USB
(as explained above), DIGITAL PC COAX IN, DIGITAL PC OPT IN, or ANALOG PC IN.
To play DVD-Video discs encoded with Dolby Digital, your computer must have a
DVD-ROM drive and DVD-Video decoder board, which should be connected to the
RP-U100 via the DIGITAL PC COAX IN or DIGITAL PC OPT IN.
Note: Make sure that the USB cable is disconnected from the RP-U100 before
installing the RP-U100 Application Software. See page 16 for more information.
Note: The DIGITAL PC OPT IN has priority over the DIGITAL PC COAX IN, so if you
connect to both inputs, the signal received at the DIGITAL PC OPT IN is used.
ANALOG
PC IN
AUX 1
IN
SUB WOOFER OUT
IN
OUT
AUX 2
R L
ANTENNA
AM
FM
75 Ω UNBAL
GND
DIGITAL
SPEAKERS
6 Ω MIN./SPEAKER
+
–
USB
OPT OUT
AUX 1
OPT IN
COAX IN
PC
OPT IN
R L ANALOG OUT
ANALOG
PC IN
AUX 1
IN USB
DIGITAL
USB
COAX IN
PC
OPT IN
DIGITAL
OUT
(COAXIAL)
DIGITAL
OUT
(OPTICAL)
