Chapter 3 Hardware Overview
ES-1124 User’s Guide
23

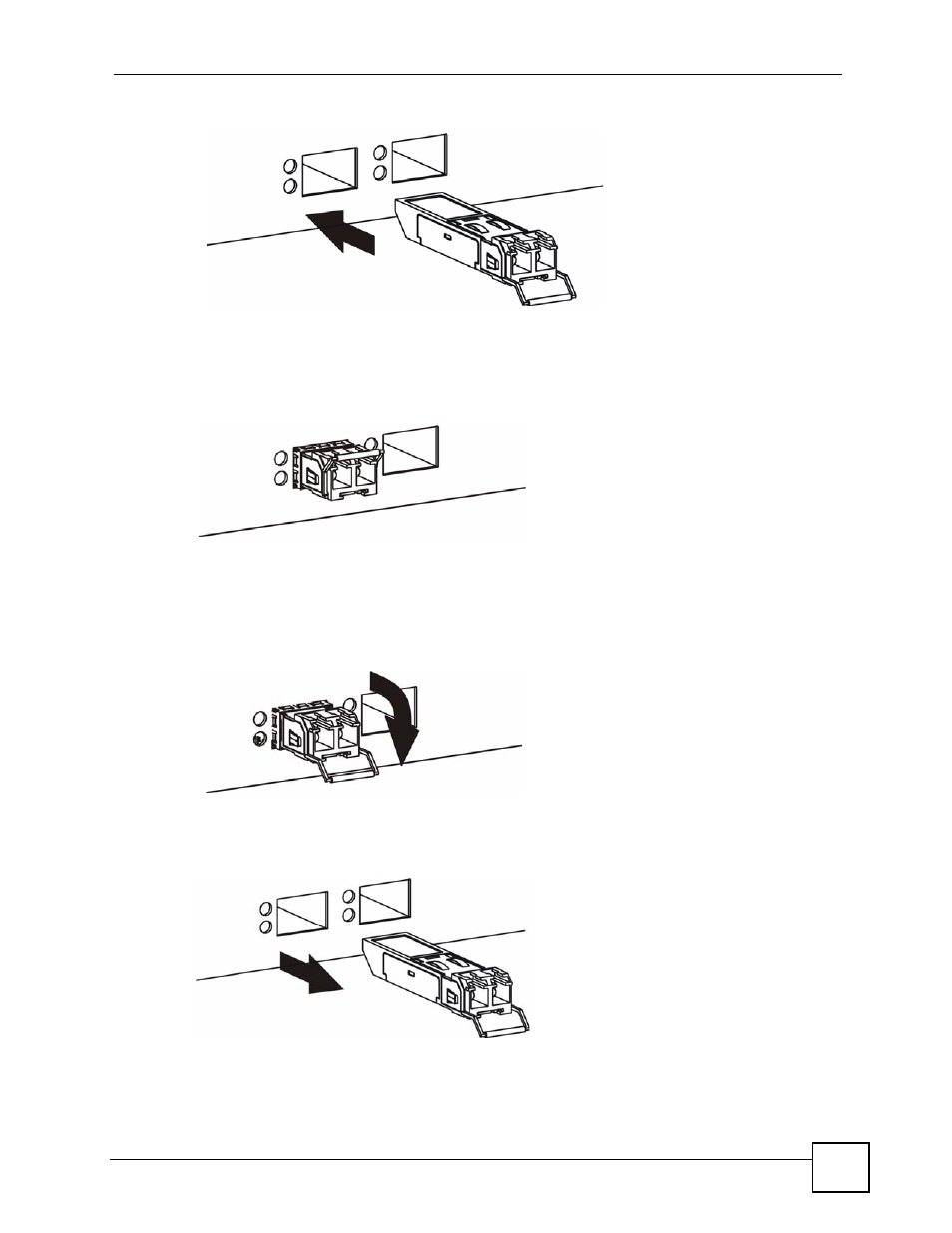

Figure 7 Transceiver Installation Example
2 Press the transceiver firmly until it clicks into place.
3 The switch automatically detects the installed transceiver. Check the LEDs to verify that
it is functioning properly.
Figure 8 Installed Transceiver
3.1.3.2 Transceiver Removal
Use the following steps to remove a mini GBIC transceiver (SFP module).
1 Open the transceiver’s latch (latch styles vary).
Figure 9 Opening the Transceiver’s Latch Example
2 Pull the transceiver out of the slot.
Figure 10 Transceiver Removal Example
