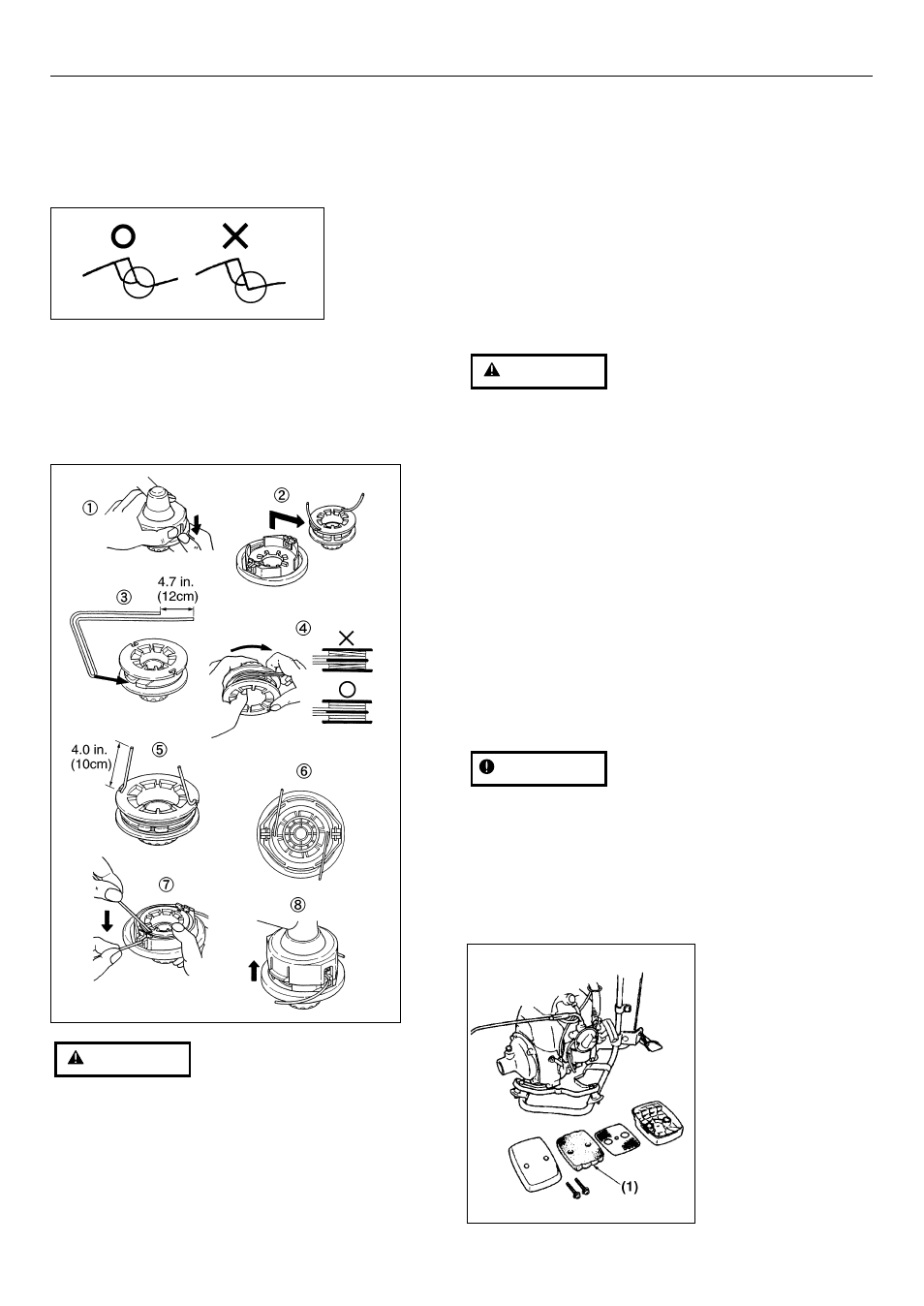

17

of the spool.

4. Wind up the line in the correct direction as indicated

on the spool.

5. Hook each end of the line in the slot on the edge of

the spool, and then put the ends through the eyelets
on the housing. Make sure that the spring and the
washers are in place.

6. While holding the spool against the housing, pull the

line ends to release them from the slot.

7. Line up the slot on the bottom cap with the hook on

the housing, press the cap against the housing until it
clicks.

Make sure that the engine has stopped and is cool
before performing any service to the machine.
Contact with moving cutting head or hot muffler
may result in a personal injury.

AIR CLEANER
Take off the air-cleaner cover and remove the dust
inside the air cleaner every 25 hours of use.
When the air-cleaner element has become extremely
contaminated, clean it thoroughly with warm water
including a neutral detergent. Install it after drying it
completely.
When the air-cleaner element has become deformed or
damaged, replace it with a new one.

Part No.: Z1418-82130

If the air-cleaner element becomes clogged, the output
of the engine decreases and fuel consumption worsens.
If you continue to operate the machine without an air-
cleaner element, or with an air-cleaner element which
has been deformed or damaged, the inside of the
engine will wear severely.

(1) Air-cleaner

element

IMPORTANT

WARNING

BLADE

• Sharpen each cutting edge and make sure the

bottom corner is rounded. (MA1)

• Do not cool the blade with water in case of using

grinder. It may cause cracks on blade.

REFILLING TRIMMING LINE (MA2)
1. For replacement line, use a diameter of .095in

(2.4mm). The spool is capable for a line upto 20ft
(6m) on the 4” head. Avoid using a larger line as it
may cut down the trimming performance.

For safety reasons, do not use metalreinforced line.

2. Pinch the slotted area on the both sides of the spool

housing to unhook the bottom cap.

3. Take out the spool and pull off the old line. Fold new

line so that one half line is 4.7in.(12cm) shorter than
another half. And then, hook bended end in the slot

WARNING

8. Maintenance

MA3

MA2

MA1
