Description of the appliance

The control panel

APP20en

1

2

3

4

5

6

7

8

9

10

11

12

13

14

IN68

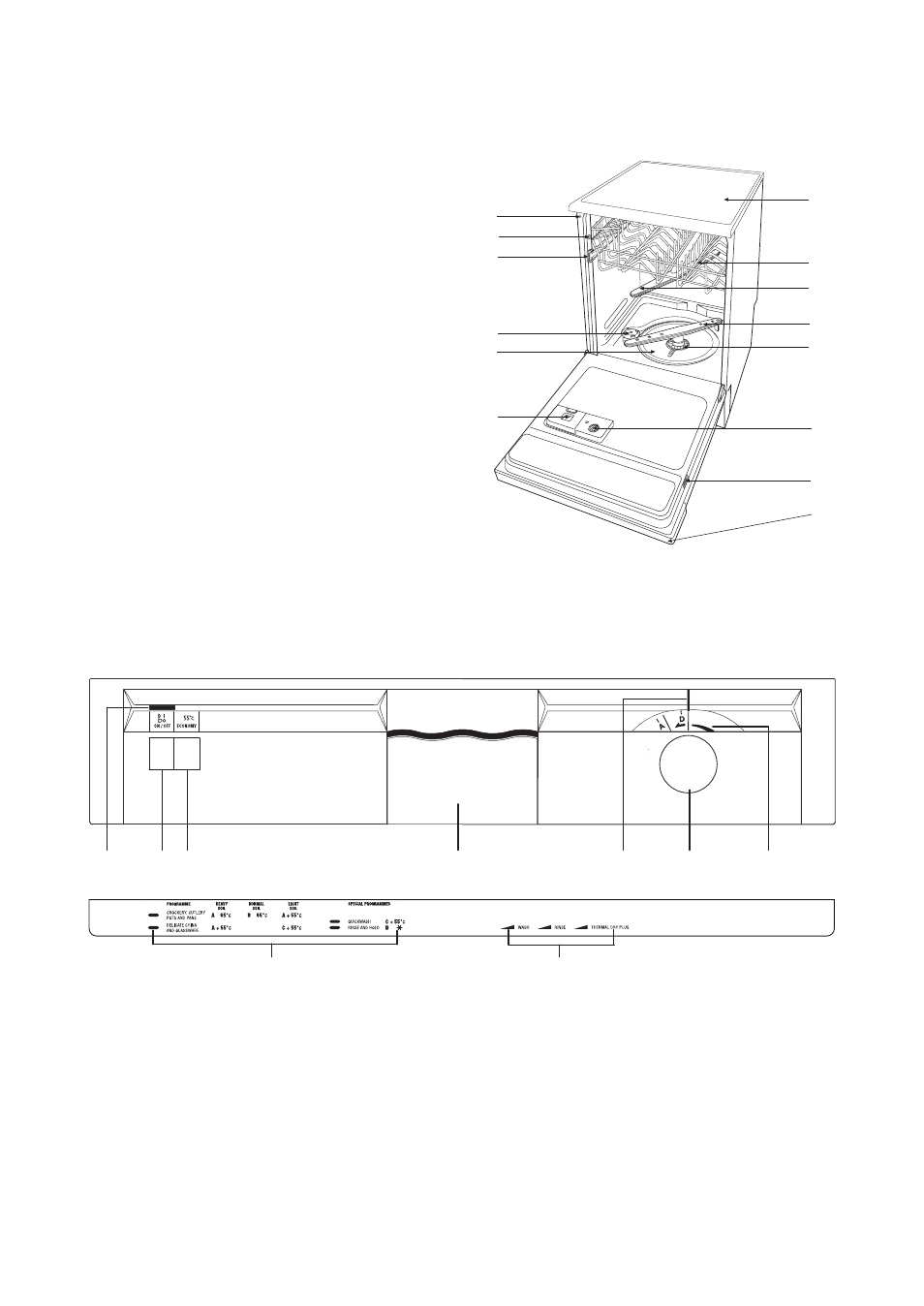

1. Water hardness adjustment

2. Levelling spacers

3. Upper basket stop

4. Salt container

5. Large filter

6. Detergent dispenser

7. Control panel

8. Rating plate

9. Rinse aid dispenser

10. Central filter

11. Lower spray arm

12. Upper spray arm

13. Upper basket

14. Worktop

1. On/Off indicator light

2. On/Off pushbutton

3. Wash temperature pushbutton 55°C

4. Door handle

5. Programme marker

6. Programme selector dial

7. Wash programme phase indicator

8. Programme guide

9. Phase indicator guide

1

2 3

6

7

5

4

8

9
