Energy Saving Design, More Green, More Economic
Energy saving is becoming an important issue to enterprises, and it’s getting
more difficult for IT executives to choose between high performance and high
power consumption. To address this, the MS-7206 offers industry-leading
energy efficiency. According to tests conducted by The Tolly Group, the MS-7206 uses only
555 watts in idle mode, and it needs only 28 watts additional power with 100% traffic load.
The MS-7206 undoubtedly saves energy costs and provides enterprise businesses with
excellent performance at the same time.
Resilient and Redundant Design for Round-The-Clock Business Continuity
The network is a critical part of daily business operations as such any type of network failure can have a massive cost to the business. The ZyXEL MS-7206 has
been developed to offer enterprise a resilient and redundant design to ensure the continuity of enterprise network operations. In terms of hardware
architecture, the MS-7206 has two slots for managed switch fabrics; the dual active/active resilient architecture enables two MM-7201 management cards to
work together to load balance and share the network traffic processing. Implementing the two management cards also provides the business with resilience
in the shape of fast failover in the event of failure.
In addition with dual redundant power supplies and removable fan modules, the MS-7206 provides extremely high redundancy for non-stop operations. In
terms of firmware architecture, the MS-7206 supports IEEE 802.3ad Link Aggregation to reduce network downtown by providing redundant paths and
bandwidth aggregation to critical connections. With IEEE 802.1w Rapid Spanning Tree Protocol (RSTP), Open Shortest Past First (OSPF) routing and Virtual
Router Redundancy Protocol (VRRP), enterprise networks will be capable of recovering immediately from failed links.
Intelligent QoS for Mission-Critical Enterprise Applications
As more applications are integrated into IP-based networks the network traffic flows are now more complicated and diverse than ever. To ensure the quality of
multiple services on a converged network, adopting an advanced traffic control technology to manage different types of traffic flow is critical and necessary
to enterprise networks. The MS-7206 delivers industry leading throughput by enabling local switching decisions to be made on the switch interface I/O as
opposed to forwarding unnecessary traffic to the management fabric.
The ZyXEL MS-7206 Switch supports Intelligent QoS features to organise network traffic into the best condition for mission-critical applications. With support
for Class of Service (CoS) and Differentiated Services Code Point (DSCP), administrators can easily classify and perform traffic prioritisation for critical
applications such as VoIP and video conferencing. For traffic prioritisation and bandwidth control, the MS-7206 provides a complete set of QoS features such
as multi-layer (L2/L3/L4) ACL prioritisation, eight priority queues, SPQ/WRR/WFQ scheduling algorithms and bandwidth control with granularity of 64 kbps.
Thanks to these excellent features, network administrators can easily set correct priority and adjust the best bandwidth to guarantee the quality of all network
services according to different characteristics of business operations.
Completely Safe Enterprise Networks
In the knowledge economy, information security has become a critical issue. Undoubtedly, enterprise networks are the most important platform to acquire
and exchange information. In addition to setting a firewall to prevent the threats incoming from the Wide Area Network (WAN), a well secured Local Area
Network (LAN) is also important for enterprises to protect intellectual property within the internal network.
ZyXEL MS-7206 Switch provides a complete set of security features to protect important data, administer traffic and secure enterprise networks. Through the
multilayer (L2/L3/L4) ACL security filtering, network administrators can easily monitor and secure enterprise networks with transparent sources and
destination information like MAC addresses, IP addresses, Ethernet type and TCP/UDP. With 802.1x authentication and port security, administrator can deny
unauthorised users from accessing the network. The intrusion lock function detects the “plugged” and “unplugged” status change of Ethernet cables, and the
switch can deactivate the port automatically if needed. Though all these choreographed security features, the MS-7206 Switch gives customers a completely
safe enterprise network environment.
Reducing Operation Costs with Enterprise-Class Trouble-Free Network Management
To manage and maintain a complicated enterprise network is a tough job for network administrators, therefore employing friendlier network management
interfaces with more options can relieve the difficulty and take more advantage of the enterprise networks. The MS-7206 supports comprehensive network
management features like ZyXEL’s exclusive iStacking™ technology that allows administrators to manage a switch cluster (of up to 24 ZyXEL switches)
through a single master ZyXEL Switch.
In addition, various network management options are available on the MS-7206: Web, Telnet and the console port are all supported, so network administrators
can choose to manage the switch using the friendly Web-based configuration or the convenient text-based CLI (Command Line Interface). Furthermore, the
MS-7206 also supports centralized SNMP management software for the switch maintenance tasks to be done remotely. This helps reducing the operation
costs and greatly increasing efficiency. For more security, SSHv1/v2 and SSL can be introduced to encrypt management sessions.
Enterprise LAN
Switches
Switch 7000 Series
—MS-7206
Enterprise LAN
Switches
Switch 7000 Series
—MS-7206
120V AC power source 230V AC power source
Idle no
ports active
Idle with 192 copper
ports active
50% Layer 2 traffic
load across 192 GbE
ports (96 Gbps)
75% Layer 2 traffic
load across 192 GbE
ports (144 Gbps)
100% Layer 2 traffic
load across 192 GbE
ports (192 Gbps)
600
500
400
300
200
100
0
W
a
tts c
onsumed

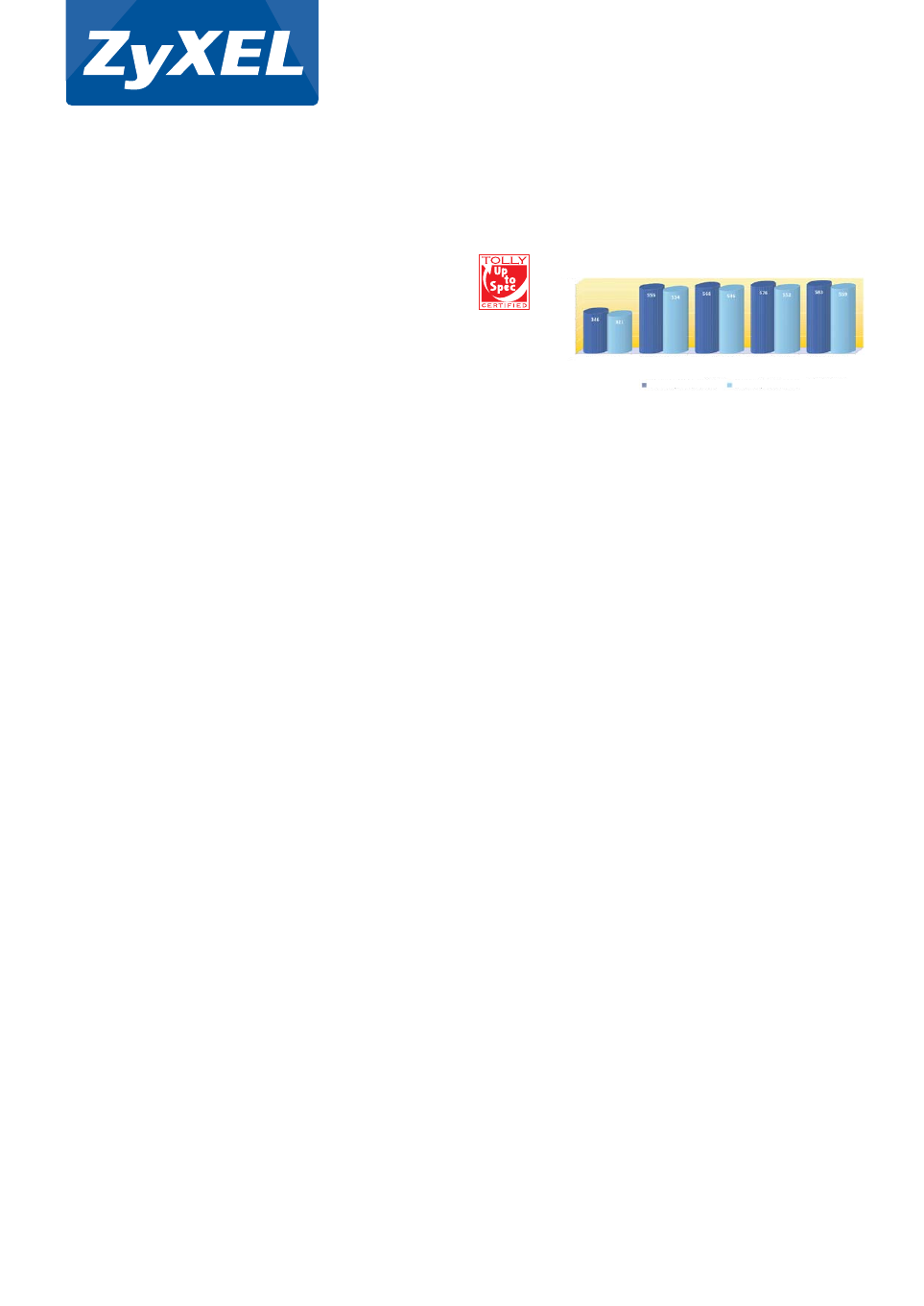

Power Consumption Across 192 GbE Ports Under Various Traffic Scenarios
as reported by Spirent TestCenter 2.22 and
Extech Electronics Programmable AC Power Source 6120
