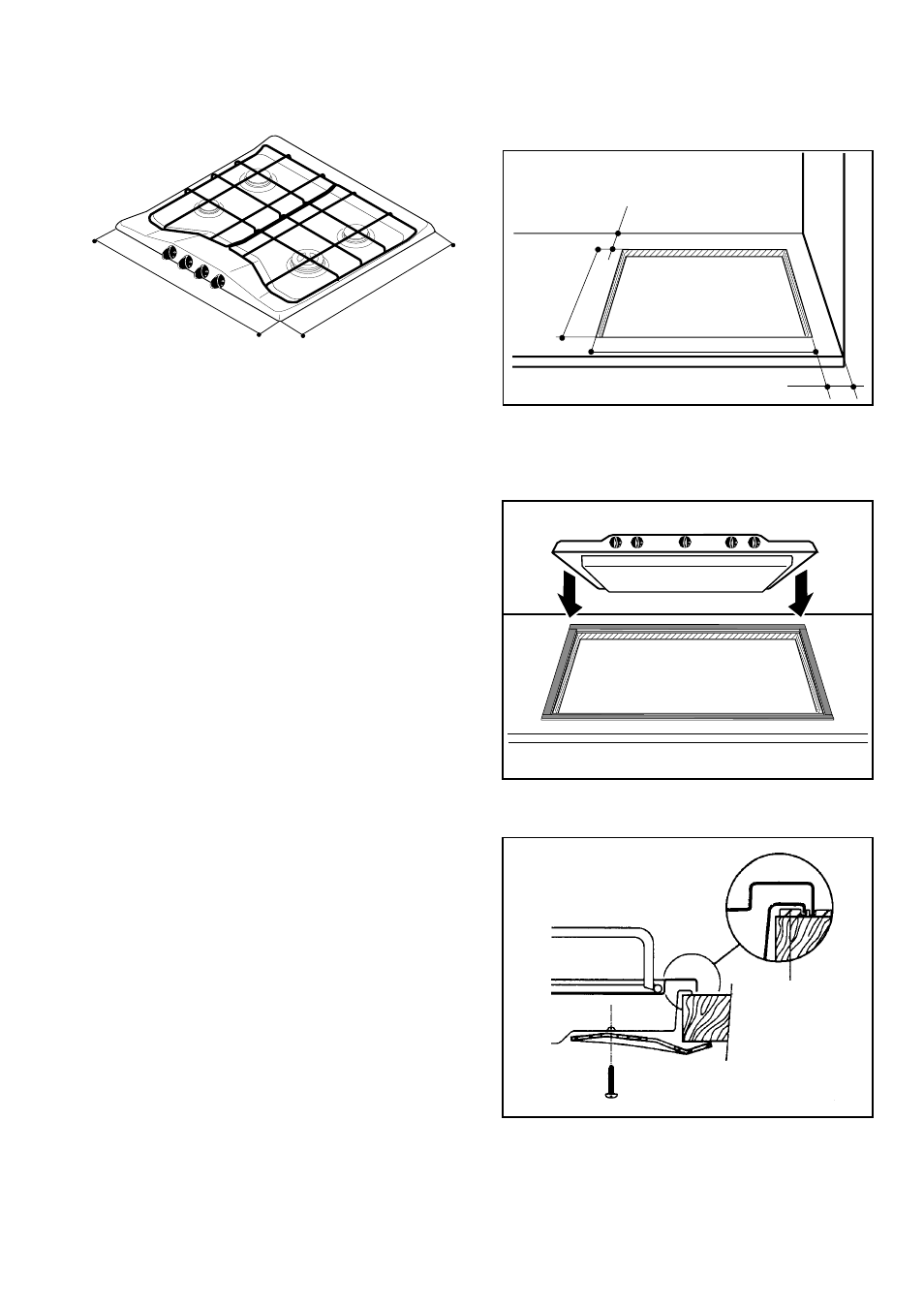

These hobs can be inserted in a built-in kitchen unit whose
depth is between 550 and 600 mm. The hobs dimensions
are shown in Fig. 4.
Fig. 4
510
580
Fig. 5
Fig. 7
FO 0199
Seal
Building In
Rectangular cut-out size for hob
Cut Out Size
The dimensions of the cut-out are given in the diagram.
Fitting the Hob into the worktop
F
Carry out the building in of the hob as follows:
• put the seals supplied with the hob on the edges of
the cut out, as shown in the diagram, taking care
that the seals meet without overlapping;
• place the hob in the cut out, taking care that it is
centred;
• fix the hob with the relevant fixing clamps and screws,
as shown in the diagram. When the screws have been
tightened, the excess seal can be removed.
The edge of the hob forms a double seal which prevents
the ingress of liquids.
560
150 min
480
55 min.
FO 2038
100
Dimensions are given in mm.
Fig. 6
FO 2348
