SECTION 3: CONTENTS OF HARDWARE PACK
The lawn mower is shipped with following loose parts in the carton. Please remove all loose parts, including the
hardware pack, from the carton before discarding it. Compare the contents of the hardware pack with the hardware

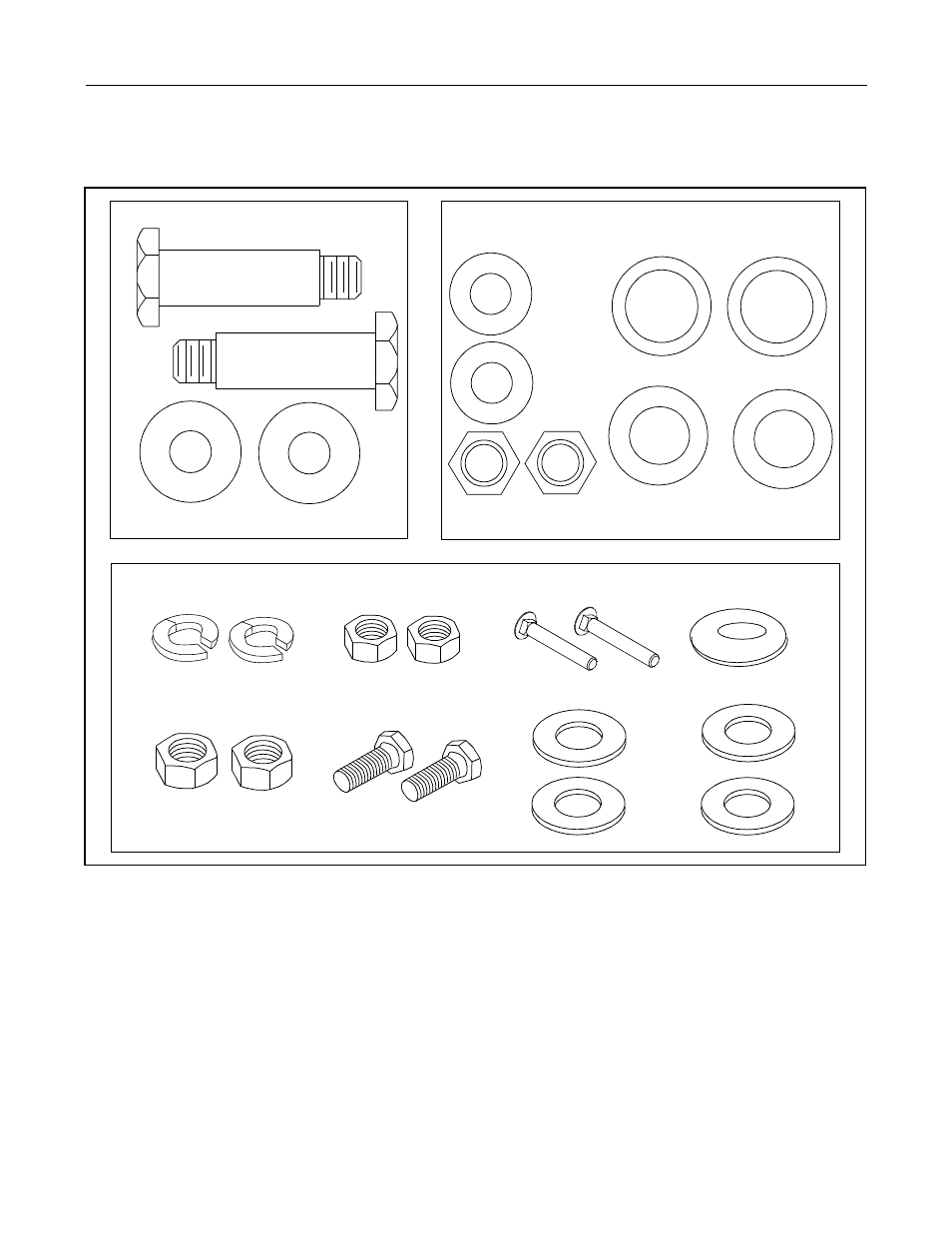

shown on this page. See Figure 1. The hardware pack may contain extra items which are not used on your unit.
Figure 1
NOTE: Hardware pieces illustrated here are not drawn to actual size.
Axle Bolts
Cupped Washers
ATTACHING FRONT WHEELS
Hex Jam Nuts
Spacers
Flat
Wave Washers
ATTACHING REAR WHEELS
Lock Washers Hex Nuts
Bell Washers
ATTACHING STRUTS (IF EQUIPPED)
Hex Nuts
Hex Bolts
Carriage Bolts Saddle Washer
Washers
(IF NOT ASSEMBLED)
