ZyWALL 10
3
LABEL DESCRIPTION
RESET
You only need to use this button if you’ve forgotten the ZyWALL’s password. It returns the
ZyWALL to the factory defaults (password is 1234, LAN IP address 192.168.1.1, terminal
emulation settings as described above etc.; see your User’s Guide for details).

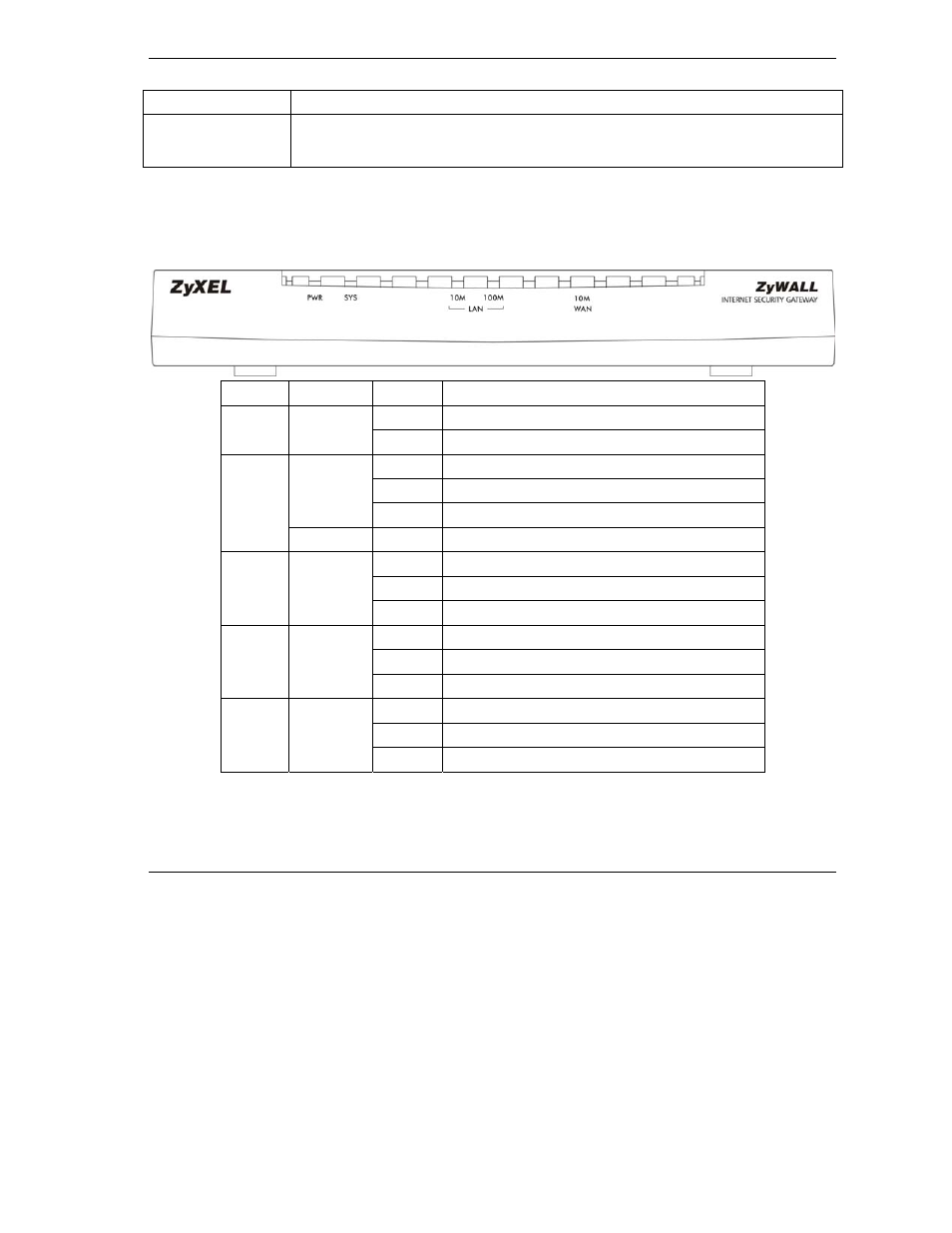

The Front Panel LEDs
The PWR LED turns on when you connect the power. The SYS LED blinks while performing system testing
and then stays on if the testing is successful. The LAN and WAN LEDs turn on if they are properly
connected. Refer to the following table for detailed LED descriptions.
LED
COLOR
STATUS
MEANING
On
The ZyWALL is turned on.
PWR Green
Off
The ZyWALL is turned off.
SYS
Green
Off
The ZyWALL is not ready or failed.
On
The ZyWALL is ready and running.
Flashing
The ZyWALL is rebooting.
Red
On
The power to the ZyWALL is too low.
Green
Off
The 10M LAN is not connected.
On
The ZyWALL is connected to a 10M LAN.
LAN 10M
Flashing
The 10M LAN is sending or receiving packets.
Off
The 100M LAN is not connected.
On
The ZyWALL is connected to a 100Mbps LAN.
LAN 100M Orange
Flashing
The 100M LAN is sending or receiving packets.
Off
The 10M WAN link is not ready, or has failed.
On
The 10M WAN link is OK.
WAN 10M Green
Flashing
The 10M WAN link is sending or receiving packets.
