3
System button for selecting
Heat/Off/Cool or Auto (Heat/Cool)
Fan (Auto/On)
Stage 1
Indicates when thermostat is
calling for Heat or Cool
Time and Day
Room Temperature and Setting Temperature
(flashes when compressor is in 5 minute lockout)
Temperature Up/Down
Displays indicating the current power
level of the 2 "AA" batteries. When the batteries
become low, "Change" will appear with the .
The batteries should be replaced at this time.
Menu for Cleaning, Programming
and Setting Time

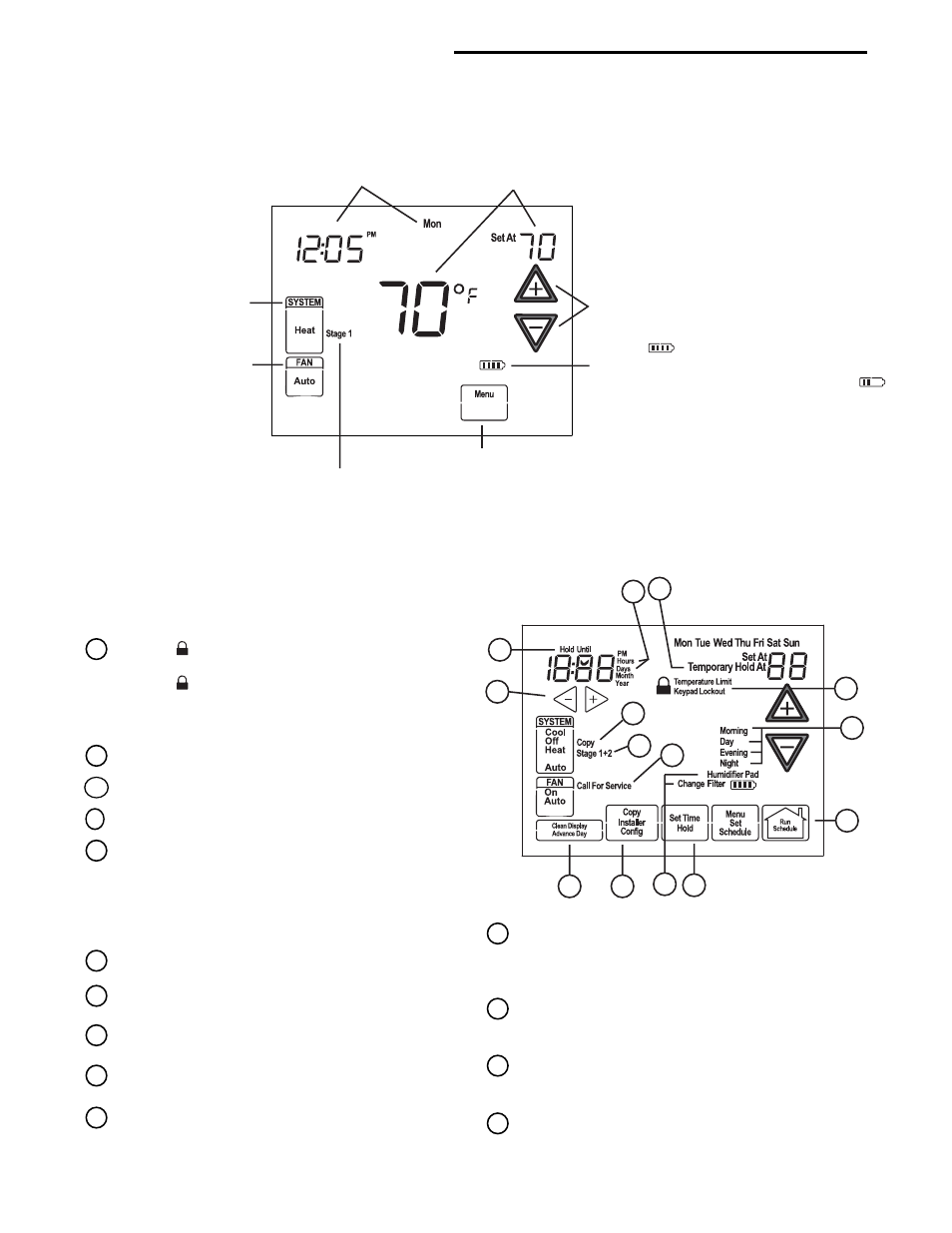

THERMOSTAT QUICK REFERENCE
Home Screen Description
Figure 2 – Home Screen Display
13 " Stage 1" indicates when heating or cooling stage is
energized. " +2" also indicates when a second stage is
energized.
14 " Copy" indicates the copy program feature is being
used during programming.
12 " Call For Service" indicates a fault in the heating/
cooling system. It does not indicate a fault in the
thermostat.
11 The words " Hold At" are displayed when the thermo-
stat is in the HOLD mode. "Temporary Hold At" is
displayed when the thermostat is in a temporary HOLD
mode.
10 " Hours" and "Days" displays during steps in installer
configuration.
9 " Hold Until" indicates the time when a temporary hold
period will end.
8 Used in programming to set time and in configuration
menu to change selections.
7 CLEAN DISPLAY button allows 30 seconds to wipe off
the display or ADVANCE DAY button for programming.
6 COPY button or INSTALLER CONFIG button.
5 Displays " Change Filter" when the system has run
for the programmed filter time period as a reminder
to change or clean your filter. Displays "
Humidifier
Pad" when the system has run for the programmed
filter time period as a reminder to change or clean your
humidifier pad.
2 Indicates period of day being programmed.
3 RUN SCHEDULE (run program) button.
4 SET TIME button or HOLD temperature button.
1 Displays and " Keypad Lockout" when in keypad
lockout mode.
Displays and "
Temperature Limit" and "Keypad
Lockout" when limited range is activated and locked.
Displays only "
Temperature Limit" when limited range
is activated.
Programming and Configuration Items
2
1
8
9
4
3
10
12
6
11
5 7
13
14
Figure 3 – Programming & Configuration Items
