11

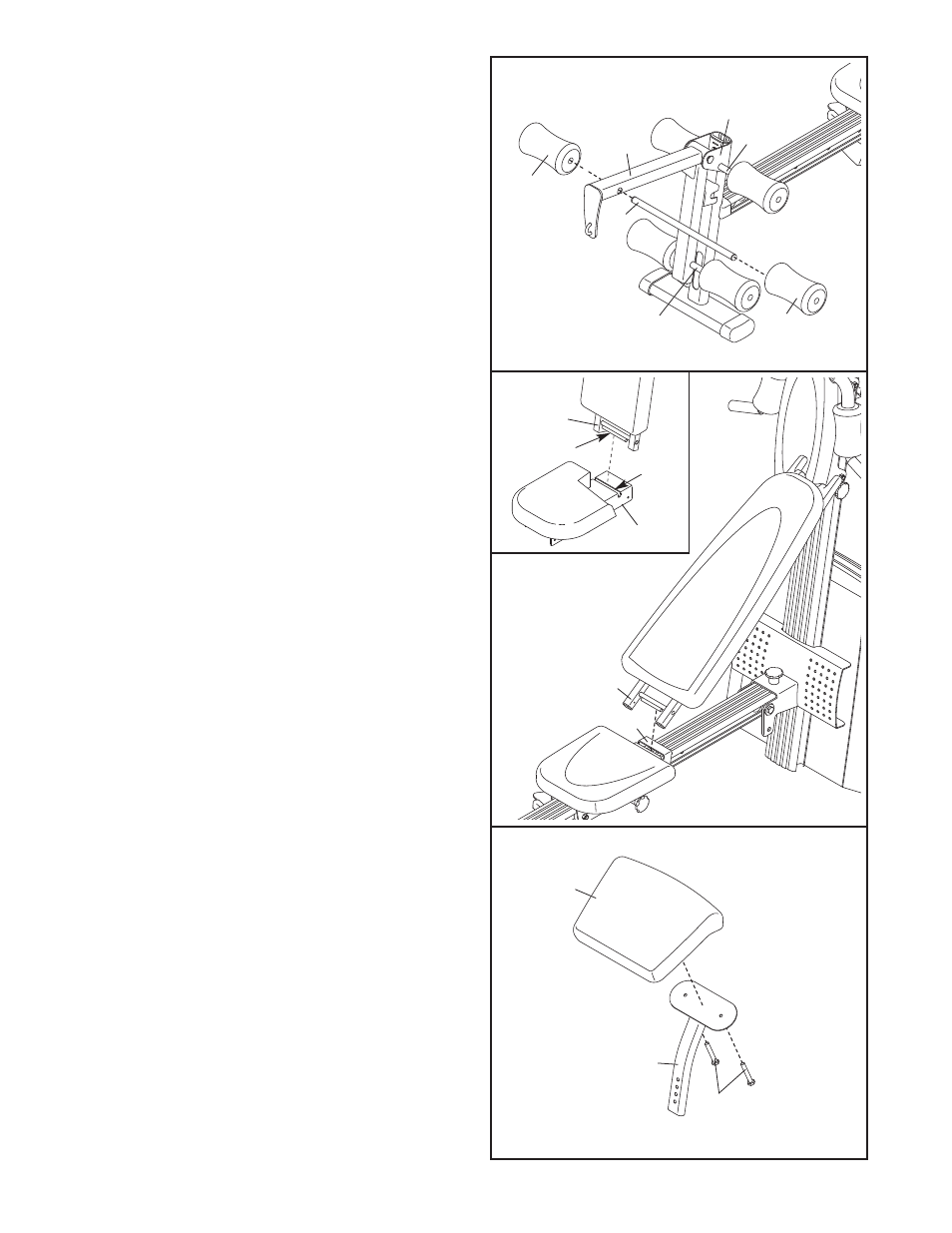

15. Slide a Pad Tube (50) into the Leg Lever (56).
Slide two Large Foam Pads (52) onto the Pad
Tube.
Attach the other two Pad Tubes (50) to the Leg
Lever (56) and the Leg (5) in the same manner.
15
52
52
50
50
50
5
56
16. Insert the rod on the Backrest Frame (32) into the
slot in the Seat Carriage (44). Hold the Backrest
Frame vertically over the Seat Carriage and
slide the rod into the slot, as shown in the
inset drawing.
16
17
32
32
44
44
Rod
Slot
17 . Attach the Curl Pad (43) to the Curl Post (42) with
two M6 x 16mm Screws (41).
18. Adjust the tension on the upper cable (not shown)
as described in UPPER CABLE ADJUSTMENT
on page 12.
19 . Make sure that all parts have been properly tight-
ened. The use of the remaining parts will be
explained in ADJUSTMENTS, beginning on page
13.
Before using the resistance system, turn on
the console and change the resistance setting
as described in CONSOLE OPERATION on
page 17.
43
42
41
