Weider WESY37530 - Manual (Page 16)

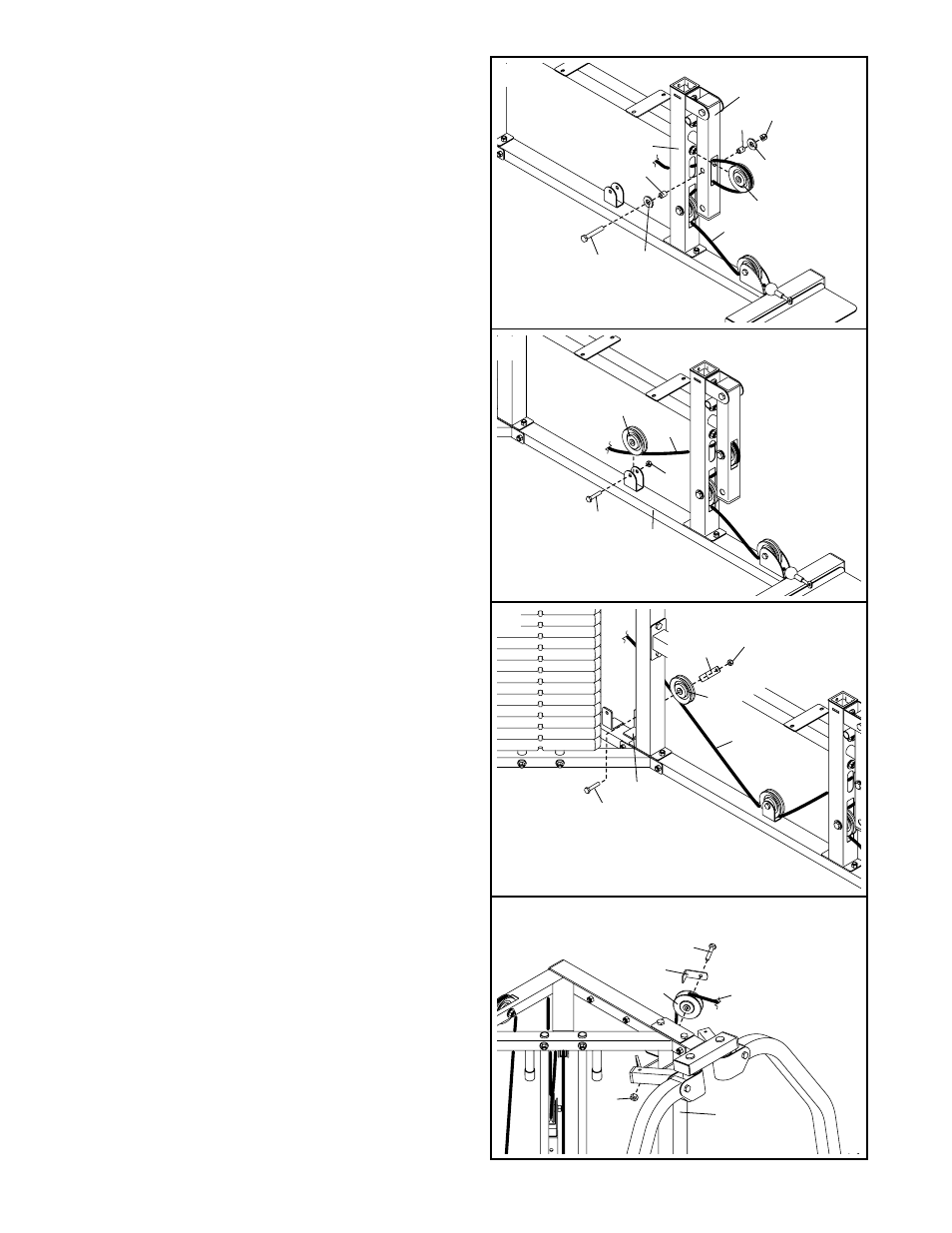

35. Route the Low Cable (63) through the Leg Lever
(18), around a 90mm Pulley (38), and back
through the Leg Lever and Left Leg (8). Attach the
Pulley inside the Leg Lever with an M10 x 67mm
Bolt (88), two M10 Washers (74), two 12mm
Spacers (57), and an M10 Nylon Locknut (75).
35
57
57
75
74
38
63
18
8
16
36. Wrap the Low Cable (63) under a 90mm Pulley
(38). Attach the Pulley to the Left Base (2) with an
M10 x 45mm Bolt (78) and an M10 Nylon Locknut
(75).
37. Wrap the Low Cable (63) under a 90mm Pulley
(38). Attach the Pulley and a Cable Trap (37) to
the indicated bracket on the Left Base (2) with an
M10 x 48mm Bolt (23) and an M10 Nylon Locknut
(75). Make sure the Cable Trap is oriented to
hold the Cable in the groove of the Pulley.
36
37
38
75
2
38
63
23
2
63
38
37
75
78
88
74
38. Wrap the Low Cable (63) over a “V”-pulley (40).
Attach the “V”-pulley and a Large Cable Trap (39)
to the bracket on the Left Upright (6) with an M10
x 60mm Bolt (82) and an M10 Nylon Locknut (75).
Make sure that the Cable Trap is turned to hold
the Cable in the groove of the “V”-pulley.
82
40
39
63
75
6
