13

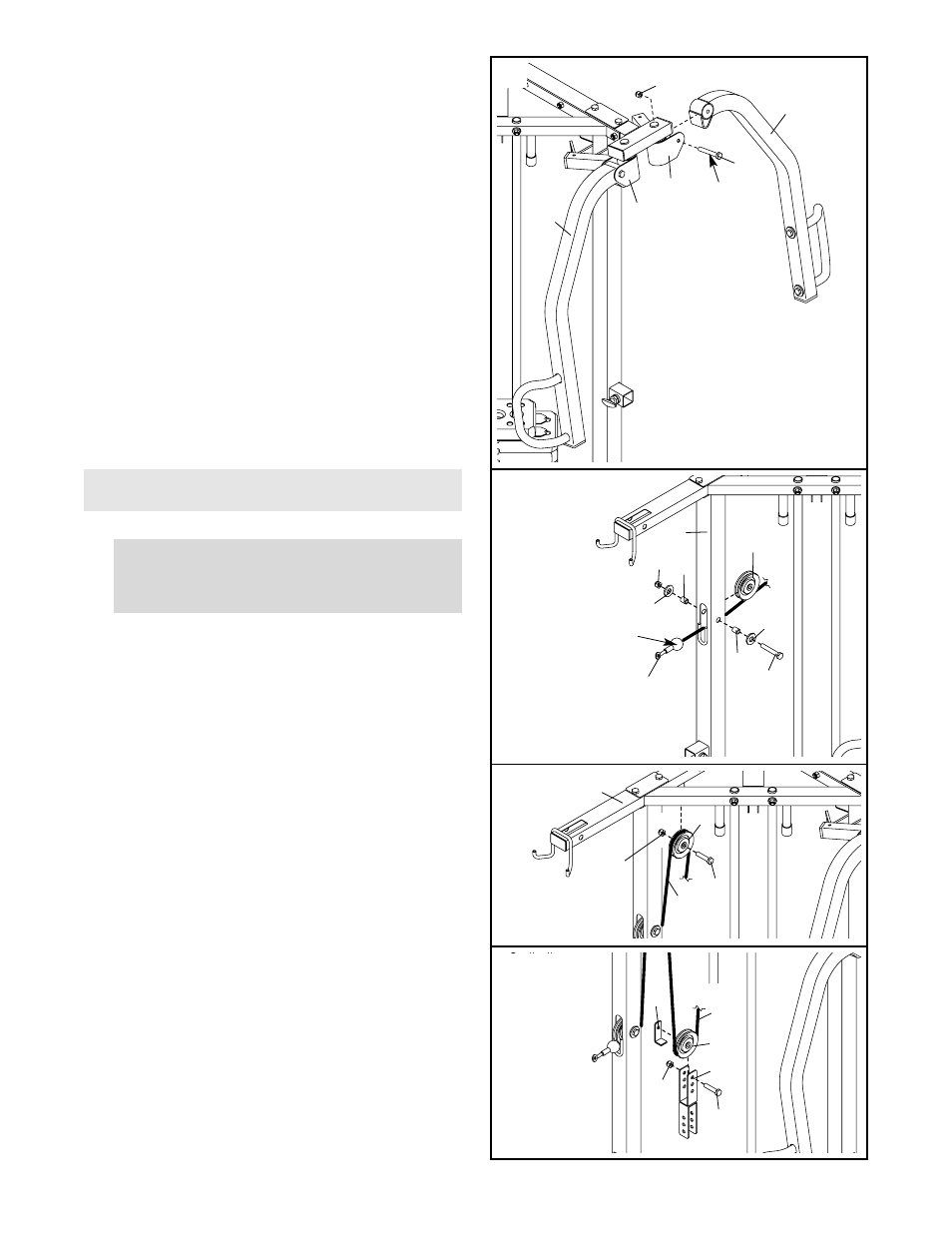

22. Lubricate an M10 x 81mm Bolt (85) with grease.
Attach the left Butterfly Arm (20) to the Left Fly
Pivot (21) with the Bolt and an M10 Nylon
Locknut (75).
Attach the right Butterfly Arm (20) to the Right
Fly Pivot (22) in the same manner.
23.
Locate the High Cable (61). Route the small ball
on the Cable (61) through the Right Upright (5)
and under a 90mm Pulley (38). Make sure the
Cable is over the welded bar inside the
Upright. Attach the Pulley inside the Upright with
an M10 x 78mm Bolt (86), two M10 Washers
(74), two 17mm Spacer (58), and an M10 Nylon
Locknut (75).
24. Wrap the High Cable (61) over a 90mm Pulley
(38). Attach the Pulley to the Right Top Frame
(10) with an M10 x 45mm Bolt (78) and an M10
Nylon Locknut (75).
22
Cable Assembly
IMPORTANT: Refer to the CABLE DIAGRAMS
on pages 27 and 28 for help identifying the
cables.
Lubricate 21
22
20
20
85
75
23
58
58
38
5
75
74
61
Large
Ball
74
86
24
75
38
10
78
61
25. Wrap the High Cable (61) under a 90mm Pulley
(38). Attach the Pulley and a Cable Trap (37) to
the first set of holes from the top of the Double
“U”-bracket (41) with an M10 x 48mm Bolt (23)
and an M10 Nylon Locknut (75). Make sure the
Cable Trap is turned to hold the Cable in the
groove of the Pulley.
25
37
41
23
75
61
38
