NOTE: When performing the following step,
be sure the starter rope is not caught under
the cable clamps. The starter rope must
hang freely to operate properly.
Cable
clamps
Starter rope
Throttle
cable
7. Align one cable clamp above the tube bolts
and the other below the starter rope han-
dle. Install the cable clamps one at a time
around the tube and throttle cable.
NOTE: Ensure throttle cable is in groove of
clamps and lies flat against the upper handle
tube after installation (see illustration above).
OPERATION

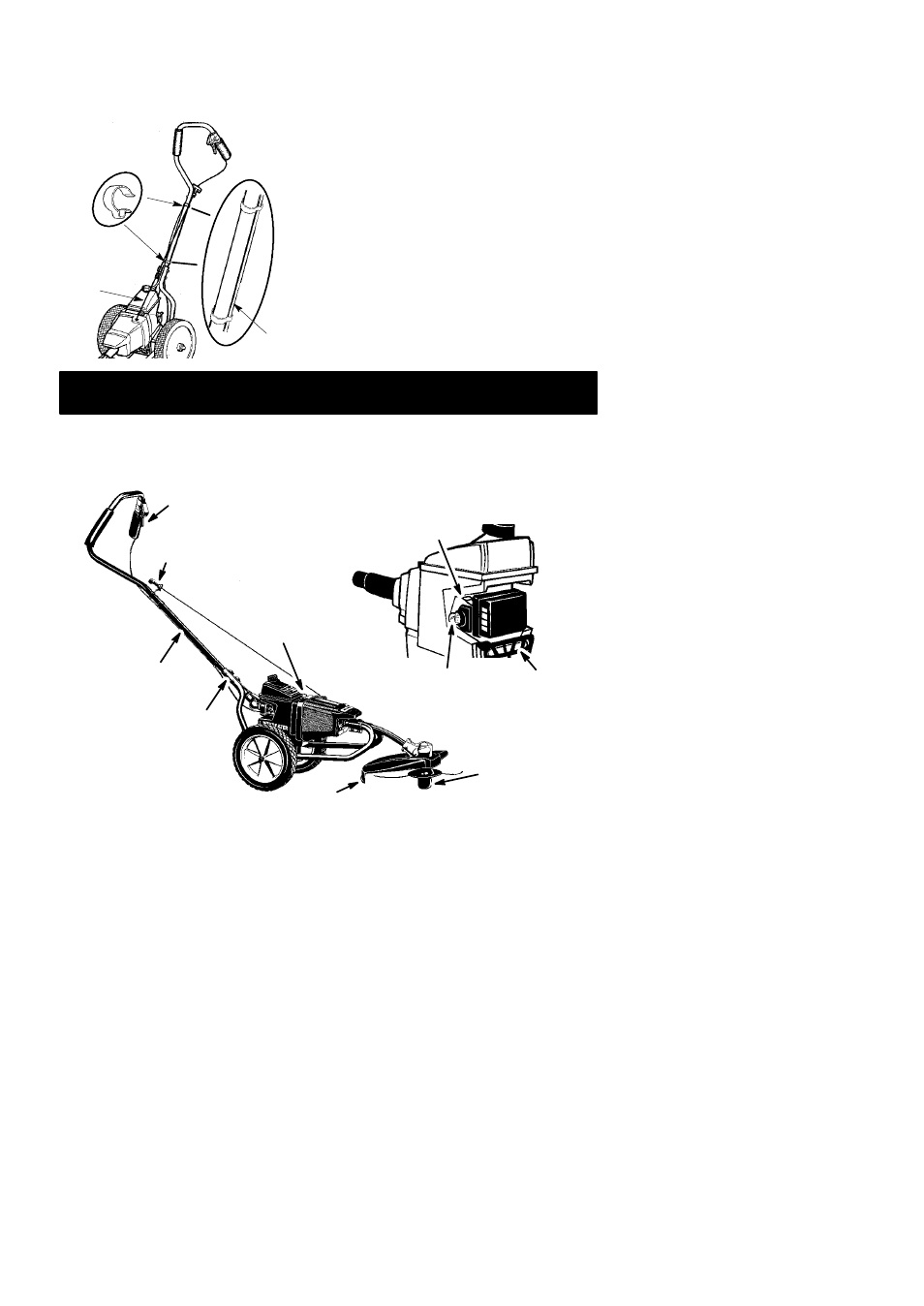

KNOW YOUR TRIMMER
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT.
Compare the illustrations with your unit to familiarize yourself with the location of the various controls
and adjustments. Save this manual for future reference.
Primer Bulb
Starter Rope
Handle
ON/OFF
Switch
Throttle Trigger
Choke Lever
Shield
Shield
Trimmer Head
Muffler
Upper Handle
Lower Handle
ON/OFF SWITCH
The ON/OFF switch is used to stop engine. To
stop the engine, move the switch to the OFF
position.
PRIMER BULB
The PRIMER BULB removes air from the car-
buretor and fuel lines and fills them with fuel.
This allows you to start the engine with fewer
pulls on the starter rope. Activate the primer
bulb by pressing it and allowing it to return to
its original form.
CHOKE
The CHOKE helps to supply fuel to the engine
to aid in cold starting. Activate the choke by
moving the choke lever to the FULL CHOKE
position. After the engine attempts to start, move
the choke lever to the HALF CHOKE position.
Once engine has started, move the choke lever
to the OFF CHOKE position.
