Copyright 2006 Wind Crest by CNP Industries 2
Install Quick Specs are for planning purposes only. Please refer to the detailed installation
instructions, prior to making any cutouts.

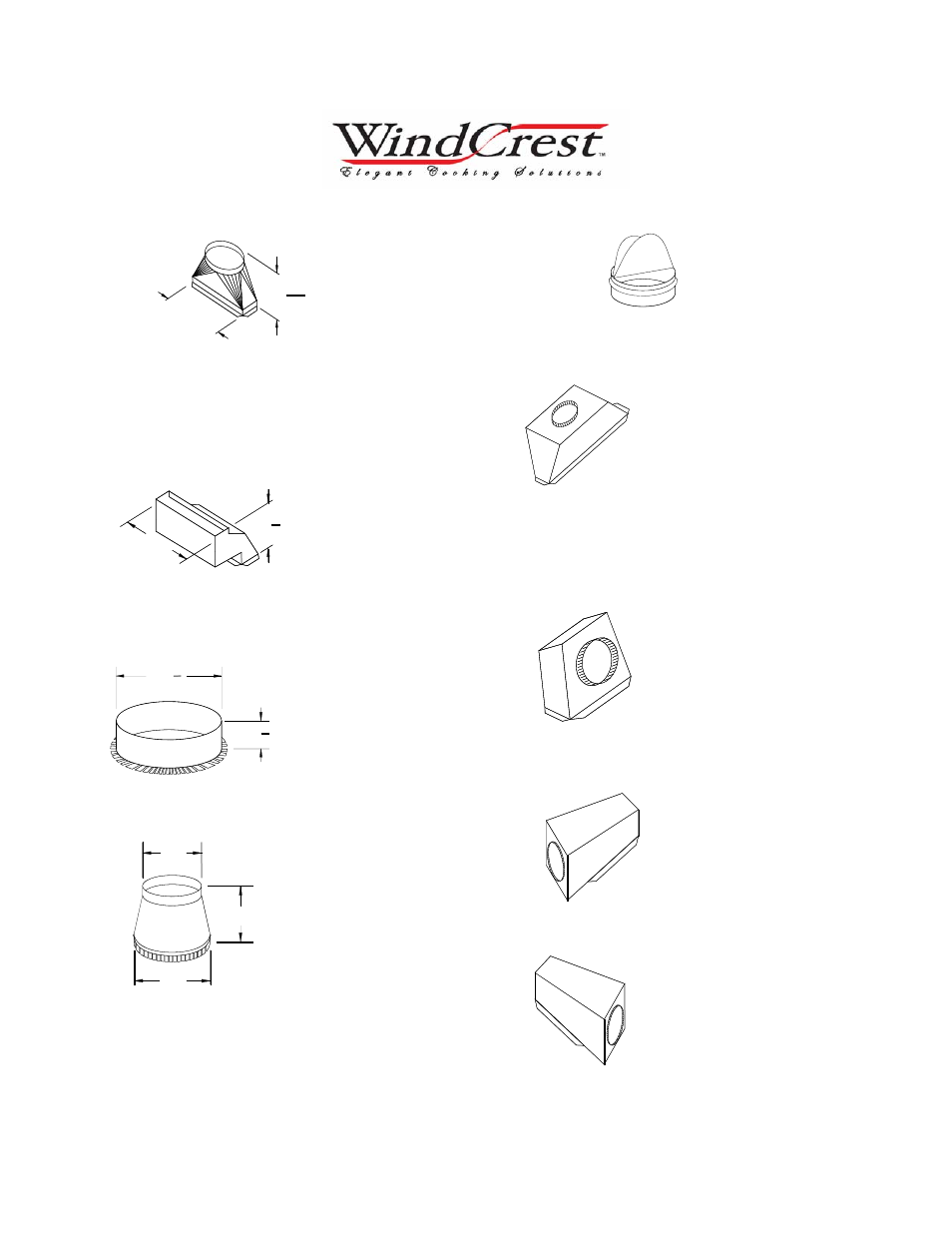

Internally Mounted Ventilators – Install Quick Specs
VEN100E
#10172 = 10” round Starting Collar
#10173 = 10” to 8” Round Adapter
#10288 = 8” Round Backdraft Damper
#10289 = 10” Round Backdraft Damper
#10542 = Plenum Transition to 10” round (use
with dual Internal or Remote blower on 48” and
larger WSL, WCL, WER60 or PSL66 hoods)
#10377 = 10” Round Rear Discharge
#10566 = 10” Round Left Side Discharge
#10378 = 10” Round Right Side Discharge
1 4
8
2
1
1 4
6
2
1
#10100 = 14” w X 4 ¼” d x 8 ½” h
Rectangular to 8” Round duct
#10287 = 14” w X 4 ¼” d x 8 ½” h
Rectangular to 10” Round duct
#10099 = 14” w x 4 ¼” d x 6 ½” h
Rectangular transition
1 0
4
1
5
2
1
1 0
8
7
11 ½” h x 32 ¾” w
11 ½” h x 14” w
11 ½” h x 16” w
11 ½” h x 16” w
