13. Make sure that all parts are properly tightened
before you use the weight bench. The use of
all remaining parts will be explained in ADJUST-
MENTS, beginning on the following page.
9

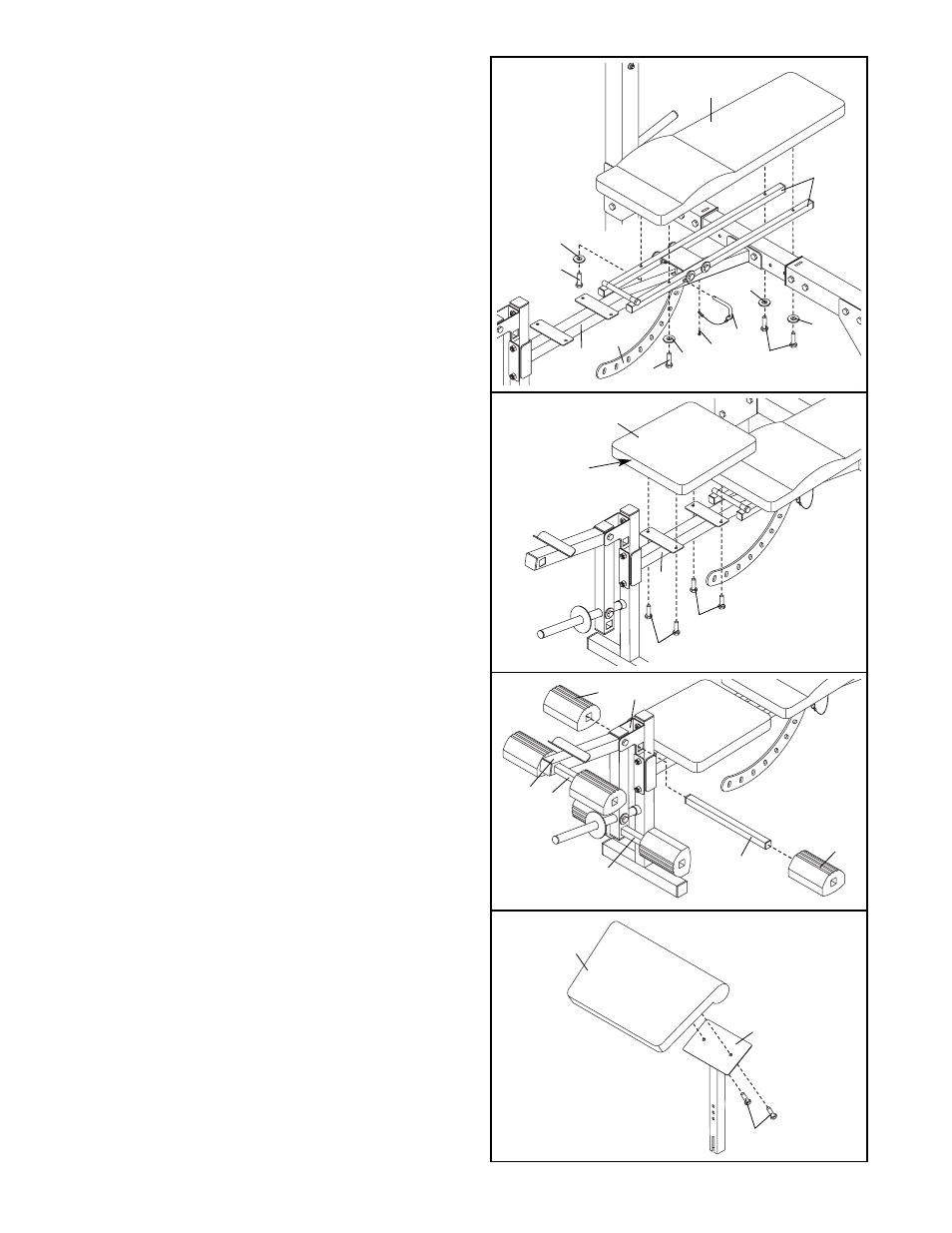

9. Attach the Backrest (13) to the Backrest Tubes
(12) with four M6 x 38mm Bolts (40) and four M6
Washers (50).
Attach the tether on the Adjustment Pin (25) to
the Bench Frame (1) with an M4 x 16mm Screw
(45). Insert the Pin through the Bench Frame and
the Backrest Bracket (10).
Tighten the four M8 Nylon Locknuts (51) used
in step 7.
10. Attach the Seat (14) to the Bench Frame (1), with
the wide end toward the front, with four M6 x
16mm Screws (37).
11. Slide a Pad Tube (19) into the square hole in the
Front Leg (2). Slide two Foam Pads (20) onto the
Pad Tube. Make sure the Foam Pads are ori-
ented as shown.
Repeat this step with the other two Pad Tubes
(19) and the Leg Lever (3).
12. Attach the Curl Pad (15) to the Curl Post (11) with
two M6 x 16mm Screws (37).
12
13
50
50
40
10
1
40
45
25
40
9
14
Wide
End
37
37
50
50
1
3
20
20
2
15
11
37
19
19
19
10
11
12
