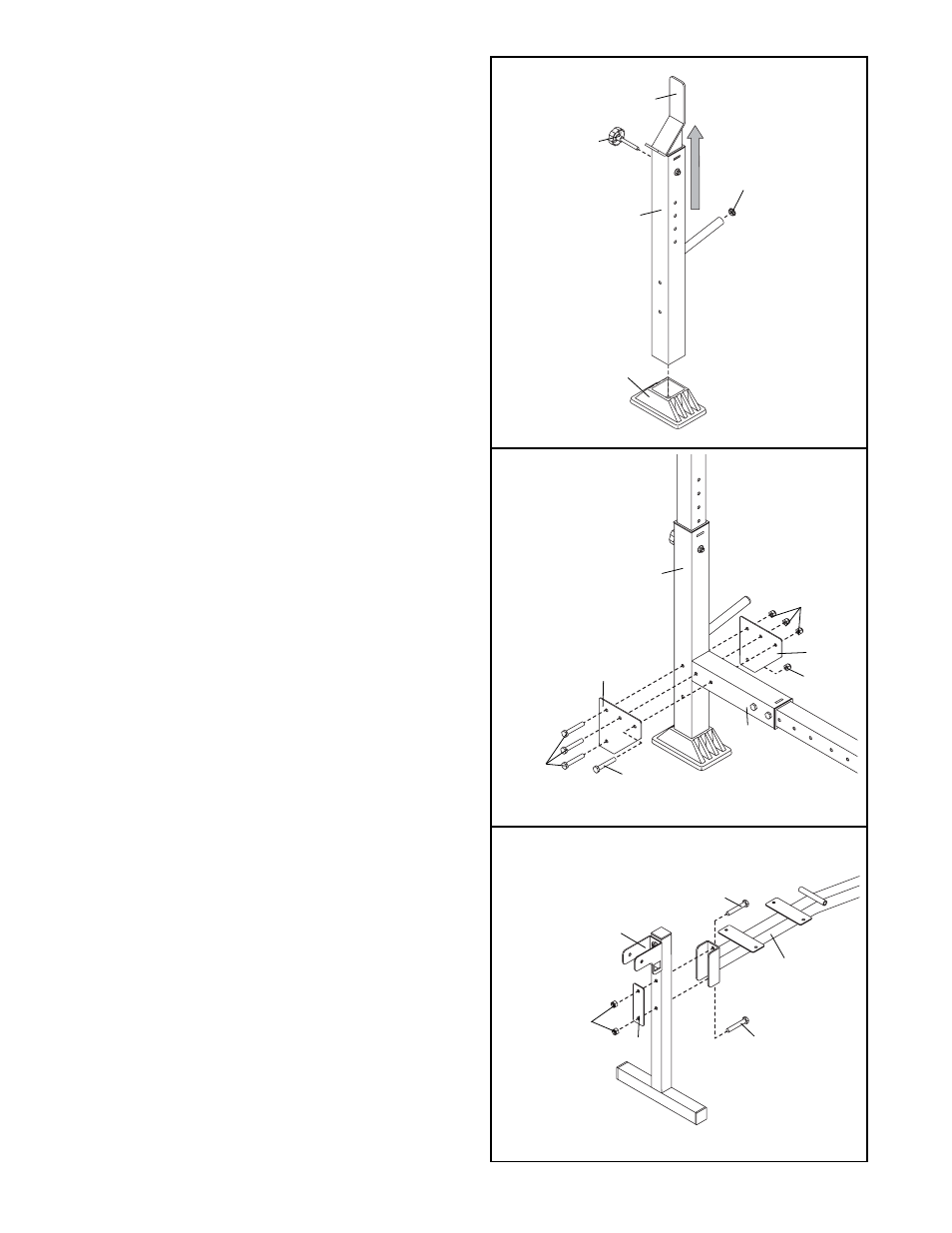

3. Attach the Right Upright (7) to the right Crossbar
Extension (5) with four M10 x 95mm Bolts (38),
two Joint Plates (18), and four M10 Nylon
Locknuts (48). Do not tighten the Locknuts yet.
Repeat this step with the Left Upright (not
shown).
4. Attach the Front Leg (2) to the Bench Frame (1)
with two M10 x 67mm Bolts (35), the Plate (31),
and two M10 Nylon Locknuts (48). Do not tight-
en the Locknuts yet.
2. Press a 25mm Round Inner Cap (33) into the
tube on the Right Upright (7). Press a Foot (29)
onto the bottom of the Right Upright.
Lift the Weight Rest (9) in the Right Upright (7)
and secure it in a raised position with a Weight
Rest Knob (23).
Repeat this step with the Left Upright (not
shown).
