7

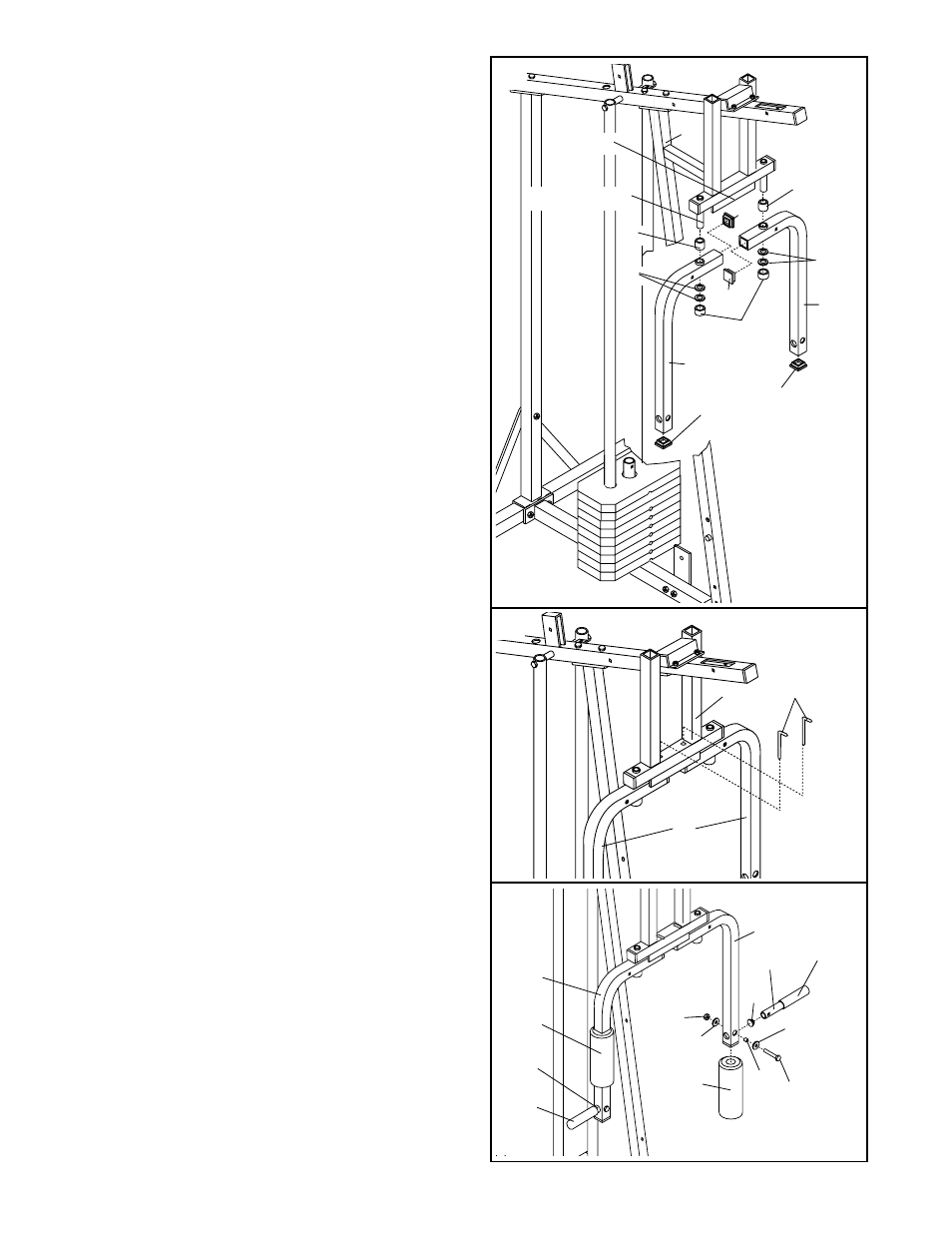

9. Press two 1 3/4” Inner Caps (44) into each of the
Arms (46).
Apply lubricant to the lower axles on the Arm
Frame (52). Slide a Plastic Bushing (53) and an
Arm (46) onto one of the axles. The upper end of
the Arm must be between the Front Upright (42)
and the bracket on the Arm Frame (52). Hold two
1” Retainers (54) and a 1” Round Cover Cap (55)
against the lower end of the axle. The teeth on the
Retainers must bend toward the Round Cover
Cap. Tap the Retainers and Round Cover Cap onto
the axle.
Attach the other Arm (46) to the Arm Frame (52) in
the same manner.
10. Insert the two 4 1/2” “L” Pins (60) down through
the indicated holes in the Arm Frame (52) and the
Arms (46).
11. Wet the lower ends of the Arms (46) and the
insides of the two 10” Pads (45) with soapy water.
Slide a Pad about halfway up each Arm.
Insert a 7” Handle (47) with a Handgrip (48) into
one of the Arms (46). Attach the Handle with a 5/16”
x 2 1/4” Bolt (33), two 5/16” Flat Washers (8), a
1/2” x 3/8” Spacer (51) and a 5/16” Nylon Lock Nut
(3).
Attach a 7” Handle (47) with a Handgrip (48) to the
other Arm (46).
Press a 1” Round Inner Cap (49) into each 7”
Handle (47).
9
55
44
60
52
46
47
48
48
47
45
33
8
49
8
45
46
46
3
51
46
46
44
53
Bracket
52—Lubricate
53
54
44
44
42
54
10
11
