Weslo WLSY71500 User Manual

Page 11

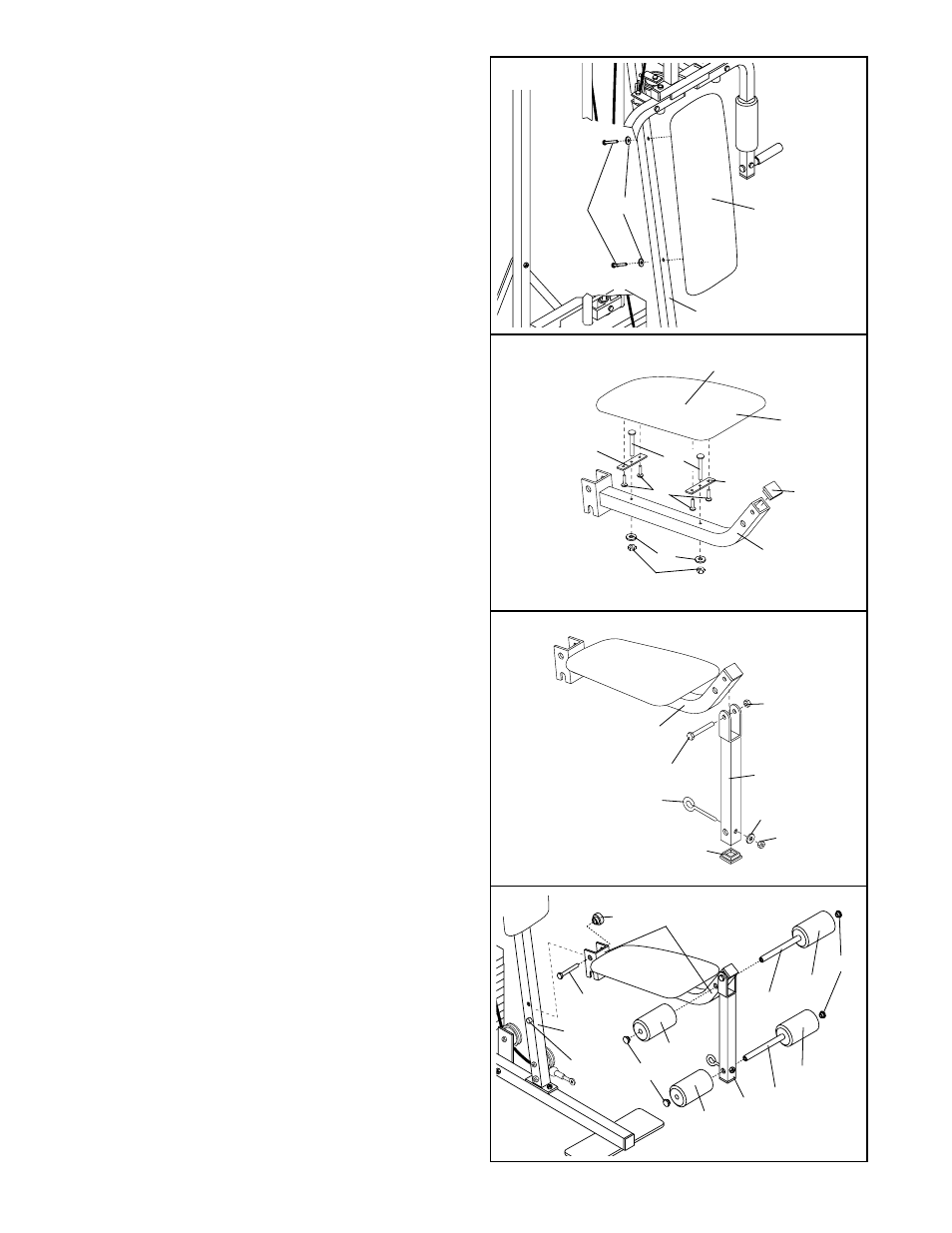

23. Attach the Backrest (41) to the Front Upright (42)

with two 1/4” x 2 1/2” Screws (43) and 1/4” Flat
Washers (10).

24. Press a 1 1/2” Inner Cap (32) into the Seat Frame

(36).

Insert a 1/4” x 2” Carriage Bolt (38) into the center
of each Seat Plate (37). Attach the Seat Plates to
the Seat (13) with four 1/4” x 3/4” Screws (18).

Insert the two 1/4” x 2” Carriage Bolts (38) into
the Seat Frame (36). Make sure that the Seat
(13) is turned so the wide end is towards the
1 1/2” Inner Cap (32). Tighten two 1/4” Nylon
Lock Nuts (7) with 1/4” Flat Washers (10) onto the
Carriage Bolts.

25. Press a 1 1/2” Inner Cap (32) into the Leg Lever

(29).

Lubricate a 5/16” x 2 1/4” Bolt (33). Attach the
Leg Lever (29) to the Seat Frame (36) with the
Bolt and a 5/16” Nylon Lock Nut (3). Do not
overtighten the Nylon Lock Nut; the Leg Lever
must be able to pivot freely.

Insert the 5/16” x 2” Eyebolt (35) through the Leg
Lever (29) from the indicated side. Slide a 5/16”
Flat Washer (8) onto the Eyebolt and tighten a
5/16” Nylon Lock Nut (3) onto the Eyebolt.

26. Set the bracket on the Seat Frame (36) on the

indicated pins on the Front Upright (42). Attach
the Seat Frame with a 5/16” x 2 3/4” Carriage
Bolt (14) and the Seat Knob (40).

Press 3/4” Round Inner Caps (34) into the ends
of the 13 1/2” Pad Tube (28) and the 13” Pad
Tube (31).

Insert the 13 1/2” Pad Tube (28) into the Seat
Frame (36). Slide a 6” Pad (30) onto each end of
the Pad Tube.

Insert the 13” Pad Tube (31) into the Leg Lever
(29). Slide a 5 3/4” Pad (50) onto each end of the
Pad Tube.

Wide
End

33—Lubricate
