12
%&36,QVWDOODWLRQDQG2SHUDWLRQ0DQXDO
---- MAINTENANCE ----
Unit F
Present Time12:30P
BACK SELECT
------ SETTINGS ------
Season Winter
Set Point 9 psi
EMS SetPoint 9 psi
BACK SELECT

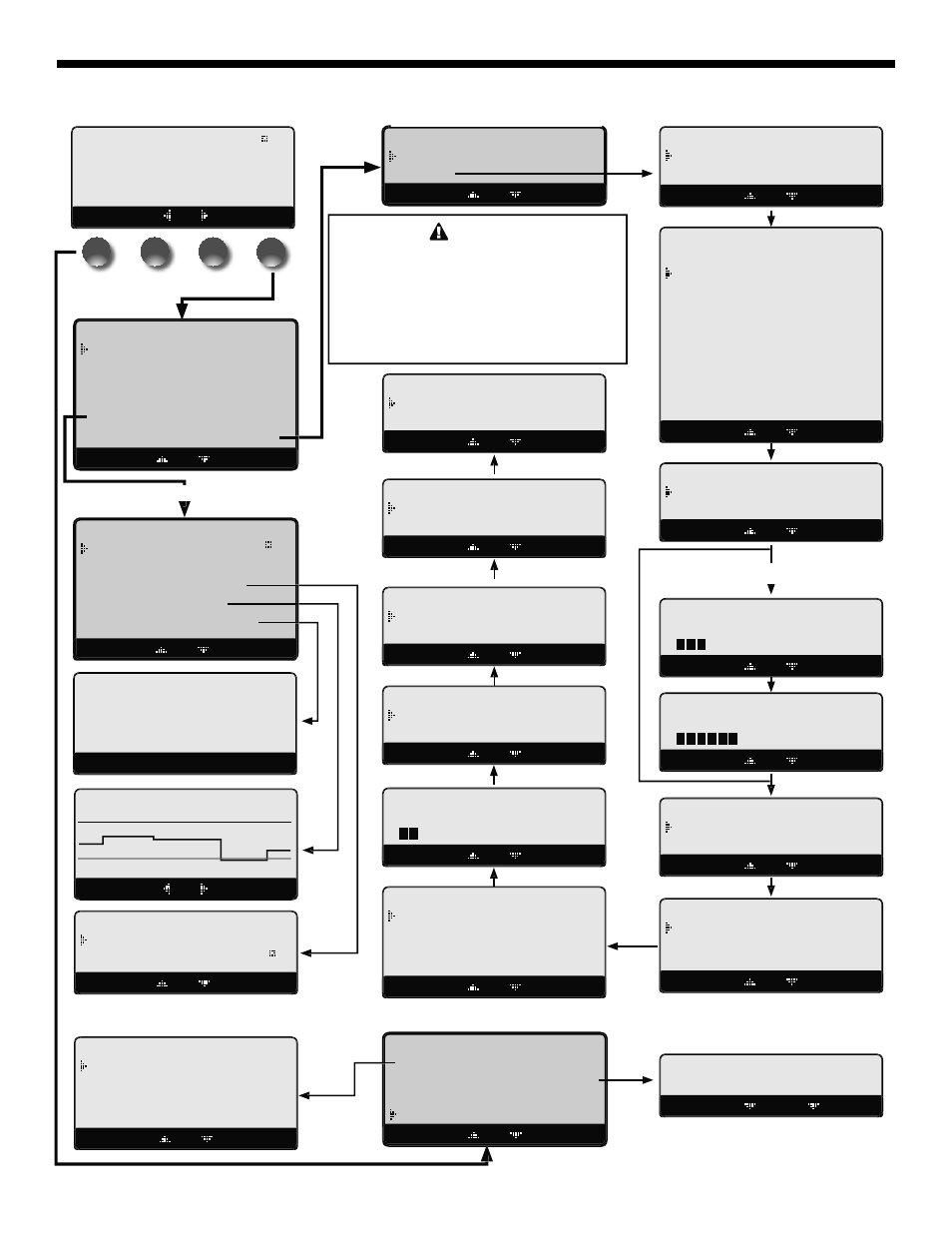

,167$//(5 0(18 6(48(1&(
-- CONTROL MODE ---
Set Point
EMS 4-20mA
BACK SAVE
-DISPLAY STANDARD -
English
Metric
BACK SAVE
EMS 4mA SET POINT
0 psi
[ ]
BACK SAVE
EMS 20mA SET POINT
30 psi
[ ]
BACK SAVE
-COMB. AIR OUTPUT-
No
Yes
BACK SAVE
-- EXTERNAL INPUT -
Shutdown
Tstat
Setback
BACK SAVE
--- BURNER TYPE ----
On/Off
2-Stage
3-Stage
4-Stage
BACK SAVE
-- TOTAL BOILERS --
8
[ ]
BACK SAVE
------ STAGING ------
Multiple Outputs
Single Output
BACK SAVE
------ SEQUENCE -------
Lo/Hi/Lo/Hi
Lo/Lo/Hi/Hi
BACK SAVE
--- CONTROL LOGIC---
PID
OSS
BACK SAVE
--- SENSOR FAULT ---
Stages On
Stages Off
BACK SAVE
ARE YOU SURE?
No
Yes
BACK SAVE
(06 6(7 32,17
--- SENSOR TRIM ----
Sys Trim +0.0 psi
Outdoor Trim +0 F
BACK SELECT
Sys=10 psi 10:00AM
BACK NEXT
$/(57
‡7RDFFHVV,QVWDOOHU0HQXKROGGRZQ
the Menu button for over three
seconds.
‡7REHDEOHWRFKDQJHWKH%&36
settings the Program/Run Switch must
be set to Program.
6 67$5783
& 0$,17(1$1&(
BCP-8S V1.00
Pressure 30psi
EMS 4-20mA, Shtdown
0psi - 30psi
BACK NEXT
--- SENSOR TYPE ---
Pressure 15psi
Pressure 30psi
Pressure 100psi
Pressure 200psi
Pressure 300psi
Pressure 0.250MPa
Pressure 0.600MPa
Pressure 1.000MPa
Pressure 1.600MPa
Vacuum 3in/762mm
BACK SAVE
----- BOILER AB -----
Mode Auto
Runtime 58Hrs
BACK SAVE
- BOILER AB MODE -
Auto
Standby
Off
On
BACK SAVE
BOILER AB Runtime
58hrs
BACK CLEAR OK
2 %2,/(5 0(18
8.5
psi
45
F
TGT=9.0 psi
ABC
---- LO
Boiler Menu
