Weider 831.153971 User Manual
Page 9

9

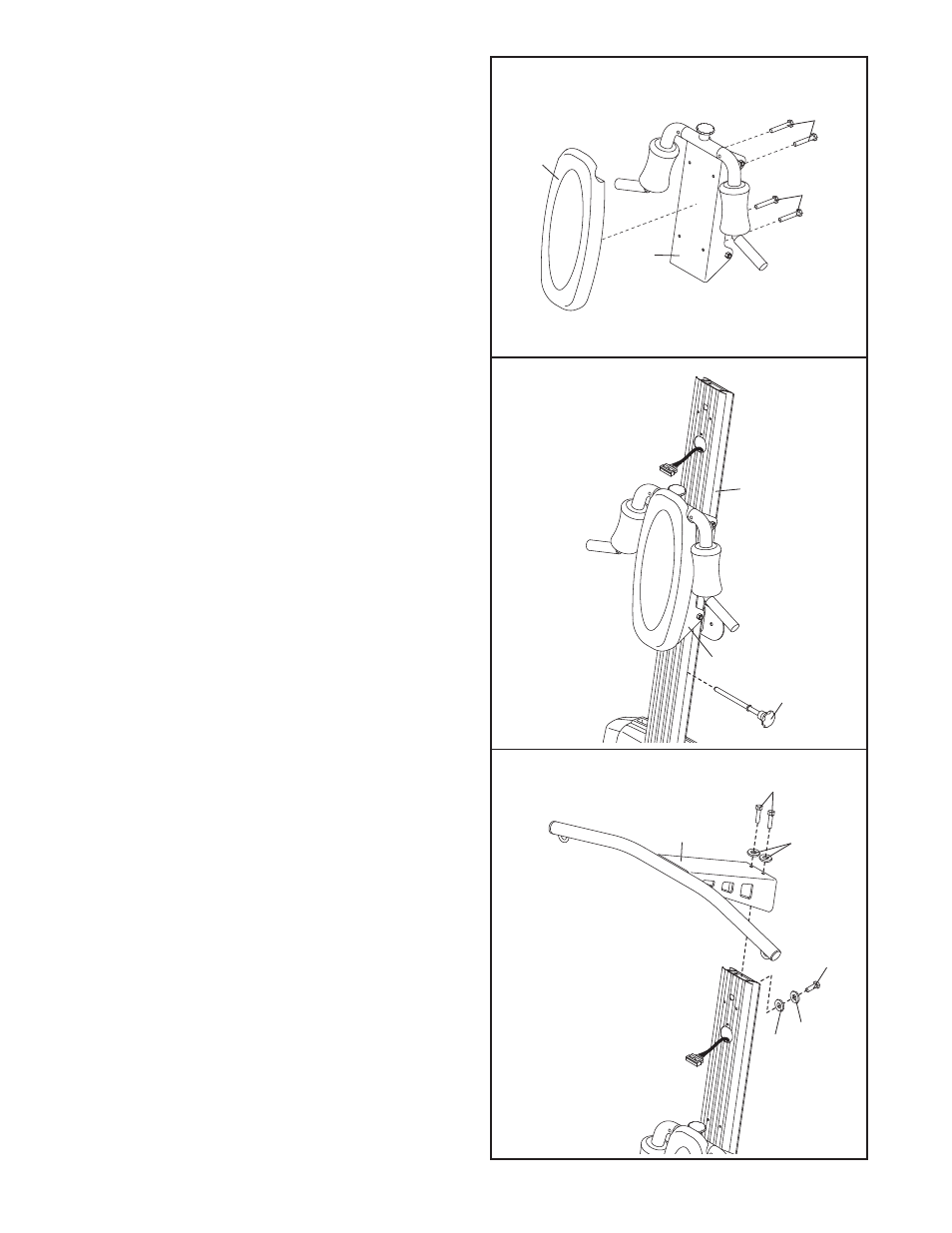

14. Attach the Top Frame (37) to the Upright (2) with
two M10 x 25mm Button Screws (88), an M10 x
75mm Button Screw (84), three M10 Lock
Washers (75), and an M10 Washer (106).
14
75
106
84
75
88
37
13. Insert the Squat Pin (66) into the Upright (2).
Slide the Squat Carriage (19) onto the Upright (2).
13
19
2
66
12. Attach the Squat Backrest (25) to the Squat
Carriage (19) with four M6 x 16mm Screws (41).
41
19
25
41
12
