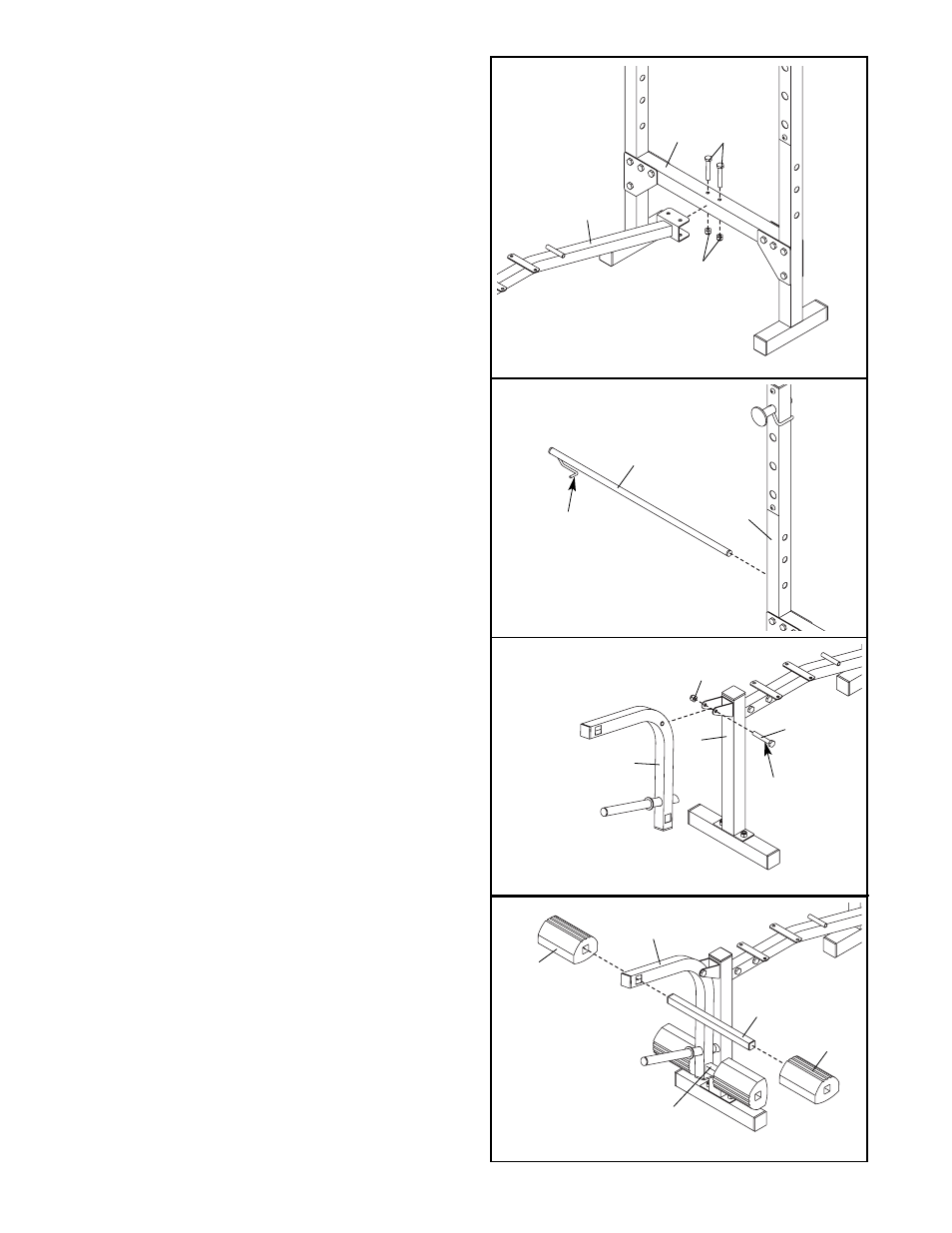

6. Insert the Support Rod (14) into a set of holes in
the Uprights (1). Turn the Support Rod so the
locking pin is wrapped around the Upright.
Tighten the M10 Nylon Locknuts (31) used in
steps 1–5.
1
14
6
8
5. Attach the Bench Frame (3) to the Crossbar (2)
with two M10 x 70mm Bolts (27) and two M10
Nylon Locknuts (31).
7. Lubricate the M10 x 63mm Bolt (25) with grease.
Attach the Leg Lever (6) to the Front Leg (4) with
the Bolt and an M10 Nylon Locknut (31). Do not
overtighten the Locknut; the Leg Lever must
be able to pivot easily.
8. Slide a Pad Tube (12) into the Leg Lever (6).
Slide two Foam Pads (13) onto the ends of the
Pad Tube. Make sure the Foam Pads are ori-
ented as shown.
Repeat this step with the other Pad Tube (12).
6
13
13
12
12
Locking
Pin
25
31
3
2
31
27
5
Lubricate
6
4
7
8
