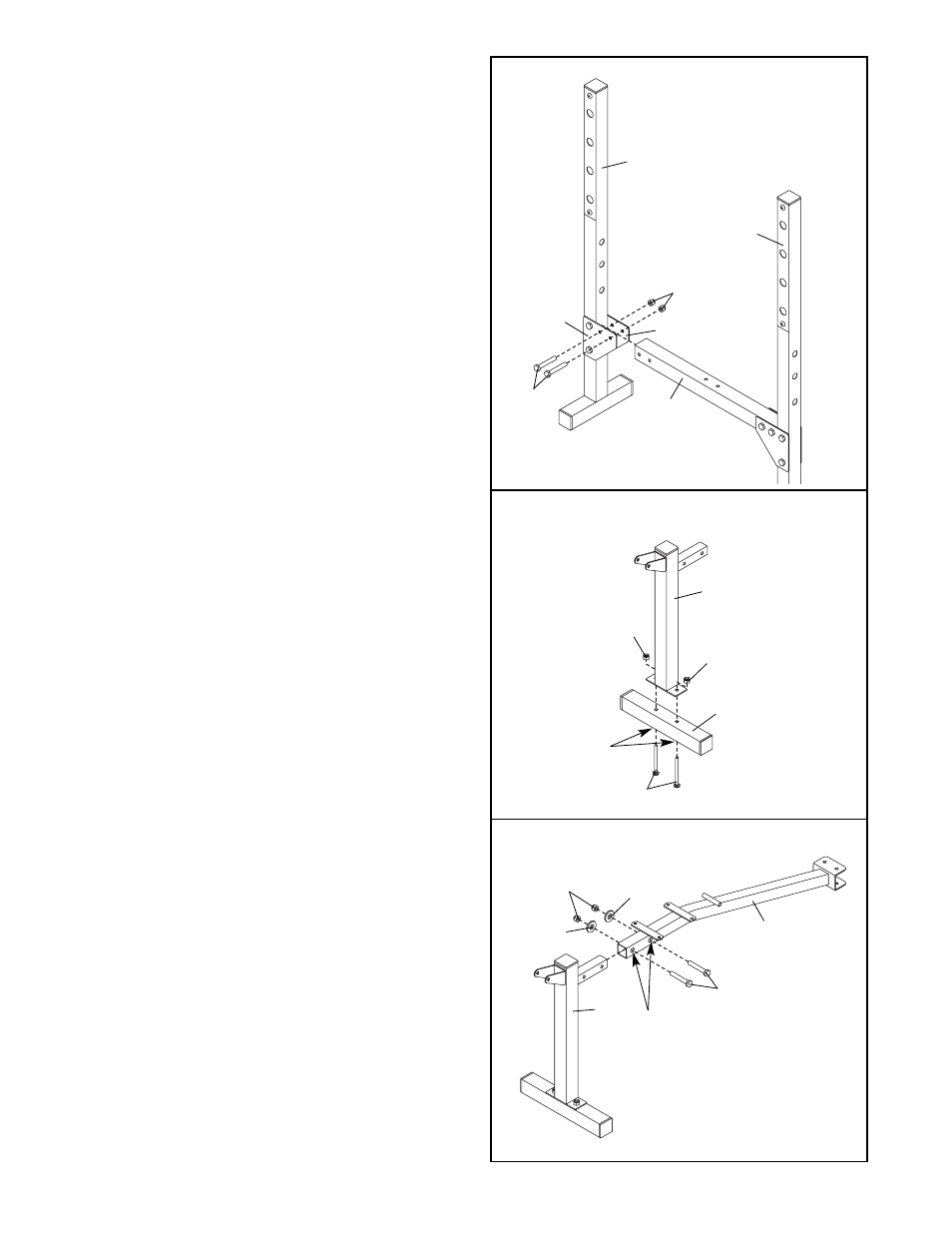

2. Attach the Crossbar (2) to an Upright (1) with two
M10 x 70mm Bolts (27), two Joint Plates (11),
and two M10 Nylon Locknuts (31). Do not tight-
en the Locknuts yet.
Repeat this step with the other Upright (1).
3. Attach the Front Leg (4) to the Stabilizer (5) with
two M10 x 65mm Carriage Bolts (26) and two
M10 Nylon Locknuts (31). Do not tighten the
Locknuts yet. Make sure that the indents
around the holes in the Stabilizer are on the
bottom.
4. Attach the Front Leg (4) to the Bench Frame (3)
with two M10 x 50mm Bolts (28), two M10
Washers (30), and two M10 Nylon Locknuts (31).
Do not tighten the Locknuts yet. Make sure
the bolt heads fit inside the hexagon holes in
the Bench Frame.
