Step 1: Installing the ECR Lock

CAUTION

DO NOT DRILL LOCK SECTION

OR INSTALL LOCK ON DOORS WITH OPENERS.

THE DOOR AND/ OR OPENER MAY BE DAM-

AGED IF THE OPENER IS USED WHILE THE

DOOR IS LOCKED.

NOTE: Common practice for doors with the odd

number of raised panels is to mount the lock towards

the right side of the section when looking out.

IMPORTANT: Remove all burrs from the drilled

holes before installing the lock to the section.

8000/8100/8200/PR9000 & PR9050 Series doors (see

Fig.1), place the lock section face down on (2) padded

sawhorses for a single car door or (3) padded sawhorses

for a double car door. locate the (4) hole pattern in the

center stile of the lock section. Use the (4) holes as a

template to drill (4) 1/8” holes through the section. Flip

the section over, face up. With the section face up, enlarge

the (3) bottom holes to 3/4” diameter and the top hole to

1-1/4” diameter, pay close attention not to drill com

-

pletely through the section into the center stile.

NOTE: Do not drill through or enlarge holes in the

center stile.

8300/8500/9700 Series & Wood doors (see Fig.2), place

the lock section face up on (2) padded sawhorses for a

single car door or (3) padded sawhorses for a double

car door. Locate the middle of the center stile, measure

the distance from the end of the section to the middle of

the center stile. Turn the section face down, transfer the

measurement and mark a light vertical line, then mark a

horizontal line at half the section height. Align the 7/16”

diameter hole of the lock backup plate at the intersection

point of the horizontal and vertical marks, use the lock

backup plate as a template to mark the (4) holes, remove

the lock backup plate and drill the (3) bottom holes to

3/4” diameter and the top hole to 1-1/4” diameter, drilling

all (4) holes completely through the section.

9000 Series doors (see Fig.3), place the lock section

face up on (2) padded sawhorses for a single car door or

(3) padded sawhorses for a double car door. Locate the

middle of the center stile, measure the distance from the

end of the section to the middle of the center stile. Turn the

section face down, transfer the measurement and mark a light vertical line. Align the center of the lock stile with

vertical mark, use the lock stile as a template to mark the (4) holes, remove the lock stile and drill the (3) bottom

holes to 3/4” diameter and the top hole to 1-1/4” diameter, drilling all (4) holes completely through the section.

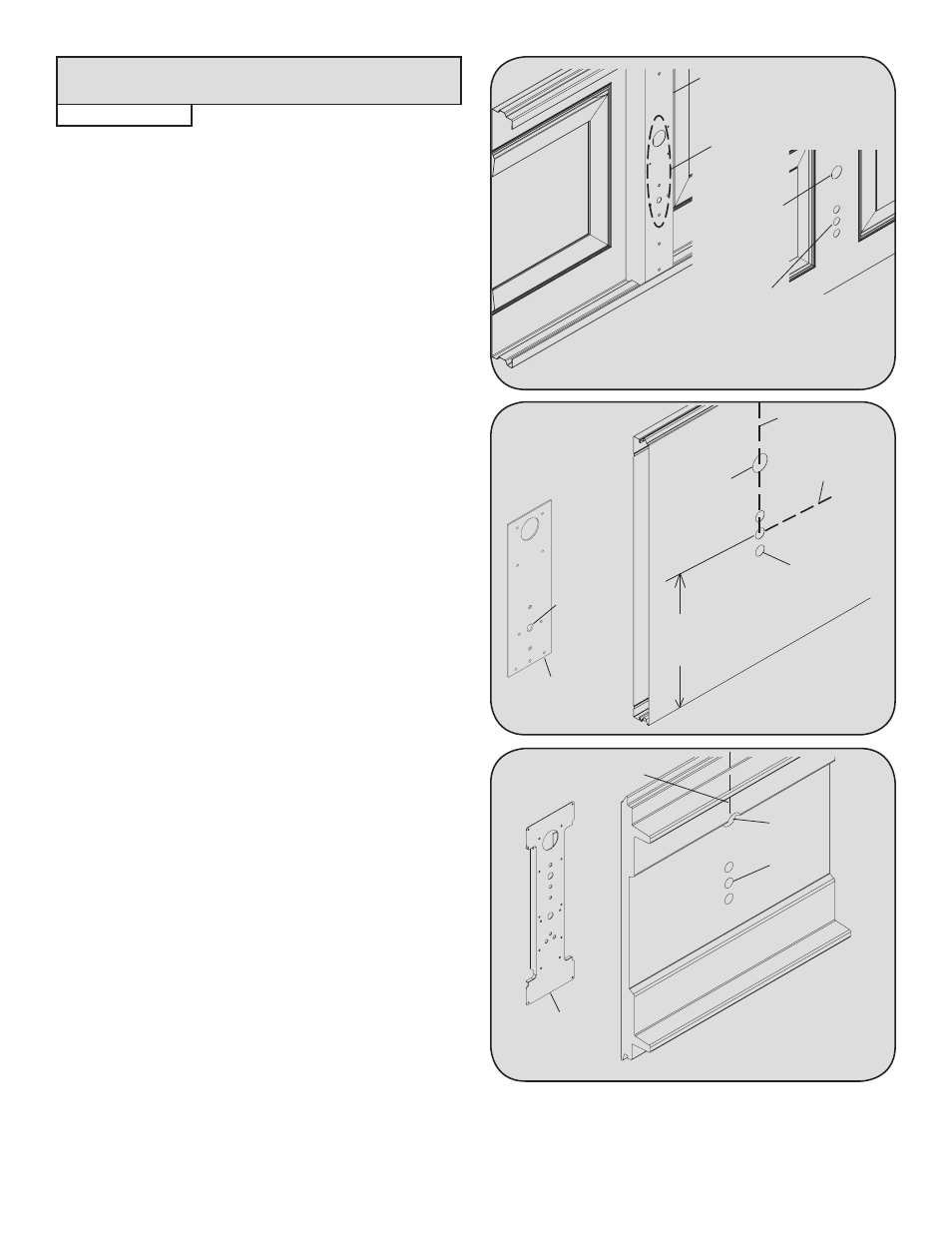

FACE DOWN

FACE DOWN

Fig. 2

Fig. 3

FACE DOWN

FACE UP

Fig. 1

(4)PRE-PUNCHED

HOLES

CENTER STILE

(3) 3/4” DIA.

HOLES

VERTICAL

LINE

HORIZONTAL

LINE

(3) 3/4”DIA.

HOLES

VERTICAL

LINE

LOCK STILE

(3) 3/4” DIA.

HOLES

LOCK BACKUP

PLATE

(1) 1-1/4” DIA.

HOLE

(1) 1-1/4” DIA.

HOLE

(1) 1-1/4” DIA.

HOLE

1/2 THE

SECTION

HEIGHT

7/16” DIA.

HOLE
