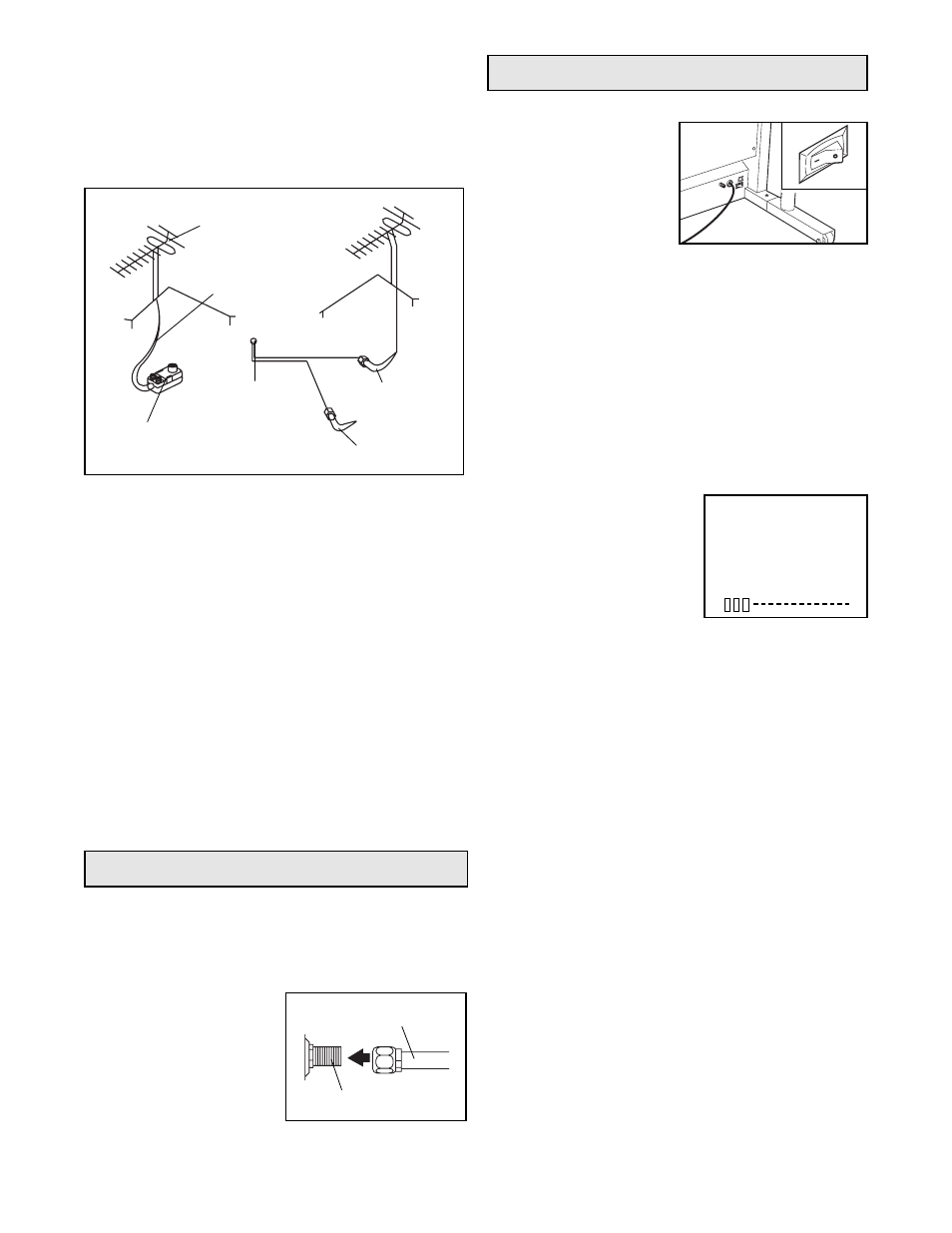

Outdoor Antenna
Outdoor antennas are subject to weathering that can
reduce signal quality. Inspect the antenna and lead-in
wiring before connecting the antenna. Any service cen-
ter can explain the various outdoor antennas available.
300 Ohm Flat Wire
1.
Refer to the drawing above. Connect the 300 ohm
flat wire to the 300 ohm to 75 ohm adapter.
2.
Push the end of the 300 ohm to 75 ohm adapter
into the 75 ohm antenna terminal on the treadmill.
(See assembly drawing 5 on page 8 to find the lo-
cation of the terminal.)
75 Ohm Coaxial Cable
Refer to the drawing above. Connect the 75 ohm coax-
ial cable directly to the 75 ohm antenna terminal. (See
assembly drawing 5 on page 8 to find the location of
the terminal.)
1. Remove the VHF 300 to 75 ohm adapter or the VHF
cable from the antenna terminal. (See assembly draw-
ing 5 on page 8 to find the location of the terminal.)
2. Connect the CATV
cable (75 ohm coaxial
cable) to the 75 ohm
antenna terminal on
the treadmill.
Read the important
precautions on pages
3 to 5 of this manual.
Before operating the TV,
make sure that the
on/off switch located
near the power cord is
in the ÒonÓ position. In
addition, make sure that the power cord is properly
plugged in (see page 9).
Turning on the Power
To turn on the TV, press the POWER button on the TV.
Volume Control
To adjust the volume to the desired level, press the
VOLUME + or Ð button.
The sound level will be
shown by a bar on the TV
screen. As the sound level is
increased, the bar will move
to the right. As the sound
level is decreased, the bar
will move to the left. Note: If
no broadcasting signal is re-
ceived, the sound will be muted and the volume control
will be disabled.
Skip Mode
Press the CHANNEL
▲
▲
or
▼
▼
button to select memo-
rized channels, skipping over empty channels. Hold
down the CHANNEL
▲
▲
or
▼
▼
button to change channels
continuously. Note: If no channels are memorized, the
TV will switch to the SEARCH mode.
Search Mode
Press the CHANNEL
▲
▲
or
▼
▼
button to search for the
next available channel. Hold down the CHANNEL
▲
▲
or
▼
▼
button to search through all available channels.
Note: Before selecting channels with the CHANNEL
▲
▲
or
▼
▼
button, the channels must be set into the TVÕs
memory. See MEMORIZING CHANNELS on page 14.
Combination
VHF/UHF Antennas
300 Ohm
Flat Wire
75 Ohm
Terminal
on Treadmill
300 to 75
Ohm Adapter
75 Ohm
Coaxial Cable
75 Ohm CATV Cable
VHF 75 Ohm Jack
75 Ohm CATV Cable
CATV CABLE CONNECTION
BASIC TV OPERATION
VOLUME
