T/SG 98165 7/1/97 8

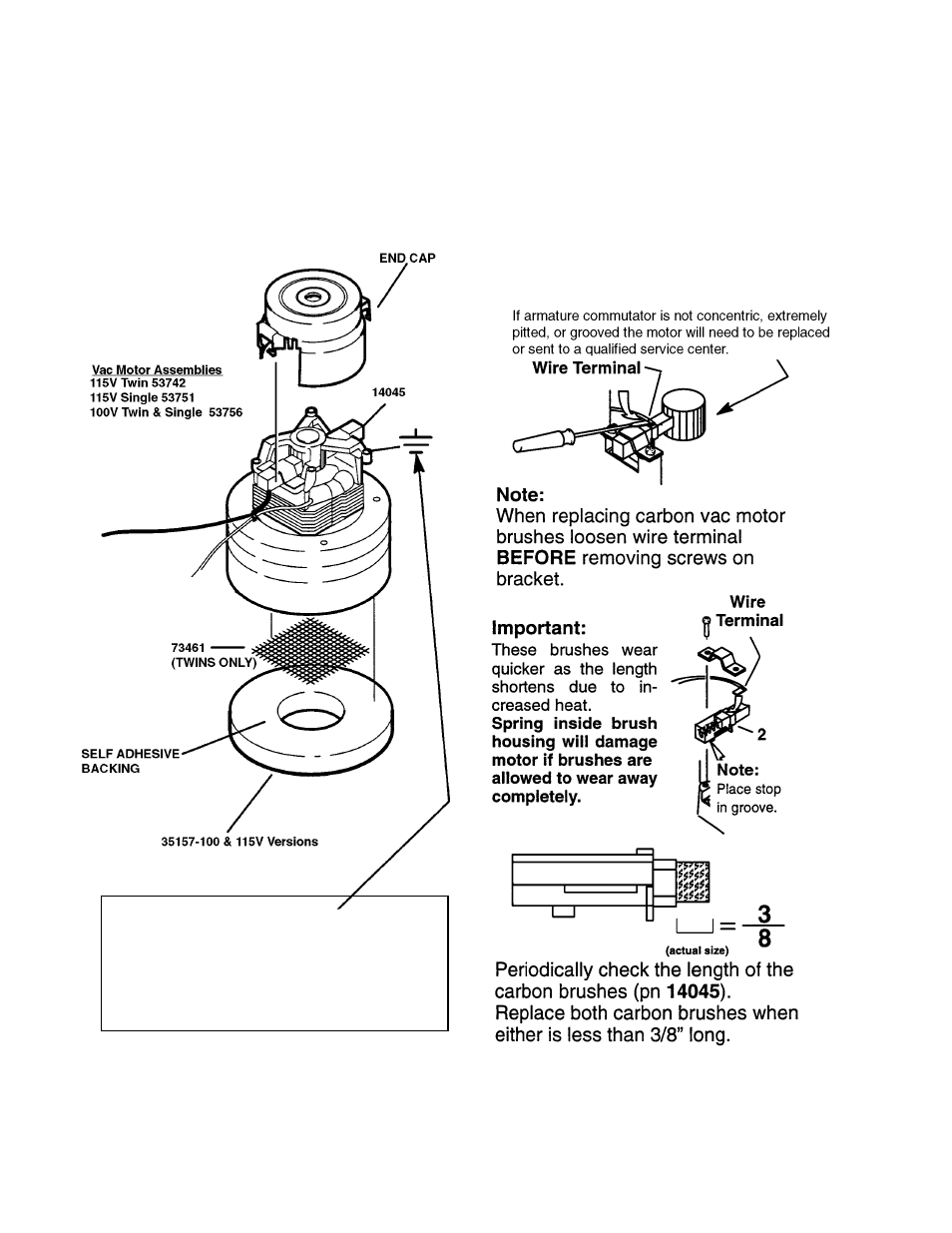

Servicing the Vac Motor
To access the vac motor (s) remove the (6) screws which attach the main cover to the head
assembly and set the cover to one side. The carbon motor brushes can now be serviced, to replace
the motor assembly or service the vac motor gasket it will be necessary to open the vac exhaust
chamber, remove the (9) screws around the edge of the exhaust chamber plate and remove the two
screws from each vac motor connecting it to the vac chamber plate. When re-installing the vac
motor(s) be sure the vac shut-off disc(s), pn 62798, are in place. See page 9.
Attach Ground Wire to the post nearest the
terminal block.
WARNING
Ground wire, pn 88623, must attach the motor to
the terminal block, and the terminal block must
be attached to the ground wire from the power
cord for safe operation.
