EXTERNAL DEVICE CONNECTIONS
19
English
• A position on the RF switch (not supplied) – You can view all unscrambled
channels by using the TV's channel keys.
• B position on the RF switch (not supplied) – You can view the scrambled
channels via the converter/descrambler by using the converter's channel
keys.
EXTERNAL DEVICE CONNECTIONS
You can enjoy picture and sound by connecting various audio-video devices to the
terminals located on the rear and side I/O panels of the LCD TV.
• TV cable input – You can use a commercially available audio/video cable.
• Component (YPbPr) input – Picture can be displayed only when a 480i,
480P, 720P or 1080i signal is received.
• HDMI input – Picture can be displayed only when a 640 x 480, 480P, 720P
or 1080i signal is received. When you connect to the HDMI terminal with a
DVI-HDMI conversion cable, there is a possibility that the picture may not
display correctly.
• Audio output – You can output audio signals from the LCD TV set through
the analog audio out and SPDIF terminals.
IMPORTANT
:
• Turn off the LCD TV first before connecting an external device to prevent
any possible damage or physical injury.
• For more information about external device connections, see the operation
manual of the external device you wish to connect to the LCD TV.
• Make sure that the correct cables are connected to each terminal.
Improper cable connections may cause damage to the LCD TV.

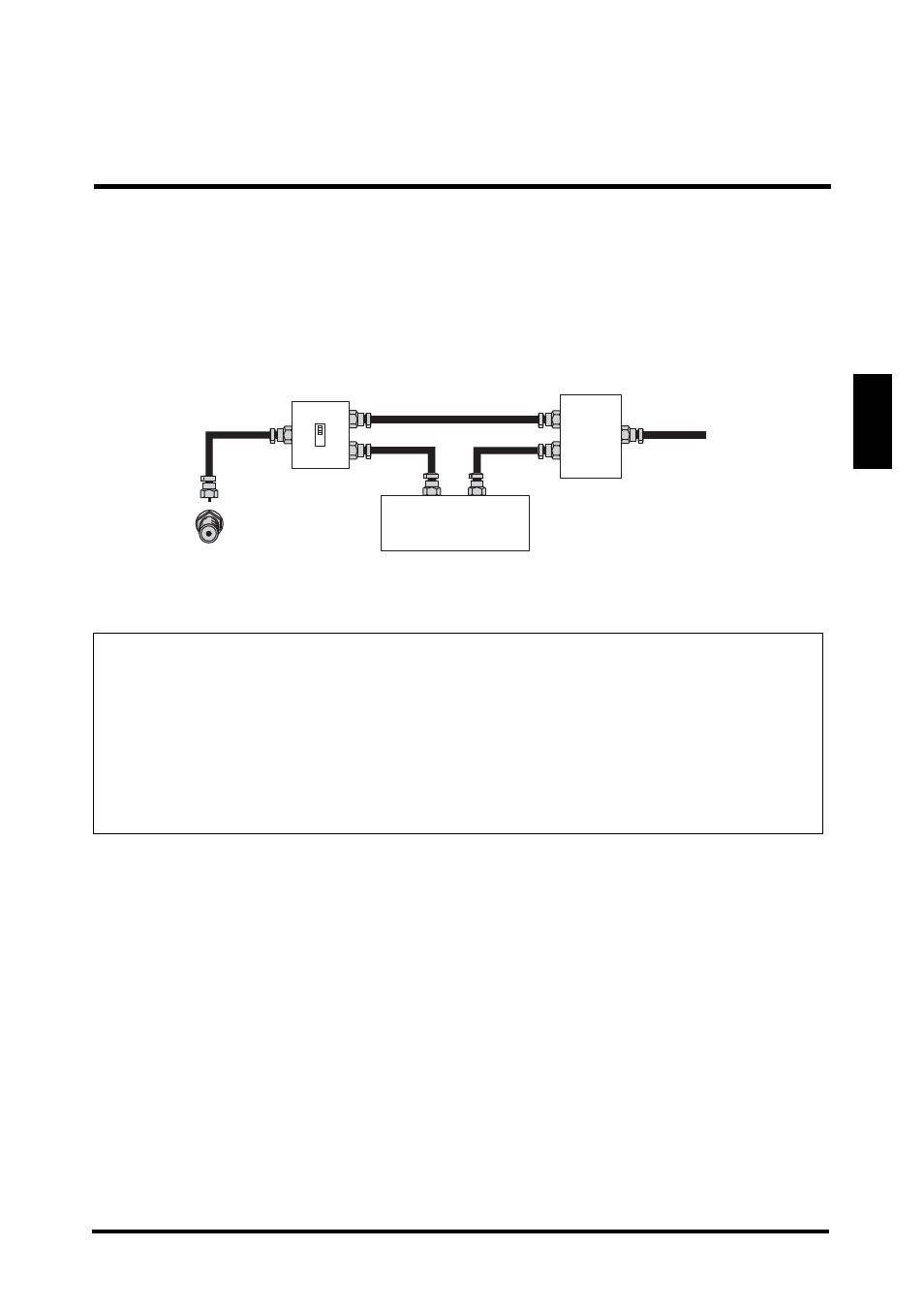

RF switch (not supplied)
Cable TV line
A
B
IN OUT
Two-set
signal
splitter
(Not
supplied)
Cable TV
converter/descrambler
(Not supplied)
