W O L F E L E C T R I C C O O K TO P S
F R A M E D M O D E L C T 3 6 E

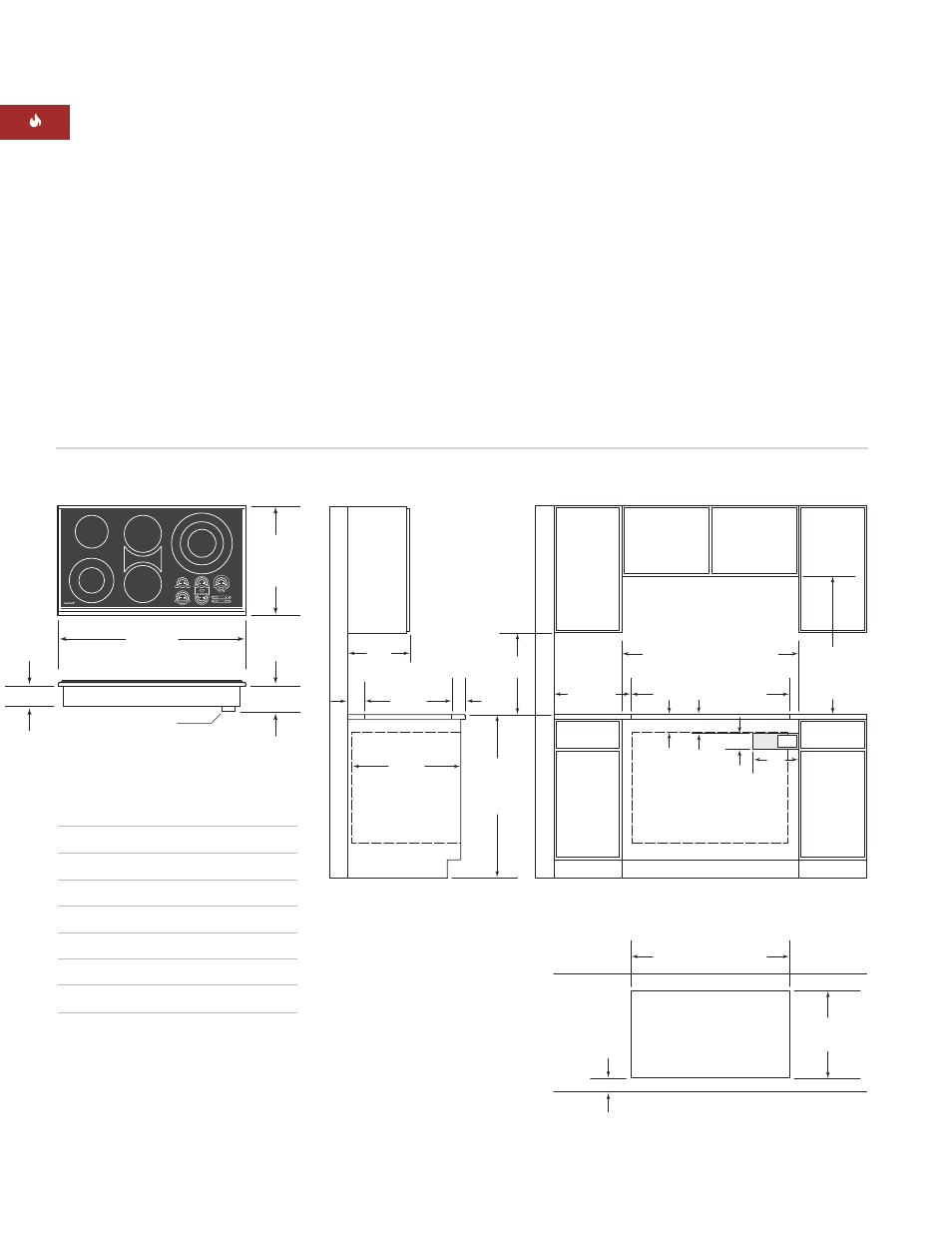

The illustrations below provide installation
specifications for Model CT36E.
For ease of installation, 39" (991) cabinets are
recommended for installation of Model CT36E.
A Wolf 30" (762) or 36" (914) built-in single
oven may be installed below Model CT36E. For
this installation, unless you are using cabinets
deeper than 24" (610), it is recommended that
the electrical supply be placed in the base
cabinet to the right of the oven.
Refer to installation instructions provided with
the built-in oven for additional specifications.
If Model CT36E is installed above cabinets, the
electrical placement is not critical. A grounded
electrical box should be located within 4'
(1.2 m) of the right rear of the cooktop.
IMPORTANT NOTE: Do not block the cooling
fan located at the bottom of the cooktop.
2"* min (51)
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
18"
(457)
19 1 / 4 " (489)
COOKTOP CUT-OUT
DEPTH
2 1 / 2 " min
(64)
36" (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
13" max
(330) 30" (762)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
24" min
(610)
*Minimum clearance from both side edges of cooktop cut-out to combustible materials up to 18" (457) above countertop. **Minimum clearance from
rear edge of cooktop cut-out to combustible materials up to 18" (457) above countertop.
34 3 / 8 " (873)
COOKTOP CUT-OUT WIDTH
34 3 / 8 " (873)
COOKTOP CUT-OUT WIDTH
39" (991)
RECOMMENDED CABINET WIDTH
36" min (914)
4" (102)
10"
(254)
3 1 / 2 " (89)
36-INCH OVEN OPENING
3 3 / 4 " min (95)
E
2 1 / 2 " min
(64)
FRONT OF COUNTERTOP
19 1 / 4 " (489)
COOKTOP
CUT-OUT DEPTH
2"**
(51)
Overall Dimensions
Countertop Cut-Out
21"
(533)
OVERALL
DEPTH
36" (914)
OVERALL WIDTH
5" (127) 3 3 / 4 " (96)
CONDUIT
M O D E L C T 3 6 E
Overall Width 36" (914)
Overall Height 3 3 / 4 " (96)
Overall Depth 21" (533)
Minimum Cabinet Depth 22 3 / 4 " (578)
Minimum Height Clearance* 4" (102)
Cut-Out Width 34 3 / 8 " (873)
Cut-Out Depth 19 1 / 4 " (489)
I N S T A L L A T I O N S P E C I F I C A T I O N S – M O D E L C T 3 6 E
*Minimum 5 3 / 4 " (146) clearance is required
between countertop and any combustible
surface directly below the cooktop.
For detailed conduit dimensions, refer to
the illustration on page 5.
Dimensions may vary to ± 1 / 8 " (3).
