EQ Section

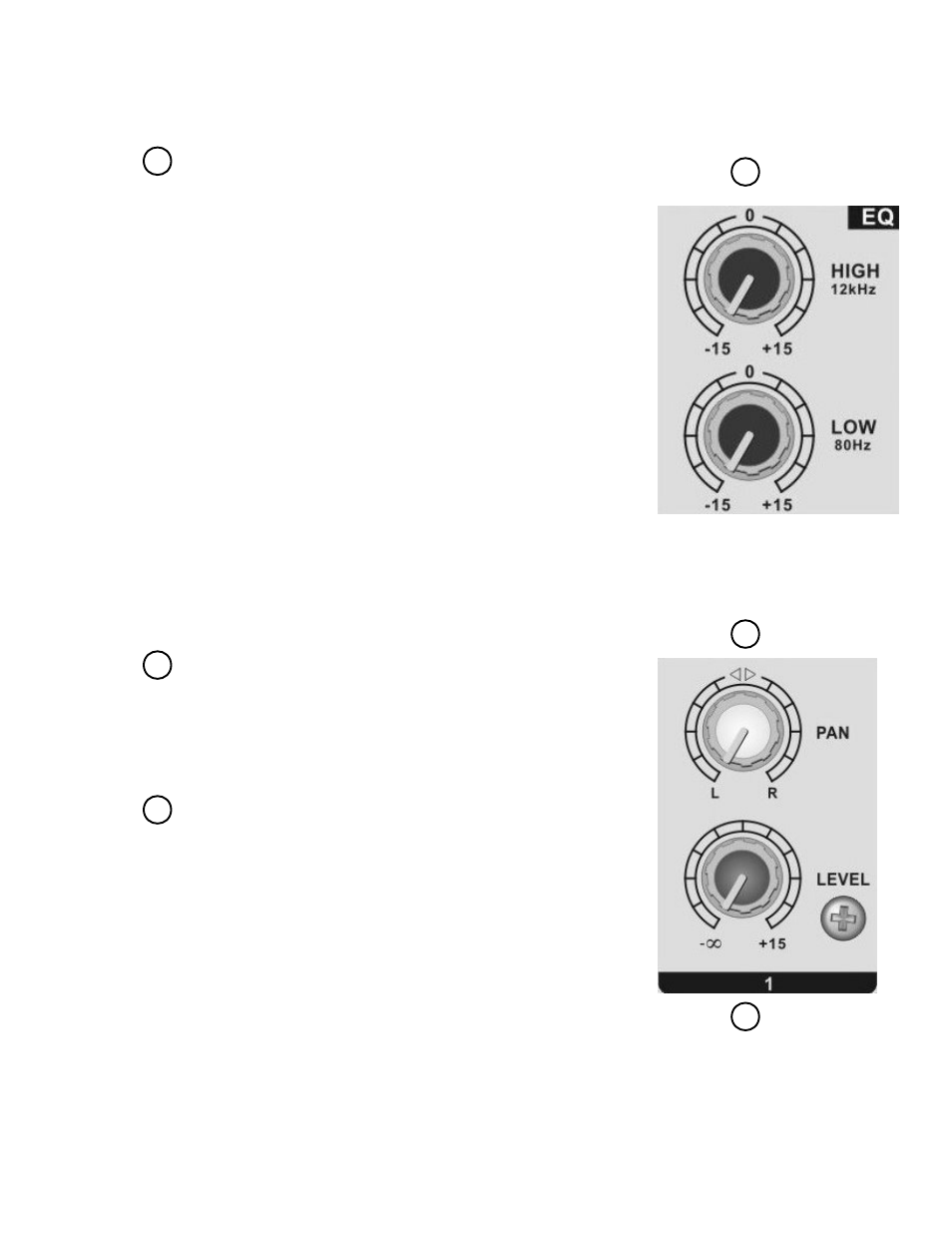

Channel 1 on the EZ-m 10x2 mixer
features a two band Equalization (”EQ”) section.
Each band is chosen from the prime frequencies
for most musical applications, and allows up to
15 decibels of boost (increase) or cut (decrease)
of the signal in the tone range for which it
controls. The HIGH EQ control is centered at
12kHz and the LOW EQ control is centered at
80Hz. In the center-detent position (0), the
equalizer is bypassed (flat) and the control has
no effect on the tonal characteristics of the
signal.
Pan and Level
Pan Control:
On Channel 1, the PAN control adjusts
the left/right balance of the mono signal being
sent to the left and right MAIN MIX outputs.
The Channel 1 LEVEL Control
The Channel 1 LEVEL knob allows for
control of the level of the signal that is being
sent to the MAIN MIX master volume control.
Adjust each channel level control to acquire the
best “mix”, or balance of signals, from each
input.
