6

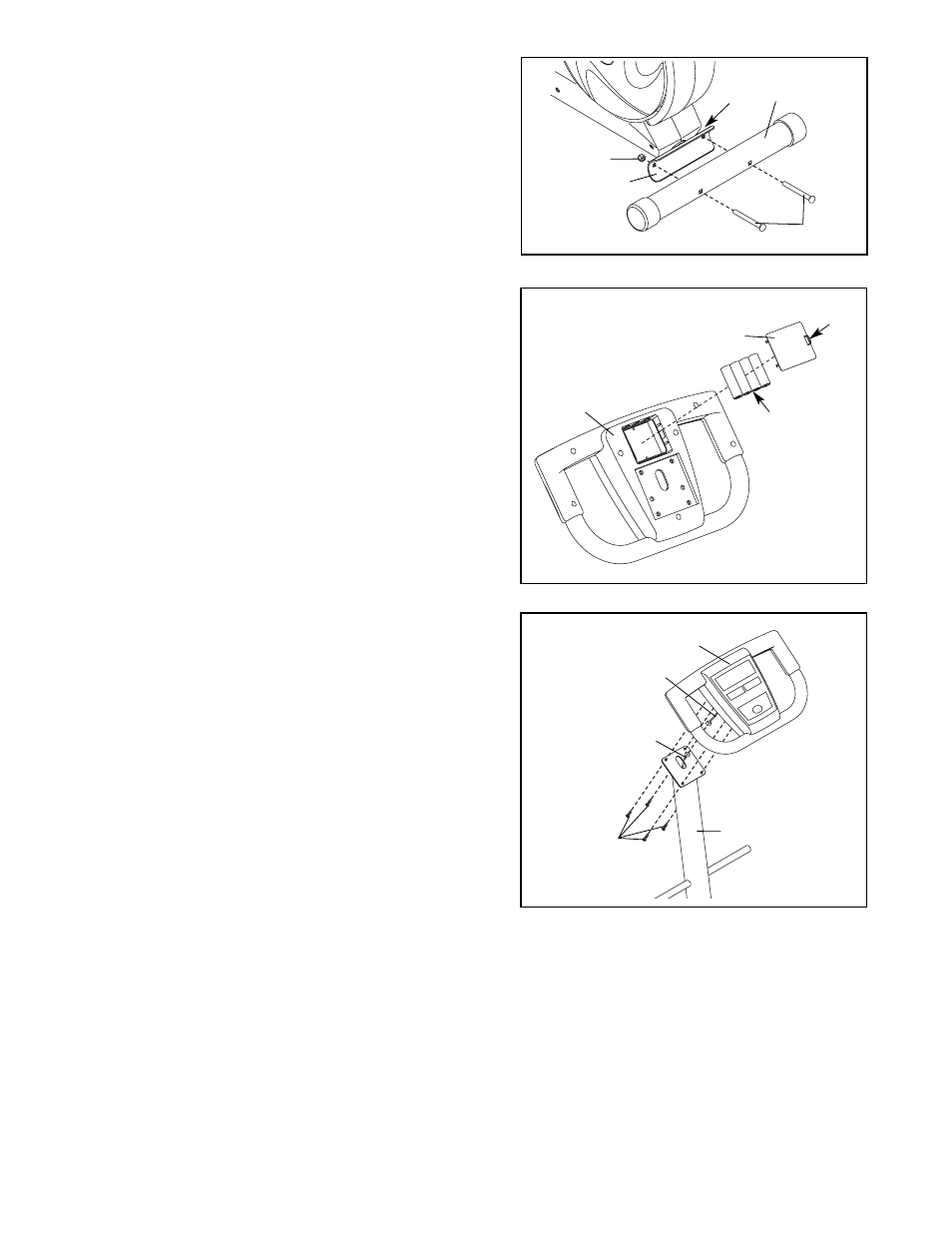

2. While another person lifts the back of the Frame (1),
attach the Rear Stabilizer (28) to the Frame with two
M10 x 75mm Carriage Bolts (34) and two M10 Nylon
Locknuts (33).
34
28
1
2
33
33
3. The Console (23) requires four “AA” batteries (not
included); alkaline batteries are recommended. Press
the tab on the battery door and remove it. Insert four
batteries into the Console as shown. Make sure that
the batteries are oriented as shown by the mark-
ings on the battery door. Then, reattach the battery
door.
23
Batteries
Battery
Door
Tab
3
4. Tip: Be careful to avoid pinching the console wire
or the Upper Wire (44) during this step.
While another person holds the Console (23) near the
Upright (2), connect the console wire to the Upper
Wire (44). Insert the console wire and the Upper Wire
into the Upright.
Next, attach the Console (23) to the Upright (2) with
four M6 x 18mm Screws (43).
4
23
2
44
Console Wire
43
