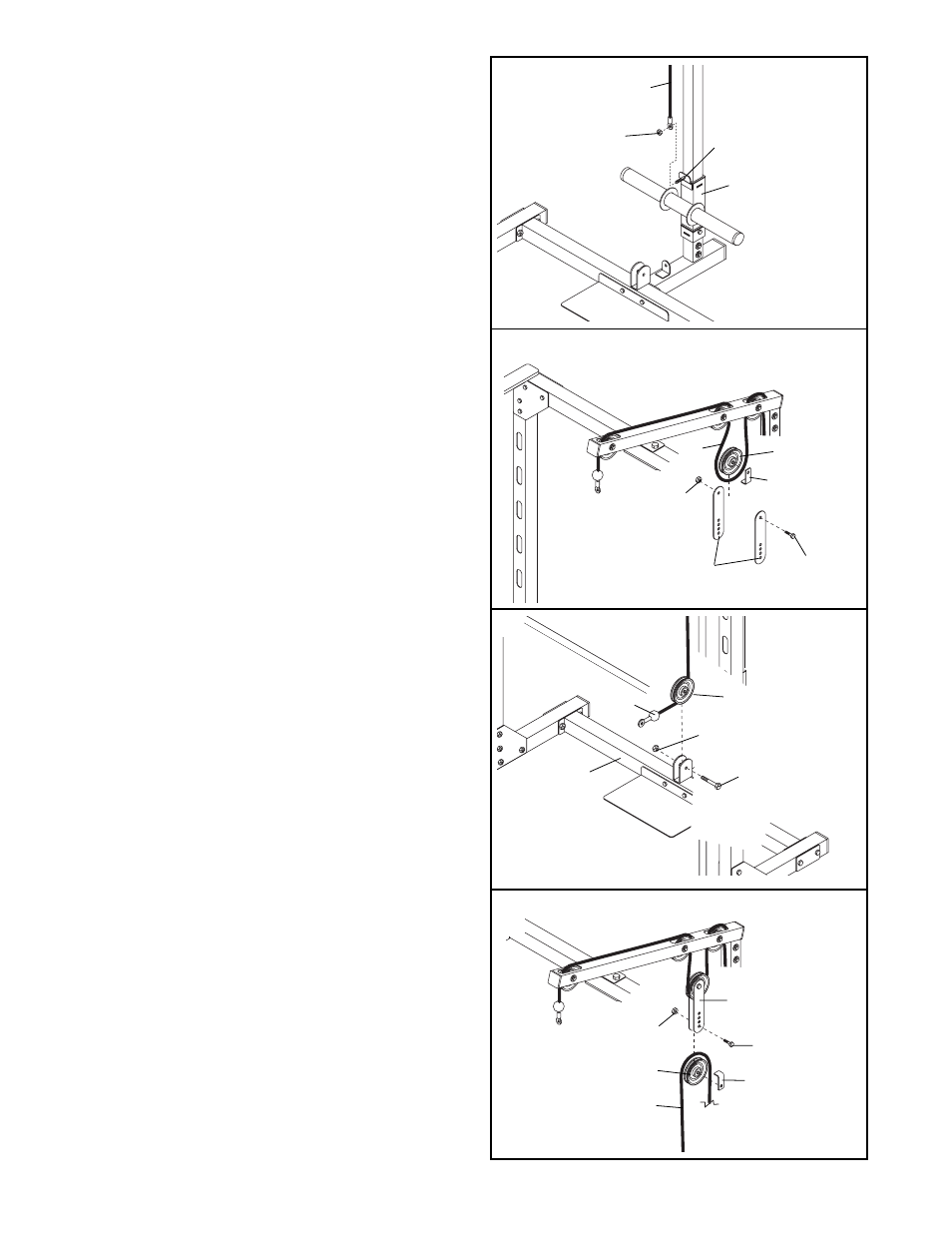

17. Slide the indicated end of the High Cable (13)
onto the M10 x 20mm Bolt (26) in the Weight
Carriage (22). Tighten an M10 Nylon Locknut (11)
onto the Bolt.
18. Route the High Cable (13) around a Pulley (5) as
shown. Hold a Cable Trap (21) against the Pulley
and attach a Pulley Plate (19) to each side of the
Pulley using an M10 x 45mm Bolt (40) and an
M10 Nylon Locknut (11). Make sure the Cable
Trap holds the High Cable in the groove of the
Pulley. Do not overtighten the Nylon Locknut;
the Pulley must be able to turn freely.
19. Wrap the indicated end of the Low Cable (8)
around a Pulley (5). Attach the Pulley to the
bracket on the Base Crossbar (20) using an M10
x 45mm Bolt (40) and an M10 Nylon Locknut (11).
Do not overtighten the Nylon Locknut; the
Pulley must be able to turn freely.
20. Route the Low Cable (8) around a Pulley (5) as
shown. Hold a Cable Trap (21) against the Pulley
and attach the Pulley and Cable Trap to the low-
est holes in the two Pulley Plates (19) using an
M10 x 45mm Bolt (40) and an M10 Nylon Locknut
(11). Make sure the Cable Trap holds the Low
Cable in the groove of the Pulley. Do not over-
tighten the Nylon Locknut; the Pulley must be
able to turn freely.
