Weider WEBE63990 - Manual (Page 8)

8

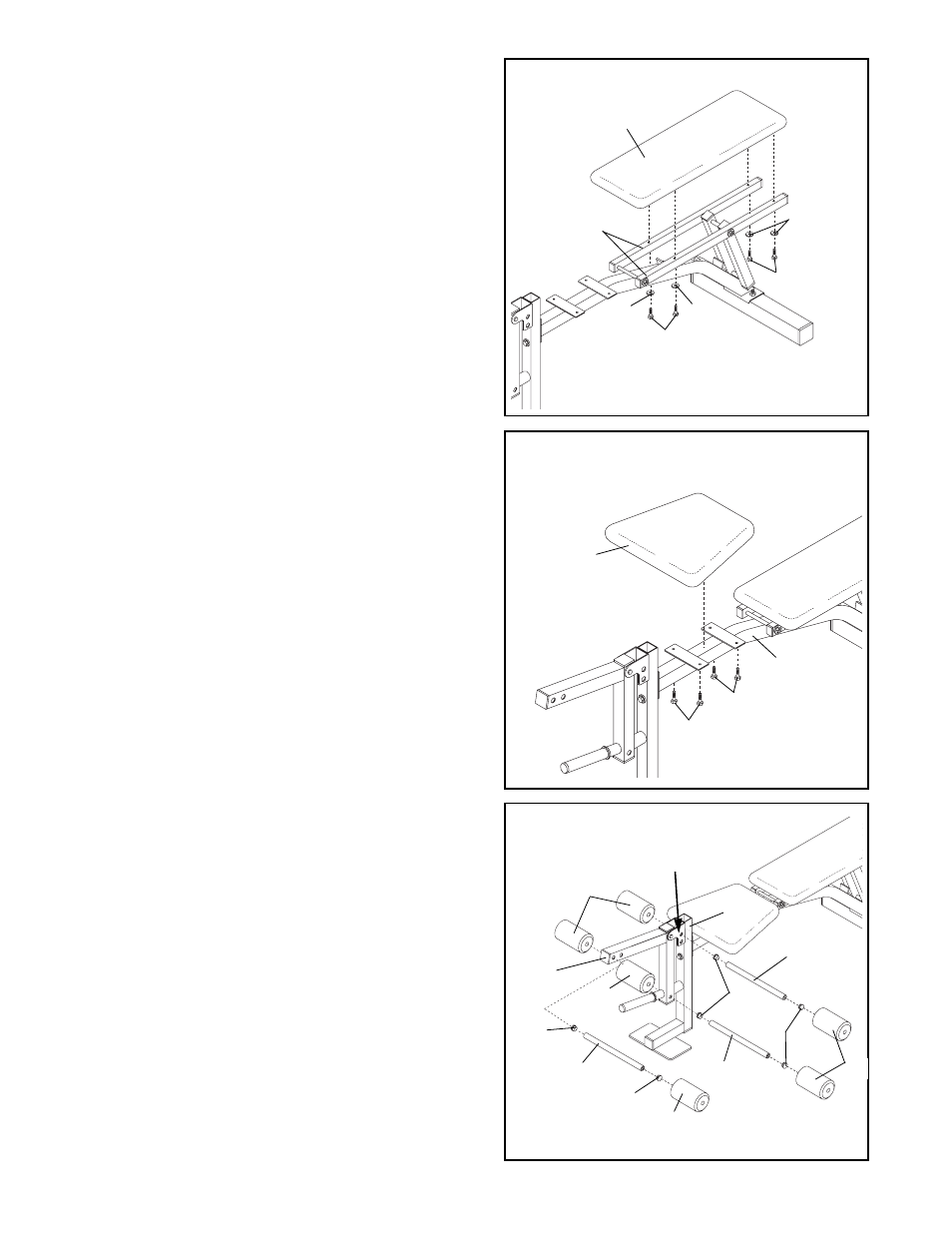

7. Attach the Backrest (15) to the Backrest Tubes (27)
with four M6 x 52mm Screws (4) and four M6
Washers (30).
7
15
27
30 30
30
4
4
9. Press a 3/4Ó Round Inner Cap (12) into each end of
the three Pad Tubes (38).
Slide a Foam Pad (10) onto one end of each Pad
Tube (38).
Slide the Pad Tubes (38) into the indicated holes in
the Leg Lever (18) and the bracket on the Front Leg
(19). Slide another Foam Pad (10) onto the other end
of each Pad Tube.
9
38
19
10
12
12
38
Bracket
10
18
38
12
10
12
10
8. Attach the Seat (14) to the indicated brackets on the
Bench Frame (5) with four M6 x 16mm Screws (3).
8
3
3
14
5
