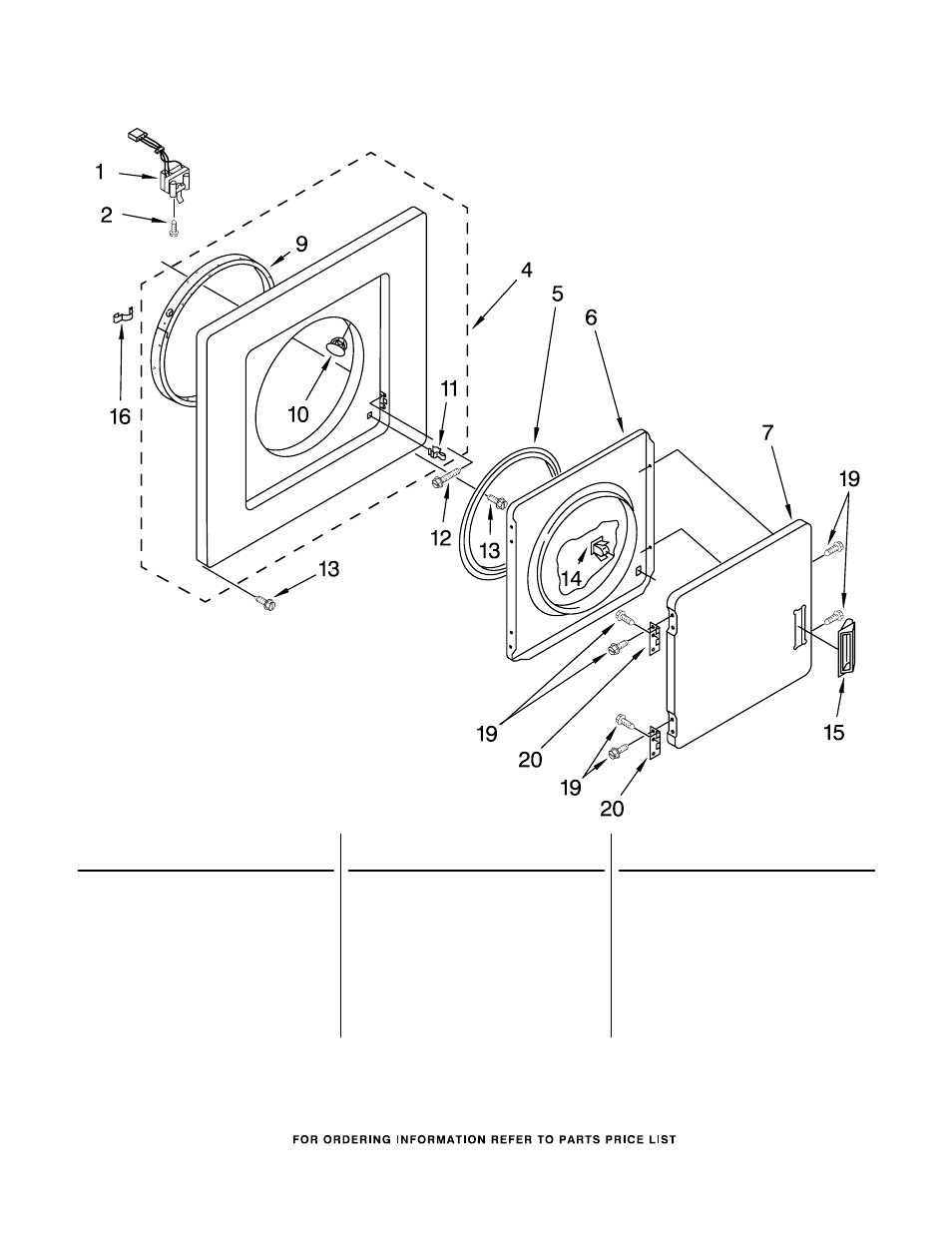

DRYER FRONT PANEL AND DOOR PARTS
2 4320101
For Models: LTG5243DQ2, LTG5243DZ2, LTG5243DT2
(Designer White) (Designer Almond) (Biscuit)
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 3406108 Door Switch
2 697773 Screw, 6−20 x 7/8
4 Panel, Front
692619 White
692620 Almond
3978587 Biscuit
5 3390734 Seal, Door
6 695656 Door, Rear
7 Door, Front
348205 White
689314 Almond
3978598 Biscuit
9 349462 Bearing & Seal
10 685203 Clip, Felt
Pad (2)
11 696144 Strike, Panel
12 3390663 Screw, 10−16 x 1/2
13 343641 Screw, 10−16 x 1/2
14 3389441 Catch, Door
15 Handle, Door
686711 White
689308 Almond
3978592 Biscuit
16 692846 Support Protector
19 694091 Screw, 8−18 x 3/8
20 348023 Hinge & Pin,
Door (2)
