5
OPERATION

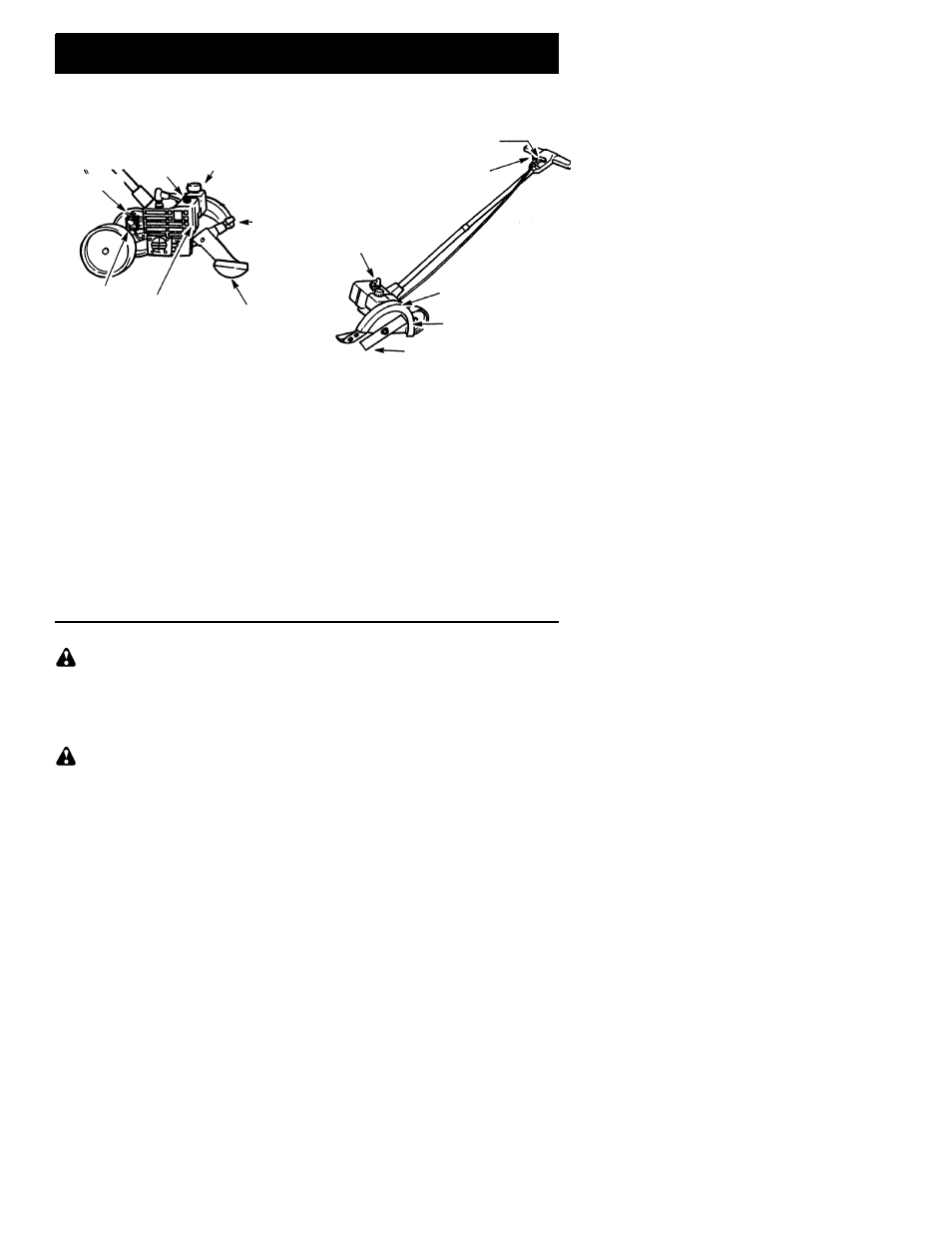

KNOW YOUR EDGER
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
UNIT. Compare the illustrations with your unit to familiarize yourself with the location of the vari-
ous controls and adjustments. Save this manual for future reference.
Choke
Fuel/Oil Mix Cap
Spark Plug
Air Filter
Blade Guard
Blade
Throttle Trigger
Starter Rope Handle
Depth
Control
Lever
ON/OFF
Switch
Depth
Adjusting
Skid
Muffler and
Guard
Primer Bulb
ON/OFF SWITCH
The ON/OFF switch is used to select the ON
or OFF position.
STARTER ROPE HANDLE
The STARTER ROPE HANDLE is used for
starting the engine.CHOKEThe CHOKE pro-
vides additional fuel to the engine when start-
ing a cold or refueled engine.
PRIMER BULB
The PRIMER BULB removes air from the car-
buretor and fuel lines and fills them with fuel.
This allows you to start the engine with fewer
pulls on the starter rope. Activate the primer bulb
by pressing it and allowing it to return to its origi-
nal form.
CHOKE
The CHOKE helps to supply fuel to the engine
to aid in cold starting. Activate the choke by
moving the choke lever to the FULL CHOKE
position. After the engine attempts to start, move
the choke lever to the HALF CHOKE position.
Once engine has started, move the choke lever
to the OFF CHOKE position.
THROTTLE TRIGGER
The THROTTLE TRIGGER controls engine
speed. It is designed to be activated by the
right hand.
BLADE
The BLADE is designed to cut sod.
DEPTH ADJUSTING SKID
The DEPTH ADJUSTING SKID sets the
depth of the cut.
DEPTH CONTROL LEVER
The DEPTH CONTROL LEVER regulates
the cutting depth. Move the lever backward
for full depth edging, forward for half depth
edging.
BEFORE STARTING ENGINE
WARNING: Be sure to read the fuel
information in the safety rules before you be-
gin. If you do not understand the safety rules,
do not attempt to fuel your unit. Call
1-800-554-6723.
FUELING ENGINE
WARNING: Remove fuel cap slowly
when refueling.
This engine is certified to operate on un-
leaded gasoline. Before operation, gasoline
must be mixed with a good quality synthetic
2-cycle air-cooled engine oil designed to be
mixed at a ratio of 40:1. Poulan/Weed Eater
brand synthetic oil is recommended. Mix gaso-
line and oil at a ratio of 40:1. A 40:1 ratio is ob-
tained by mixing 3.2 ounces (95 ml) of oil with
1 gallon (4 liters) of unleaded gasoline. DO
NOT USE automotive oil or boat oil. These
oils will cause engine damage. When mixing
fuel, follow instructions printed on container.
Once oil is added to gasoline, shake contain-
er momentarily to assure that the fuel is thor-
oughly mixed. Always read and follow the
safety rules relating to fuel before fueling your
unit.
IMPORTANT
Experience indicates that alcohol blended
fuels (called gasohol or using ethanol or
methanol) can attract moisture which leads to
separation and formation of acids during stor-
age. Acidic gas can damage the fuel system
of an engine while in storage. To avoid engine
problems, empty the fuel system before stor-
age for 30 days or longer. Drain the gas tank,
start the engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel next
season.Never use engine or carburetor
cleaner products in the fuel tank or permanent
damage may occur.See the STORAGE sec-
tion for additional information.
