discontinue the use of this tool and seek med-
ical attention. An anti-vibration system does
not guarantee the avoidance of these prob-
lems. Users who operate power tools on a
continual and regular basis must monitor closely their physical condition and the condi-
tion of this tool.
SAVE THESE INSTRUCTIONS
ASSEMBLY
WARNING: If received assembled,
repeat all steps to ensure your unit is properly
assembled and all fasteners are secure.
Examine parts for damage. Do not use dam-
aged parts.
NOTE: If you need assistance or find parts
missing or damaged, call 1-800-554--6723.
This instruction manual has been developed
to help you assemble the unit and to provide
its safe operation. It is important that you read
the entire manual to become familiar with the
unit before you begin assembly.
Read your instruction manual.
Tools you will need:
S Adjustable wrench
S Hex wrench (provided)
TUBE ASSEMBLY
NOTE:
When performing the following step,
be sure the handle is aligned as follows: label
on top, throttle trigger to the operator ’s right
hand side. The starter rope and the throttle
cable must not wrap around the tube.
Throttle trigger
Label

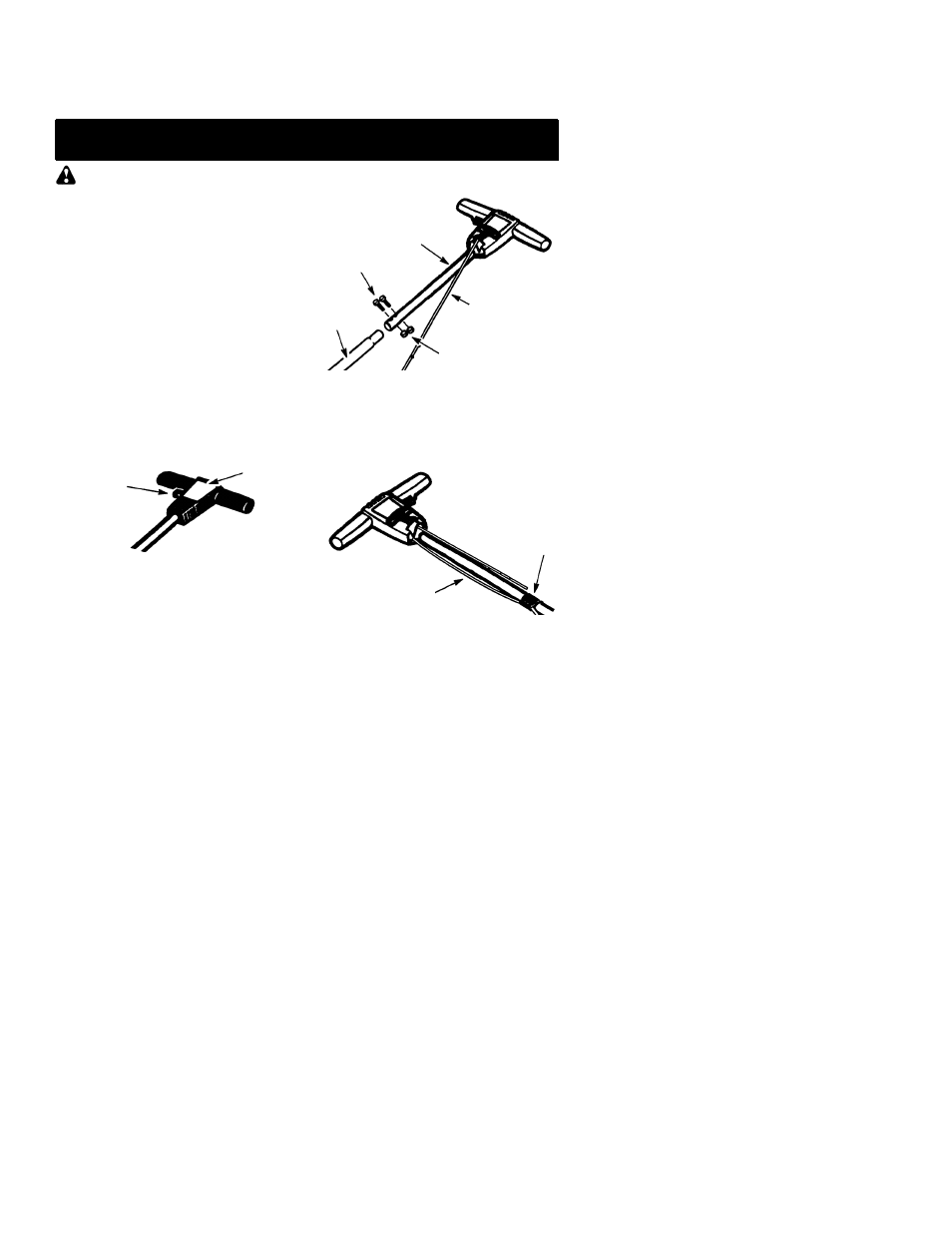

1. Assemble handle tube to the lower tube (it
will be necessary to pull some of the start-
er rope out of the housing).
2. Align the screw holes; insert the screws
through the aligned holes.
3. Thread one locknut onto each screw and
tighten securely.
Handle tube
Screws
Starter Rope
Locknuts
Lower
Tube
NOTE: When performing the following step,
be sure the starter rope is not caught under
the cable clamp. The starter rope must hang
freely to operate properly.
4. Align the cable clamp between the tube
screws. Install the cable clamp around the
tube and throttle cable.
Throttle cable
Cable Clamp
