8

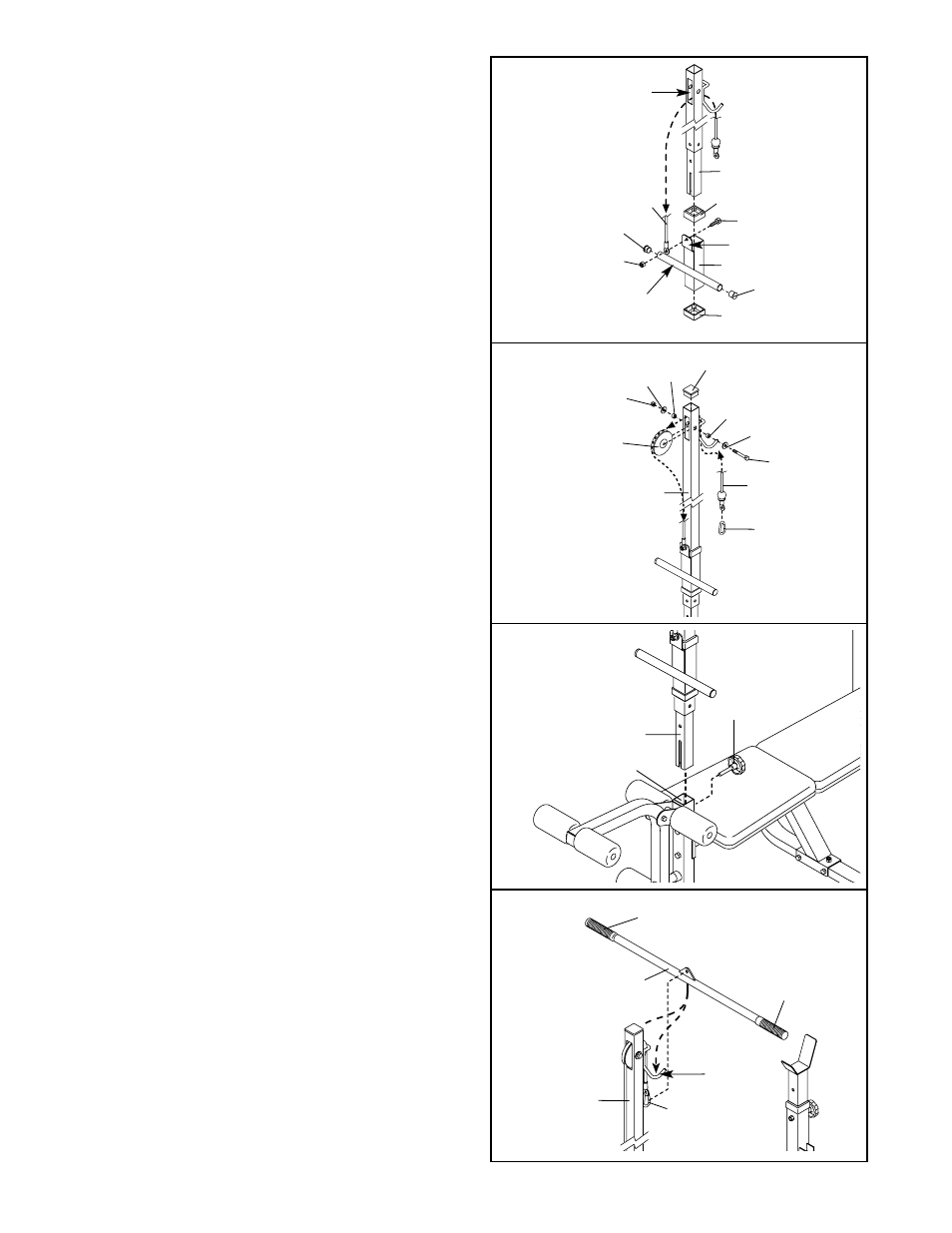

10. Press a 38mm Square Inner Cap (32) into the top
of the Lat Tower (11).
Route the Cable (25) around the Pulley (26) as
indicated. Attach the Pulley inside the slot in the
Lat Tower (11) with an M10 x 55mm Bolt (49), two
M10 Washers (29), two M10 Spacers (42), and
an M10 Nylon Locknut (45). Do not overtighten
the Nylon Locknut; the Pulley must be able to
turn freely.
Attach the Cable Clip (35) to the end of the Cable
(25).
10
11. Slide the Lat Tower (11) into the Front Leg (2).
Tighten it in place with the 44mm Adjustment
Knob (34).
11
32
11
42
29
49
26
42
29
45
25
35
34
2
11
9. Press two 25mm Round Inner Caps (21) into the
weight tube of the Weight Carriage (12). Press
two 45mm x 38mm Outer Bushings (23) onto the
top and bottom of the Weight Carriage.
Insert an M8 x 16mm Bolt (44) into the bracket on
the Weight Carriage (12). Slide the Weight
Carriage onto the Lat Tower (11) as shown.
Route the Cable (25) through the slot of the Lat
Tower (11) in the indicated direction. Connect the
eyelet on the Cable to the Weight Carriage (12)
using the M8 x 16mm Bolt (44) and an M8 Nylon
Locknut (43).
9
Weight
Tube
Slot
Bracket
25
43
44
21
21
12
23
23
11
12. Wet the ends of the Lat Bar (18) with soapy
water. Slide a Handgrip (19) onto each end of the
Lat Bar. Attach the Lat Bar to the Cable Clip (35)
and place it in the lat bar rest on the Lat Tower
(11).
12
19
19
35
18
11
Lat Bar
Rest
