Panel G

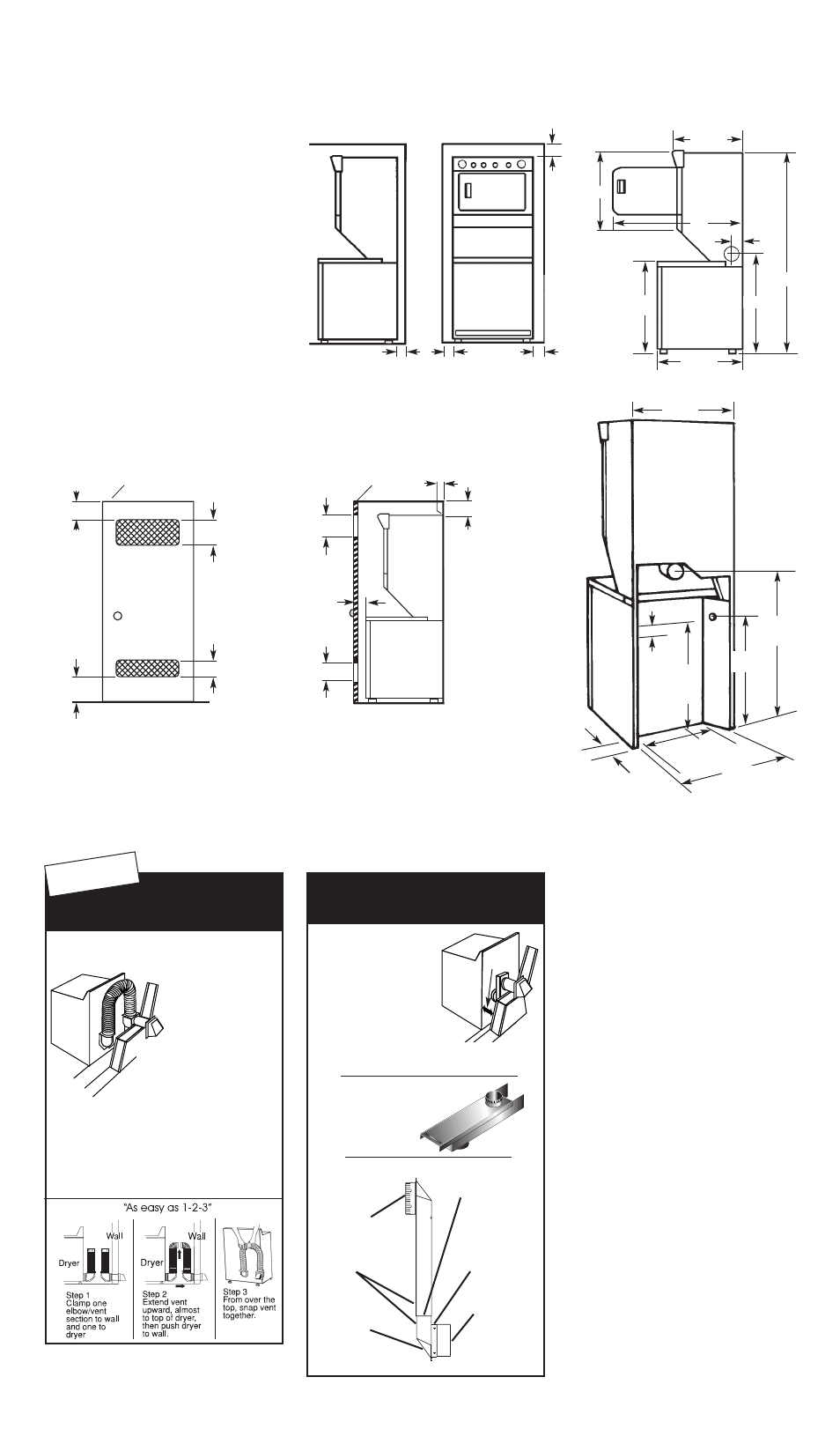

Recessed and closet
installation instructions
This washer/dryer may be installed in a
recessed area or closet.
The installation spacing is in inches and
is minimum allowable. Additional
spacing should be considered for ease
of installation, servicing and compliance
with local codes and ordinances.
If closet door is installed, the minimum
unobstructed air openings in top and
bottom are required. Louvered doors
with equivalent air openings are
acceptable.
Note: No other fuel-burning appliance
may be installed in the same closet.
Other installations must use the minimum
dimensions indicated.
Product dimensions
Dryer
Washer
0" * 0" *
Front View
6"
Recessed area minimum installation spacing
28"
48"
72-3/4"
5"
33-
1/4"
26-1/4"
32-1/4" 0" ***
Side View
27-3/8"
1-1/2"
hot
water
inlet
13-1/2"
recess
width
5"
recess
depth
28-1/2"
Drain
Exhaust
outlet
36-3/4"
27"
cold
water
inlet
34-3/4"
22-3/4"
Most installations will require at least 5 inch
clearance behind the dryer for the dryer
vent. Location must be large enough to fully
open dryer door.
* Additional clearances for wall, door and floor moldings may be required or if external exhaust
elbow is used.
** Opening is minimum for closet door. Louvered door with equivalent air openings is acceptable.
*** Additional space may be needed for exhaust elbow.
6"
0" ***
Closet installation must be exhausted outdoors.
closet door
48 sq. in. **
24 sq. in. **
1" min.
3"
3"
48 sq. in. **
front view side view
closet door
24 sq. in. **
WARNING - To reduce the risk of fire, this appliance MUST BE EXHAUSTED OUTDOORS.
SURE CONNECT TM Vent Kit
CRUSH
RESIST
ANT
Dura Safe TM
Kits Make Installation Easy
◆ Provides 4 1/2”
clearance between
dryer and wall
◆ Snap-Lock fittings
◆ Total kit length
8 feet
◆ Additional vent can
be snapped between
sections for
longer runs
Kit Contains:
2- 4' vent sections with attached close elbows
1- Wall plate for close clearance installations
2- 4" clamps
Part #4396028
Sections separate,
fittings can face
same or opposite
Extra long
band-clamp
for dryer
connection
Swivel collar
Beveled edges
allow corner
installations
Telescoping
sections
Swivel collar
wall connection
◆ Provides 2 1/2” clearance
between dryer and wall
◆ Great for closet
installations
◆ 0"-18", 18”-29” or
29”- 50” periscopes
include one male
snap-lock fitting,
one extra long
draw-band collar
and one clamp
2 1/2"
2 1 /
2
"
Periscopes For Offset
Outlets, Tight Installations
◆ Use when vent outlets
overlap or are offset
◆ Excess length can
be trimmed to fit
18"-29" and 29"-50" Periscope
0"-18" Periscope
0"-18" : Part #4396037
18"-29" : Part #4396011
29"-50" : Part #4396014
Part #4396037
18"-29" : Part #4396011 29"-50" : Part #4396014
