4
Programming and Confi guration Items
1 "System On" indicates when heating or cooling stage
is energized.
2 The word "Hold" is displayed when the thermostat is
in the Hold mode. "Temp" is displayed when
the thermostat is in a Temporary HOLD mode.
3 Displays "Change Filter" when the system has run for
the programmed fi lter time period as a reminder to
change or clean your fi lter.
4 Displays "Set" for setpoint when in Run Program mode.
5 Displays System Mode (Heat, Auto, Cool, Off)
or "Time" in menu mode.
6 Displays Fan mode (On, Auto) "Prog FAN On" or
"Run Sched" in Menu mode.
THERMOSTAT QUICK REFERENCE
Home Screen Description

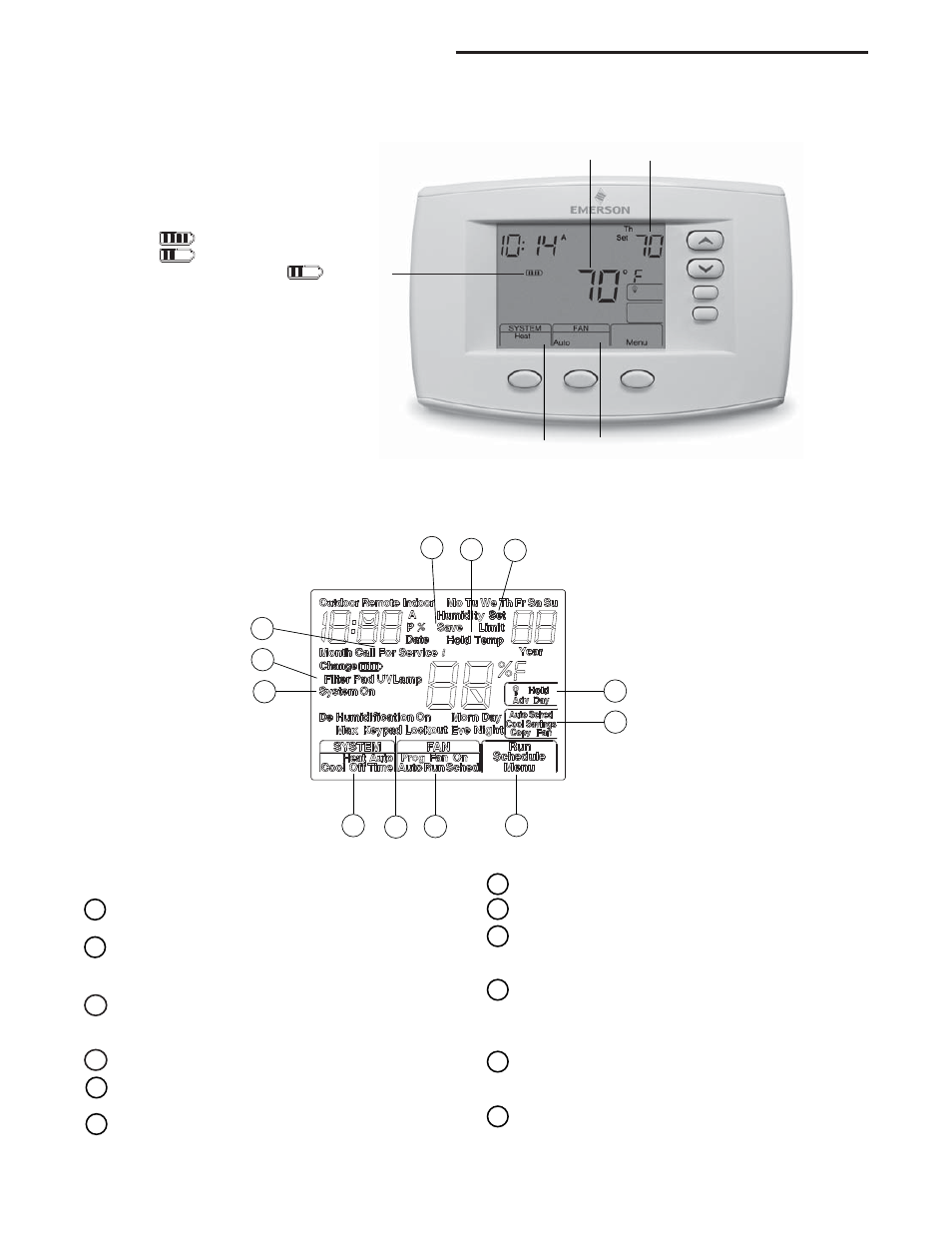

Figure 5 – Home Screen Display
Figure 6 – Programming & Confi guration Items
7
Displays "Run Schedule", "Schedule", or "Menu".
8 Displays "Save" when Cool Savings TM is working.
9
Displays "Hold" in programmable mode when not in
Hold mode. Displays Light Bulb in non-programmable
mode.
10 Initially displays "Auto Sched". If Auto Schedule had
been used or disabled, then it displays "Cool Savings"
when in the Cool Mode. Displays "Copy" in Schedule
mode and "Fan" in Fan Schedule mode.
11 "Call For Service" indicates a diagnostic fault in the
heating/cooling system, it does not indicate a fault in the
thermostat.
12 "Keypad Lockout" in Menu mode when selecting key-
pad Lockout or in RUN when a keypad Lockout is active.
Room
Temperature
Setting
Temperature
System
Indicator
Fan
Indicator
Displays the power level of
the 2 “AA” batteries:
indicates good power level
indicates batteries at about
half power. “Change ” indicates
batteries are low and should be
replaced with 2 new premium brand
“AA” Alkaline batteries.
(See page 2 for more details)
10
9
7 6 5 12
1
3
11
8 2 4
