Optional break-away blades – Walker DGHS52 User Manual
Page 54
52
Use only genuine Walker
®
replacement parts.
Effective Date 08-01-08
ITEM
PART
DESCRIPTION
NO.
NO.
NO.
REQ’D
ITEM
PART
DESCRIPTION
NO.
NO.
NO.
REQ’D

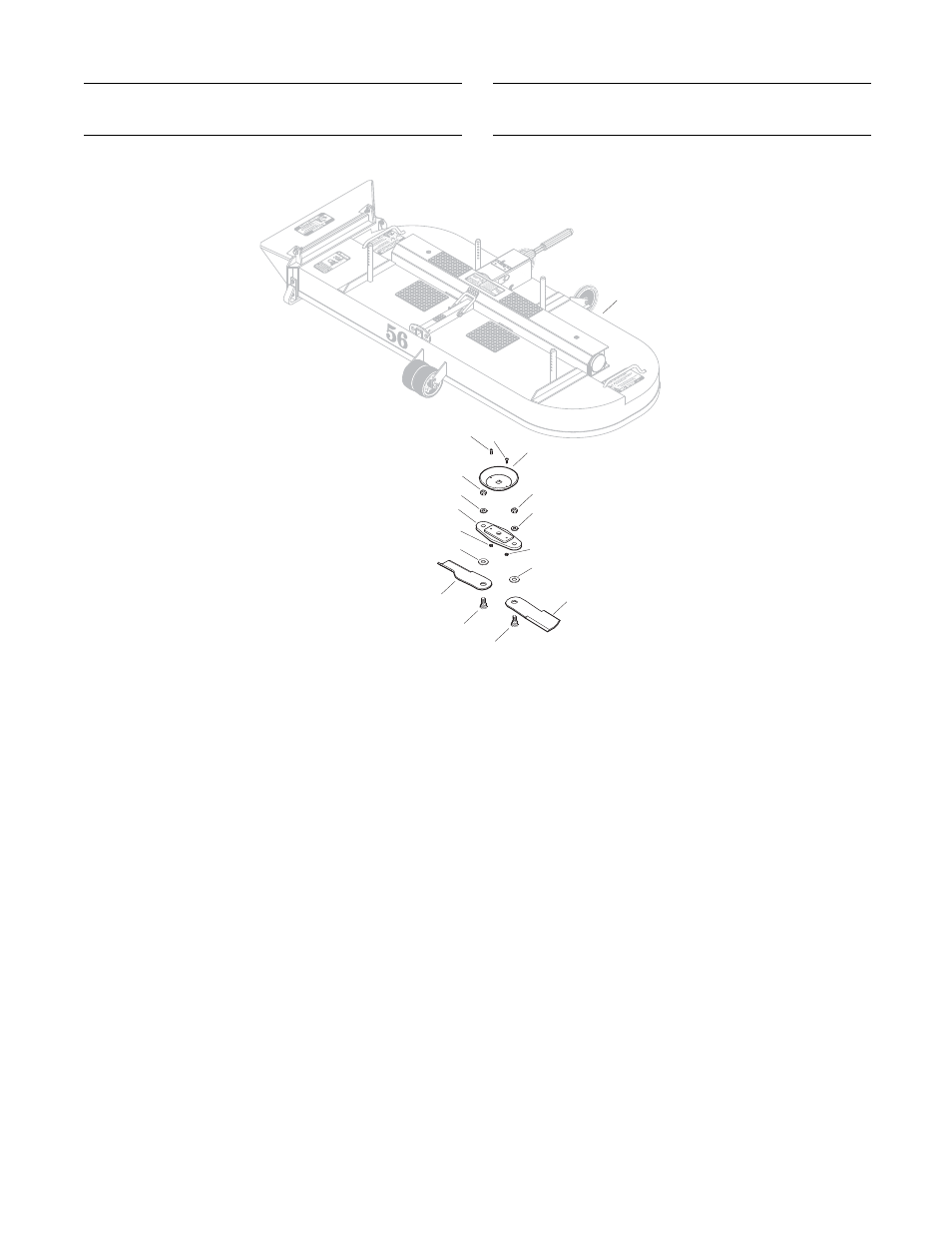

OPTIONAL BREAK-AWAY BLADES
DSD 42" Break-Away Blade Kit (5705-33)
1
5706
Blade Hub & Trash Guard
2
2
5706-27
Blade Hub, 42"
2
3
5705-30
Break Away Blade
4
4
5705-17
Special Bolt (1/2-13 x 1-7/16)
4
DSD 48" Break-Away Blade Kit (7705-8)
1
5706
Blade Hub & Trash Guard
2
2
5706-25
Blade Hub, 48"
2
3
5705-30
Break Away Blade
4
4
5705-17
Special Bolt (1/2-13 x 1-7/16)
4
DSD 56" Break-Away Blade Kit (5705-32)
1
5706
Blade Hub & Trash Guard
3
2
5706-26
Blade Hub, 36, 56 & 74
3
3
5705-30
Break Away Blade
3
4
5705-17
Special Bolt (1/2-13 x 1-7/16)
6
DSD 74" Break-Away Blade Kit (5705-34)
1
5706
Blade Hub & Trash Guard
4
2
5706-26
Blade Hub, 36, 56 & 74
4
3
5705-30
Break Away Blade
4
4
5705-17
Special Bolt (1/2-13 x 1-7/16)
8
Fasteners
F002
10-24 Keps Nut
*
F016
1/2-13 Self-Locking Nut
*
F048
1/2 SAE Washer
*
F202
10-24 x 5/8 SHC Screw, GR5 SS
*
F382
Belleville Washer (.650 x 1.36)
*
*
Quantities vary
NOTE: Optional blade kit featuring blades mounted on a break-
away hub, for use in mowing applications with lots of
ground and debris contact, to minimize impact and shock
loading.
NOTE: Break-Away blades are designed for use on Side
Discharge decks only.
EV
ERY
GREASE
HRS.
5846
25
1
3
3
4
4
2
F202
F016
F202
F016
F382
F002
F382
F002
Refer to DSD56
DECK ASSEMBLY,
Page 42
F048
F048
