Weider 831.159360 - Manual (Page 23)

23
4
3
2
7
7
8
8
6
2
5 4
3
2
Base— 10
6
1—Low Pulley
1—High Pulley
Long Cable (86)
Medium Cable (23)
Rear Upright— 1
9—Weight Stack
9
Short Cable (58)
5

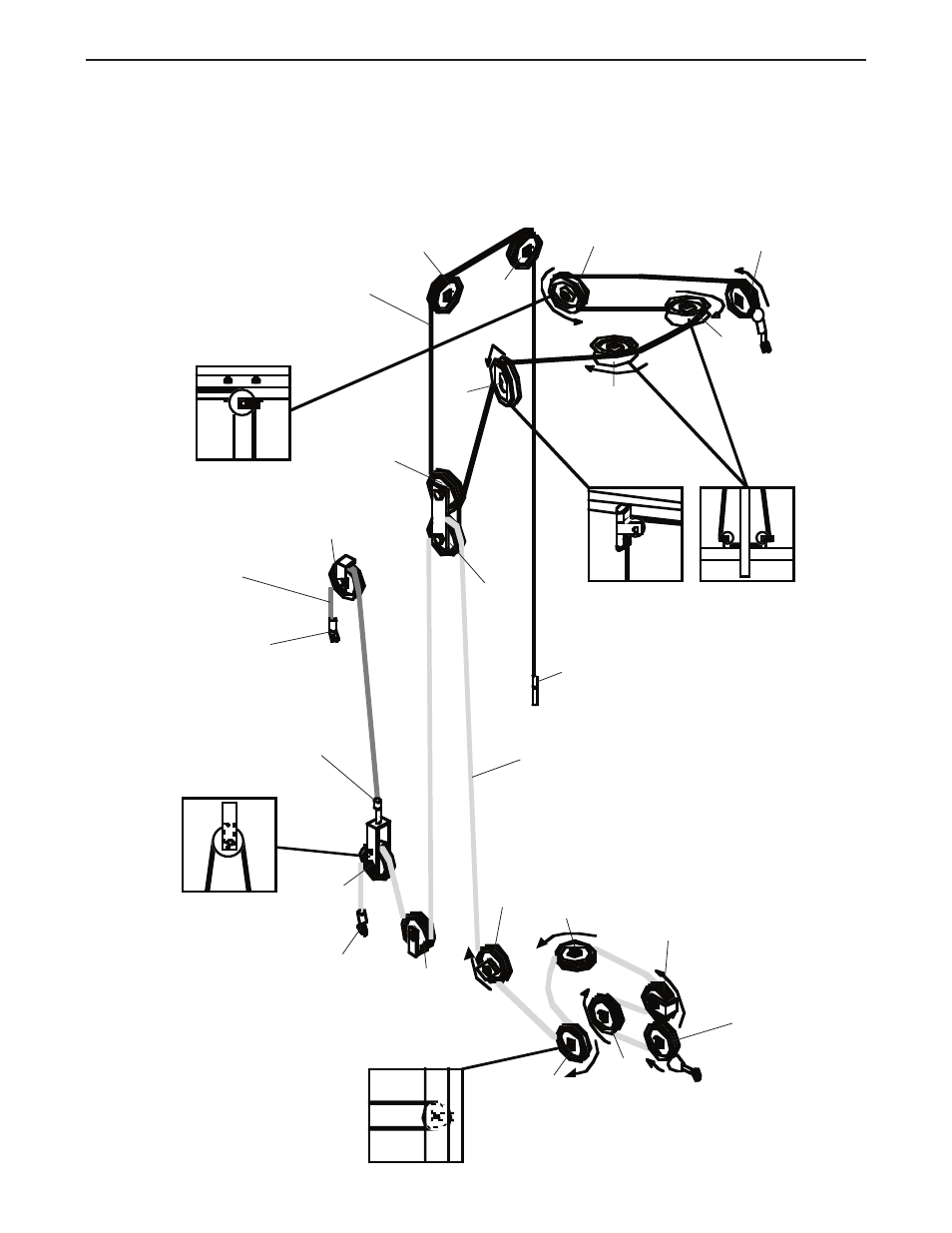

CABLE DIAGRAM
The cable diagram below shows the proper routing of the Short Cable (58), the Medium Cable (23), and the
Long Cable (86). Use the diagram to be sure that the three cables and the cable traps have been assembled
correctly. If the cables have not been correctly routed, the home gym system will not function properly and dam-
age may occur. The numbers show the correct route for each cable. The starting and ending points of each cable
are labeled.
Be sure that the cable traps do not touch or bind the cables.
Long “U”-Bracket— 3
